MIRROR

0001 1 0002 1

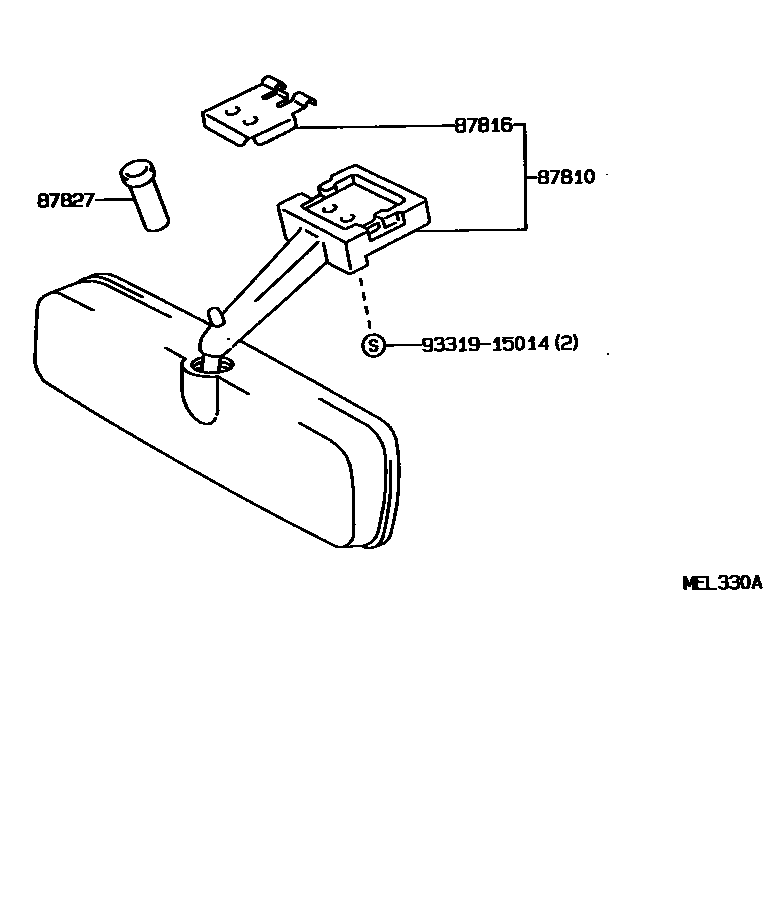

87810MIRROR ASSY, INNER REAR VIEW

main87810-14170-02iMA70..ARL,GEN,V198808-199008

MAROON,TRIM3#

main87810-14170-03iMA70..C,EUR,GEN,V198901-198908

MEDIUM GRAY,TRIM1#

main87810-14170-04iMA70198808-199305

DEEP BLUE,TRIM8#

main87810-14170-06iMA70..ARL,C,EUR,GEN198808-198901

BROWN,TRIM4#

main87810-14170-13iMA70199008-199305

SHADOW GRAY,TRIM1#

main87810-14170-22iMA70..ARL,GEN,V199008-199305

DEEP RED,TRIM3#

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030iMA70198808-199108

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-12020iMA70198808-199108

9331915014

main93319-15014

4 parts on this diagram · 2 diagrams in section
