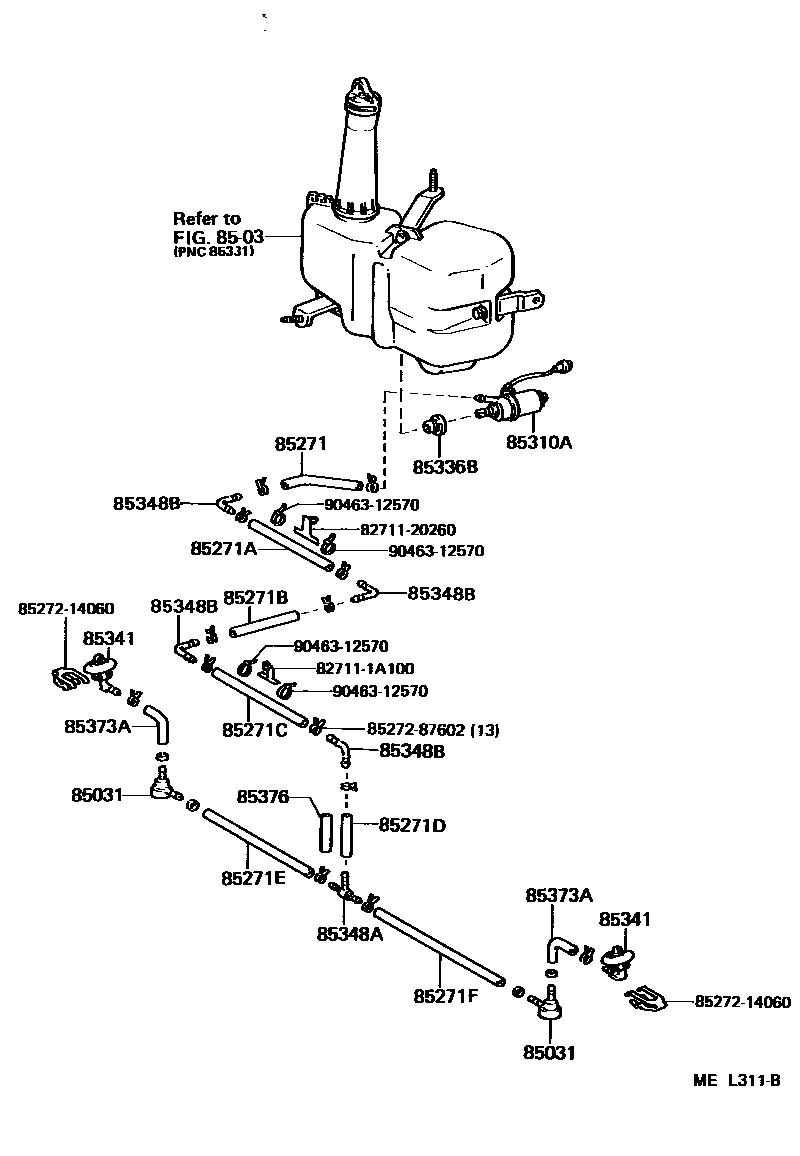

HEADLAMP CLEANER

8503

85031VALVE, HEADLAMP CLEANER WASHER HOSE

main85031-30020iMA70..C,EUR198808-199305

85271HOSE, HEADLAMP CLEANER, NO.1

main85271-12020iMA70..C,EUR198808-199305

85271AHOSE, HEADLAMP CLEANER, NO.2

main90445-14035iMA70..C,EUR198808-199305

L=280

sub90445-14056

85271BHOSE, HEADLAMP CLEANER, NO.3

main90445-14059iMA70..C,EUR198808-199305

L=190

85271CHOSE, HEADLAMP CLEANER, NO.4

main85375-22061iMA70..C,EUR198808-199305

L=640

85271DHOSE, HEADLAMP CLEANER, NO.5

main85375-20190iMA70..C,EUR198808-199305

L=90

85271EHOSE, HEADLAMP CLEANER, NO.6

main85375-22061iMA70..C,EUR198808-199305

L=640

85271FHOSE, HEADLAMP CLEANER, NO.7

main85375-22061iMA70..C,EUR198808-199305

L=640

85310AMOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER

main85310-14100iMA70..C,EUR198808-199305

85336BPACKING, HEADLAMP CLEANER WASHER

main85336-10010iMA70..C,EUR198808-199305

85341NOZZLE, HEADLAMP CLEANER WASHER

main85044-14010iMA70..C,EUR198808-199305

RH

main85045-14010iMA70..C,EUR198808-199305

LH

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

main85352-12010iMA70..C,EUR198808-199305

85348BJOINT, HEADLAMP CLEANER HOSE, NO.2

main85379-22080iMA70..C,EUR198808-199305

85373AHOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)

main85375-32011iMA70..C,EUR198808-199305

L=35

85376PROTECTOR, HEADLAMP CLEANER HOSE, NO.1

main85376-22150iMA70..C,EUR198808-199305

827111A100WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A100

8271120260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-20260

8527214060CABLE SUB-ASSY, HEADLAMP CLEANER, RH

main85272-14060

8527287602CABLE SUB-ASSY, HEADLAMP CLEANER, RH

main85272-87602

9046312570

main90463-12570

21 parts on this diagram · 1 diagram in section
