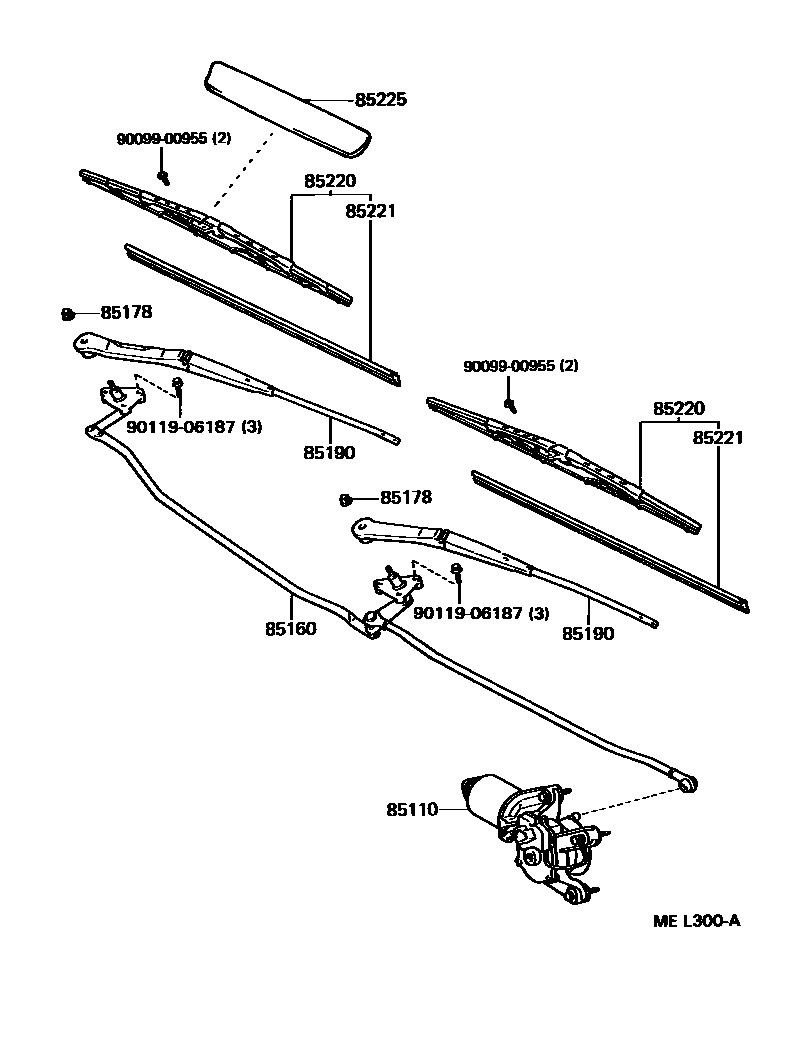

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-14212iMA70..RHD..GEN198808-198904

main85110-14213iMA70..RHD..GEN198904-199305

sub85110-14302

main85110-14272iMA70..LHD..(GEN,V)198808-199305

main85110-14322iMA70..LHD..(C,EUR)198808-199305

main85110-14340iMA70..RHD..(ARL,C,EUR)198808-199305

85160LINK ASSY, WINDSHIELD WIPER

main85160-14320iMA70..RHD..(ARL,GEN)198808-199305

main85160-14330iMA70..LHD198808-199305

main85160-14340iMA70..RHD..(C,EUR)198808-199305

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08040×2iMA70198808-199305

sub90176-08051

85190ARM ASSY, WINDSHIELD WIPER

main85190-14700iMA70..LHD..(GEN,V)198808-199305

LH

main85190-14710iMA70..RHD..(C,EUR)198808-198911

RH

main85190-14711iMA70..RHD..C198911-199305

RH

main85190-14720iMA70..LHD..(C,EUR)198808-199305

LH

main85190-14740iMA70..RHD..GEN198808-198911

RH

main85190-14741iMA70..RHD..GEN198911-199305

RH

main85190-14750iMA70..ARL198808-198911

RH

main85190-14751iMA70..ARL198911-199305

RH

main85210-14260iMA70..RHD..(ARL,GEN)198808-198911

LH

main85210-14261iMA70..RHD..(ARL,GEN)198911-199012

LH

main85210-14262iMA70..RHD..(ARL,GEN)199012-199305

LH

main85210-14270iMA70..LHD..(GEN,V)198808-199305

RH

main85210-14280iMA70..RHD..(C,EUR)198808-198911

LH

main85210-14281iMA70..RHD..C198911-199305

LH

main85210-14290iMA70..LHD..(C,EUR)198808-199305

RH

85220BLADE ASSY, WINDSHIELD WIPER

main85212-24050iMA70..RHD..GEN198911-199305

RH

sub85212-12290

main85220-16550iMA70..RHD..(ARL,GEN)198808-198911

LH

main85220-16551iMA70..RHD..(ARL,GEN)198911-199305

LH

main85220-16860iMA70..RHD..(C,EUR)198808-198911

LH

main85220-16861iMA70..RHD..C198911-199305

LH

main85220-1A020iMA70..LHD198808-199305

RH

main85220-32540iMA70..RHD..GEN198808-198911

RH

main85220-32590iMA70..ARL198808-198911

RH

main85220-32591iMA70..ARL198911-199305

RH

main85220-32840iMA70..RHD..(C,EUR)198808-198911

RH

main85220-32841iMA70..RHD..C198911-199305

RH

sub85220-32731

main85220-32850iMA70..LHD..(C,EUR)198808-199305

LH

sub85220-3A050

main85220-32860iMA70..LHD..(GEN,V)198808-199305

LH

sub85220-3A050

85221BLADE, WINDSHIELD WIPER

main85221-14270iMA70..RHD..(ARL,GEN)198808-199305

LH

main85221-14280iMA70..RHD..(C,EUR)198808-199305

LH

main85221-14290iMA70..LHD..(C,EUR)198808-199305

LH

sub85213-12280

main85221-24040iMA70..RHD..GEN198808-199305

RH

sub85214-24H90

main85221-32050iMA70..LHD..(GEN,V)198808-199305

LH

sub85214-24H90

85225WING, WIPER BLADE

main85225-14710iMA70..RHD..(C,EUR)198808-199305

main85225-14720iMA70..LHD..(C,EUR)198808-199305

9009900955

main90099-00955

9011906187

main90119-06187

9 parts on this diagram · 1 diagram in section
