ABS & VSC

82125CWIRE, TRANSMISSION

main82125-14050iMA70..4FC..(C,EUR)198808-199305

88263ARELAY, SKID CONTROL

main88263-14110iMA70..C,EUR198808-199305

MOTOR RELAY

main88263-14120iMA70..C,EUR198808-199305

SOLENOID

89411SENSOR, SPEED

main89542-14010iMA70..C,EUR198808-199305

FR-RH

main89543-14010iMA70..C,EUR198808-199305

FR-LH

89540COMPUTER ASSY, SKID CONTROL

main89541-14020iMA70..C,EUR198808-199305

89544SENSOR, SKID CONTROL

main89544-14010iMA70..5F..TWC..(C,EUR)198808-199305

main89544-14020iMA70..5F..TWT..C198808-199305

main89544-14030iMA70..4FC..(C,EUR)198808-199305

89544ARING, O (FOR SKID CONTROL SENSOR)

main90301-11008iMA70..4FC..(C,EUR)198808-199305

main96721-19015iMA70..5F..TWT..C198808-199305

main96721-24014iMA70..5F..TWC..(C,EUR)198808-199305

sub96743-24014

89548ROTOR, SKID CONTROL SENSOR

main89548-14010iMA70..4FC..(C,EUR)198808-199305

89548AKEY, WOODRUFF (FOR SKID CONTROL SENSOR ROTOR)

main90280-03005iMA70..4FC..(C,EUR)198808-199305

89549BRACKET, SKID CONTROL COMPUTER

main88267-14110iMA70..RHD..(C,EUR)198808-199305

NO.1

main88267-14120iMA70..LHD..(C,EUR)198808-199305

NO.1

main88268-14110iMA70..RHD..(C,EUR)198808-199305

NO.2

main88268-14120iMA70..LHD..(C,EUR)198808-199305

NO.2

main88269-14110iMA70..RHD..(C,EUR)198808-199305

NO.3

main88269-14120iMA70..LHD..(C,EUR)198808-199305

NO.3

3348530020PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30020

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9010508116

main90105-08116

9018905019

main90189-05019

9165140612

main91651-40612

9165140820

main91651-40820

9165160820

main91651-60820

9331915008

main93319-15008

9356755016

main93567-55016

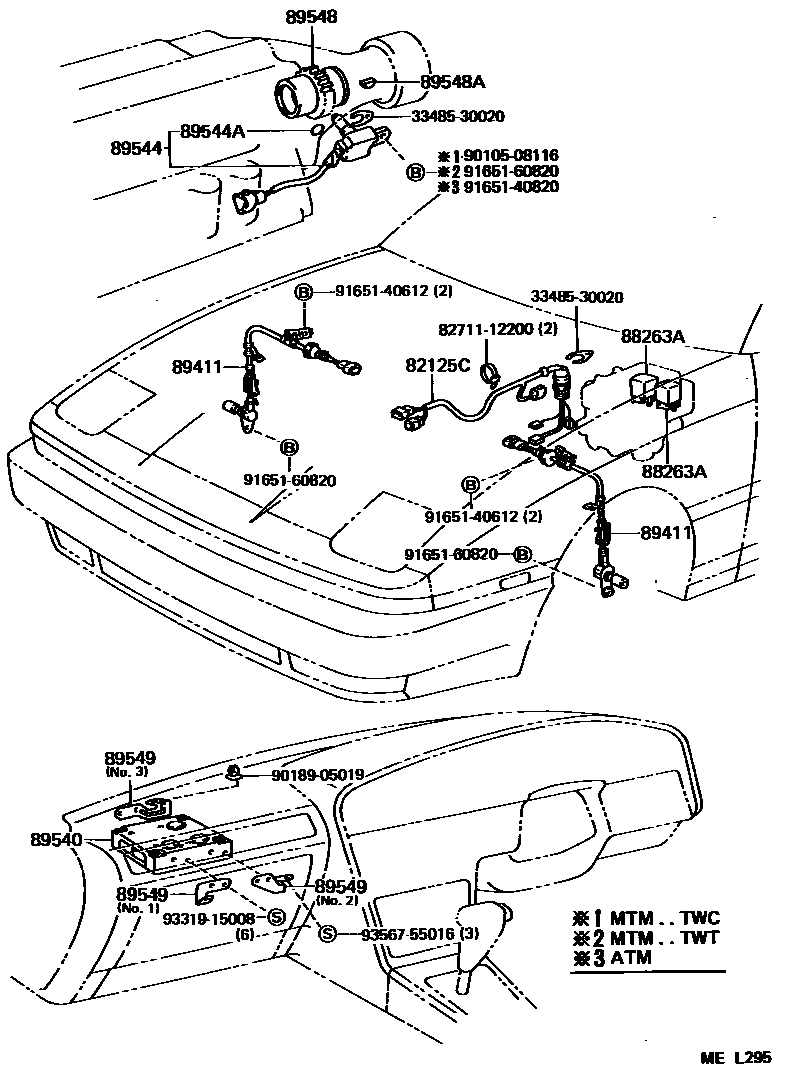

18 parts on this diagram · 1 diagram in section
