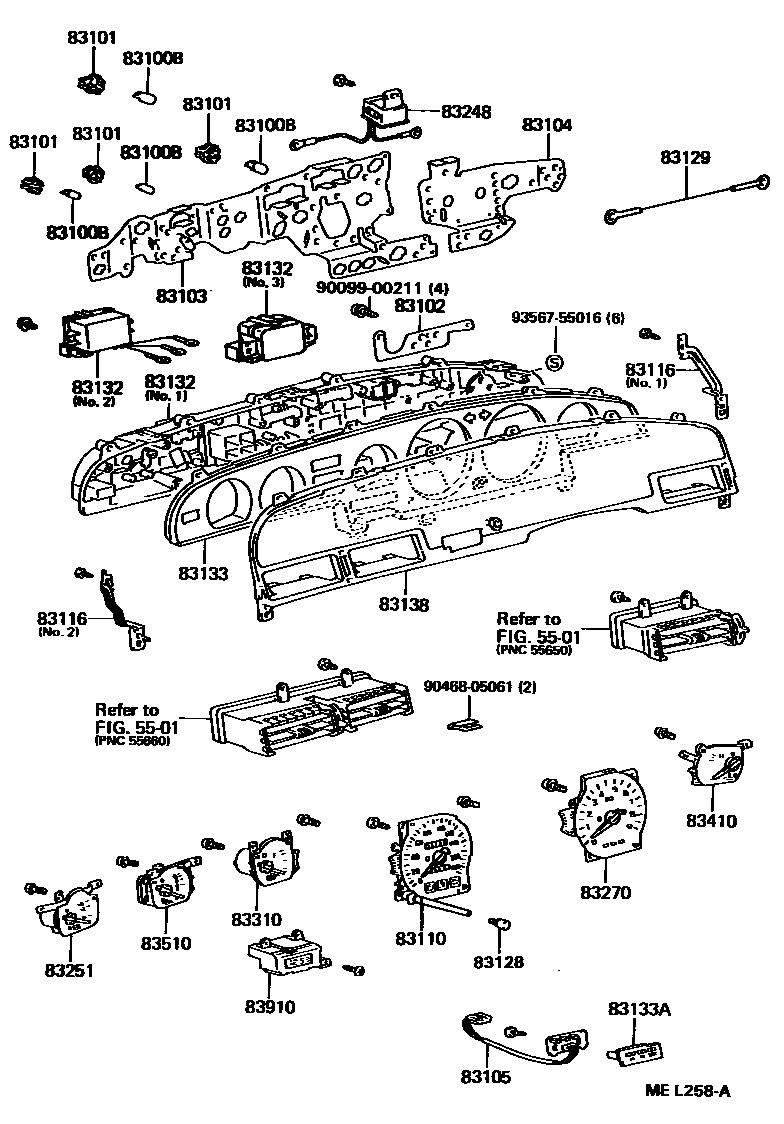

METER
5501
83100BBULB, COMBINATION METER, NO.1
12V 1.4W,GREEN CAP,SOCKET=83101-14040
12V3.4W W(GREEN CAP),SOCKET=83101-14030
12V 1.2W W/O SOCKET,SOCKET=83101-14040
12V 3.4W,SOCKET=83101-14030
83101SOCKET SUB-ASSY, COMBINATION METER BULB
BULB=12V 3.4W
BULB=12V 1.4W
83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83103PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2
W(TEMS)
W/O(REAR FOG LAMP WARNING)
W(TEMS)
W(TEMS)
W(REAR FOG LAMP)
W/O(REAR FOG LAMP WARNING)
83104PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.3
83105PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.4
83110SPEEDOMETER ASSY
W/O(REAR FOG LAMP WARNING)
W(REAR FOG LAMP)
SOUTH AFRICA SPEC
MILE & KM
MILE & KM
83116BRACKET, SPEEDOMETER
NO.1
NO.2
NO.1
NO.2
83128KNOB, TRIP COUNTER
83129WIRE, METER
L=90
L=240
83132CASE, COMBINATION METER
NO.1
NO.1
NO.1
NO.1
NO.1
NO.1
NO.2
NO.1
NO.1
NO.1
NO.1
NO.1
NO.1
NO.1
NO.1
W/O(REAR FOG LAMP WARNING),NO.1
W/O(REAR FOG LAMP WARNING),NO.1
W(REAR FOG LAMP WARNING),NO.1
W(REAR FOG LAMP WARNING),NO.1
NO.3
NO.1
NO.1
NO.1
NO.1
NO.1
NO.1
NO.2
83133PLATE, COMBINATION METER, NO.1
W(TEMS)
W(TEMS)
83133APLATE, COMBINATION METER, NO.2
83248CHIME, SPEED WARNING
83251METER, VOLTAGE
83270TACHOMETER ASSY, ENGINE
83310GAGE ASSY, FUEL RECEIVER
83410GAGE ASSY, WATER TEMPERATURE RECEIVER
83510GAGE ASSY, OIL PRESSURE RECEIVER
W(SPEEDMATER = MILE & KM)
SOUTH AFRICA SPEC
9009900211
main90099-00211
9046805061
main90468-05061
9356755016
main93567-55016
25 parts on this diagram · 4 diagrams in section
