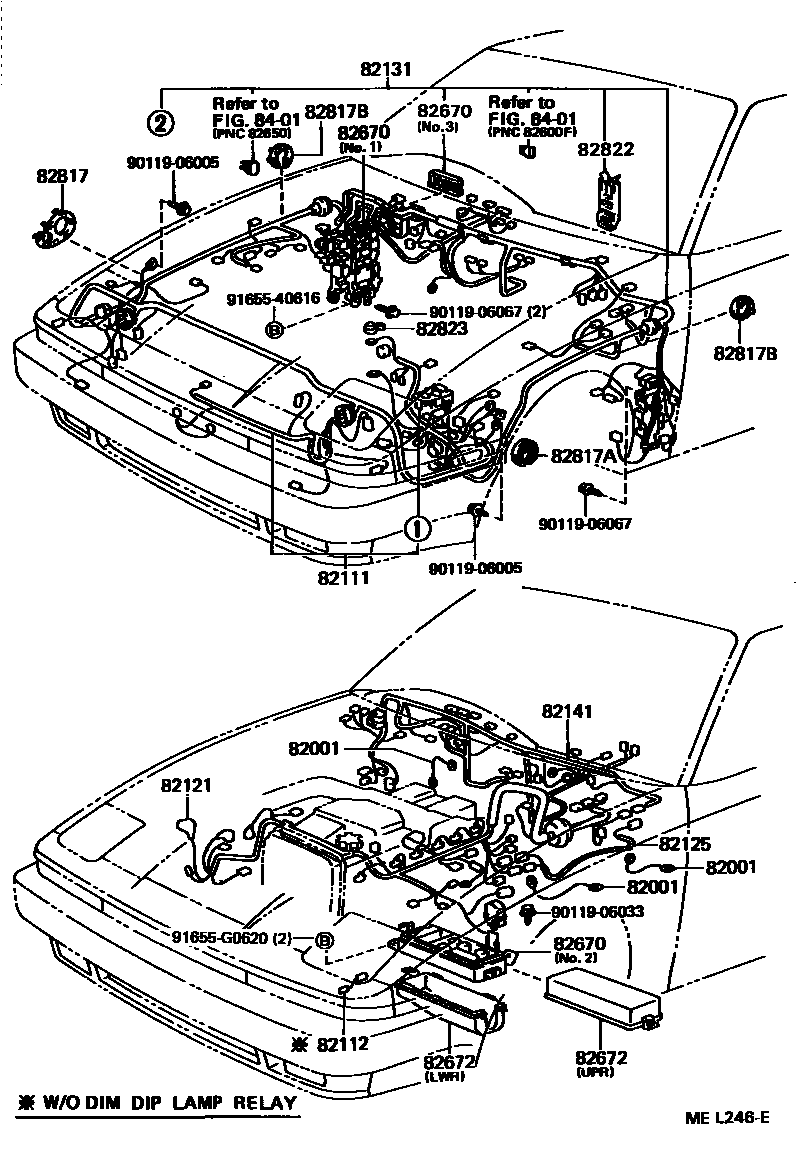

WIRING & CLAMP
82001CABLE, BOND, NO.1
TO EXTENSION
TO CLUTCH
TO EXTENSION
TO ENGINE
82111WIRE, ENGINE ROOM MAIN
*FRG
*FRG
82112WIRE, ENGINE ROOM, NO.2
82121WIRE, ENGINE
82125WIRE, TRANSMISSION
82131WIRE, COWL
UNITED KINGDOM SPEC
SWEDEN SPEC OR NORWAY SPEC
SWEDEN SPEC OR NORWAY SPEC
82141WIRE, INSTRUMENT PANEL
SWEDEN SPEC OR NORWAY SPEC
SWEDEN SPEC OR NORWAY SPEC
82670BLOCK ASSY, JUNCTION, NO.1
NO.3
NO.1
NO.2
82672COVER, JUNKTION BLOCK
UPR
UPR
LWR
82817PROTECTOR, WIRING HARNESS, NO.1
82817APROTECTOR, WIRING HARNESS, NO.2
82817BPROTECTOR, WIRING HARNESS, NO.3
82822BRACKET,CONNECTOR BLOCK
82823CAP, TERMINAL, NO.1
8401
9011906005
main90119-06005
9011906033
main90119-06033
9011906067
main90119-06067
9165540616
main91655-40616
91655G0620
main91655-G0620
20 parts on this diagram · 7 diagrams in section
