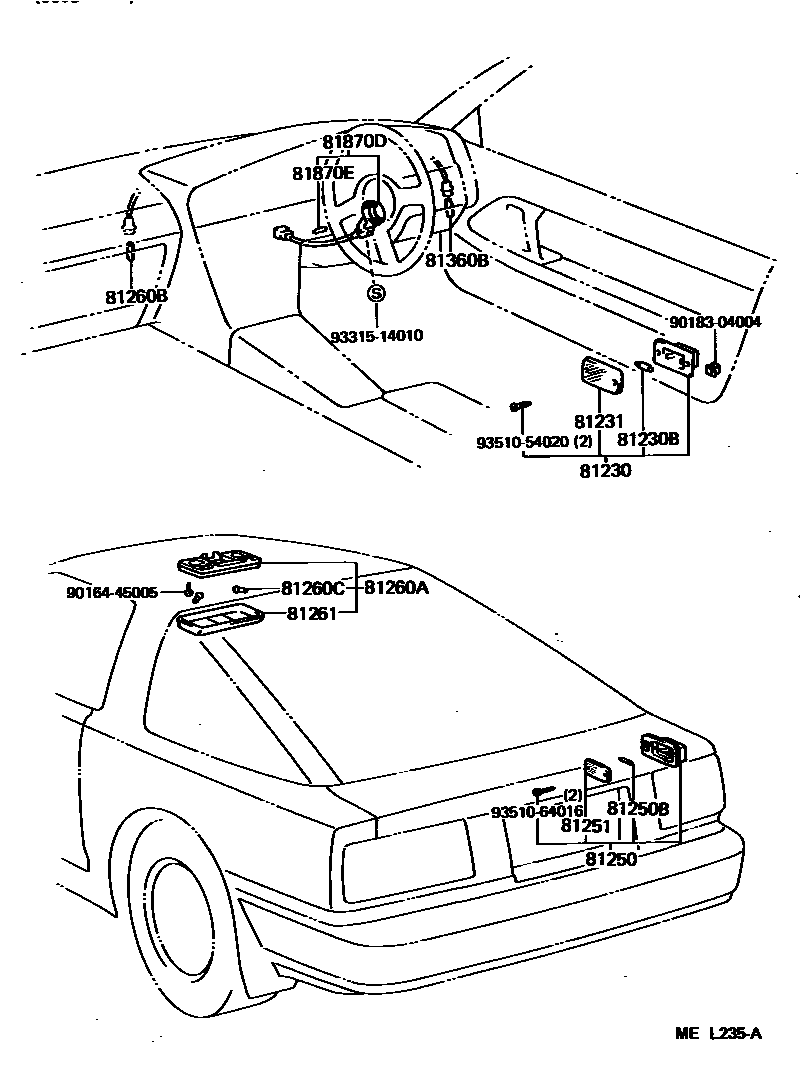

INTERIOR LAMP

81230LAMP ASSY, COURTESY

main81230-14040×2iMA70199108-199305

81230BBULB(FOR COURTESY LAMP)

main99132-13050×2iMA70198808-199108

12V 5W

81231LENS, COURTESY LAMP

main81231-30100×2iMA70198808-199108

81250LAMP ASSY, ROOM, NO.2

main81250-14030-13iMA70199008-199305

GRAY,TRIM1#

main81250-14030-24iMA70198808-199305

DEEP BLUE,TRIM8#

main81250-14030-32iMA70..ARL,GEN,V198808-199008

MAROON,TRIM3#

main81250-14030-33iMA70198908-199008

MEDIUM GRAY,TRIM1#

main81250-14030-36iMA70..ARL,C,EUR,GEN198808-198901

BROWN,TRIM4#

main81250-14030-42iMA70..ARL,GEN,V199008-199305

DEEP RED,TRIM3#

81250BBULB, ROOM LAMP, NO.2

main90981-11021iMA70198808-199108

12V 5W

81251LENS, ROOM LAMP, NO.2

main81251-14030iMA70198808-199108

81260ALAMP ASSY, MAP

main81260-14070-02iMA70..ARL,GEN,V198808-199008

MAROON,TRIM3#

main81260-14070-03iMA70198808-198901

MEDIUM GRAY,TRIM1#

main81260-14070-04iMA70198808-199305

DEEP BLUE,TRIM8#

main81260-14070-06iMA70..C,EUR,GEN198901-198908

BROWN,TRIM4#

main81260-14070-12iMA70..ARL,GEN,V199008-199305

DEEP RED,TRIM3#

main81260-14070-13iMA70199008-199305

SHADOW GRAY,TRIM1#

main81260-14070-16iMA70..LHD..C199008-199108

LIGHT TAN,TRIM4#

81260BBULB(FOR GLOVE BOX)

main90981-11014iMA70198808-199305

14V 1.4W

81260CBULB(FOR MAP LAMP)

main90981-12005×2iMA70198808-199108

12V 8W

81261LENS AND COVER, MAP LAMP

main81261-14070-02iMA70..ARL,GEN,V198808-199008

MAROON,TRIM3#

main81261-14070-03iMA70198808-198901

MEDIUM GRAY,TRIM1#

main81261-14070-04iMA70198808-199305

DEEP BLUE,TRIM8#

main81261-14070-06iMA70..ARL,C,EUR,GEN198808-198901

BROWN,TRIM4#

main81261-14070-12iMA70..ARL,GEN,V199008-199305

DEEP RED,TRIM3#

main81261-14070-13iMA70199008-199305

SHADOW GRAY,TRIM1#

main81261-14070-16iMA70..LHD..C199008-199108

LIGHT TAN,TRIM4#

81360BBULB, STEP OR SPOT LAMP

main90981-11014iMA70198808-199305

14V 1.4W

81870DLAMP ASSY, KEY CYLINDER

main81870-14010iMA70..RHD..5F..C;MA70..4FC..TWT..C;MA70..LHD..5F..TWT;MA70..ARL,EUR,GEN,V198808-199305

81870EBULB, KEY CYLINDER LAMP

main90981-11018iMA70..RHD..5F..C;MA70..4FC..TWT..C;MA70..LHD..5F..TWT;MA70..ARL,EUR,GEN,V198808-199305

12V 1.2W W/O SOCKET

9016445005

main90164-45005

9018304004

main90183-04004

9331514010

main93315-14010

9351054020

main93510-54020

9351064016

main93510-64016

18 parts on this diagram · 1 diagram in section
