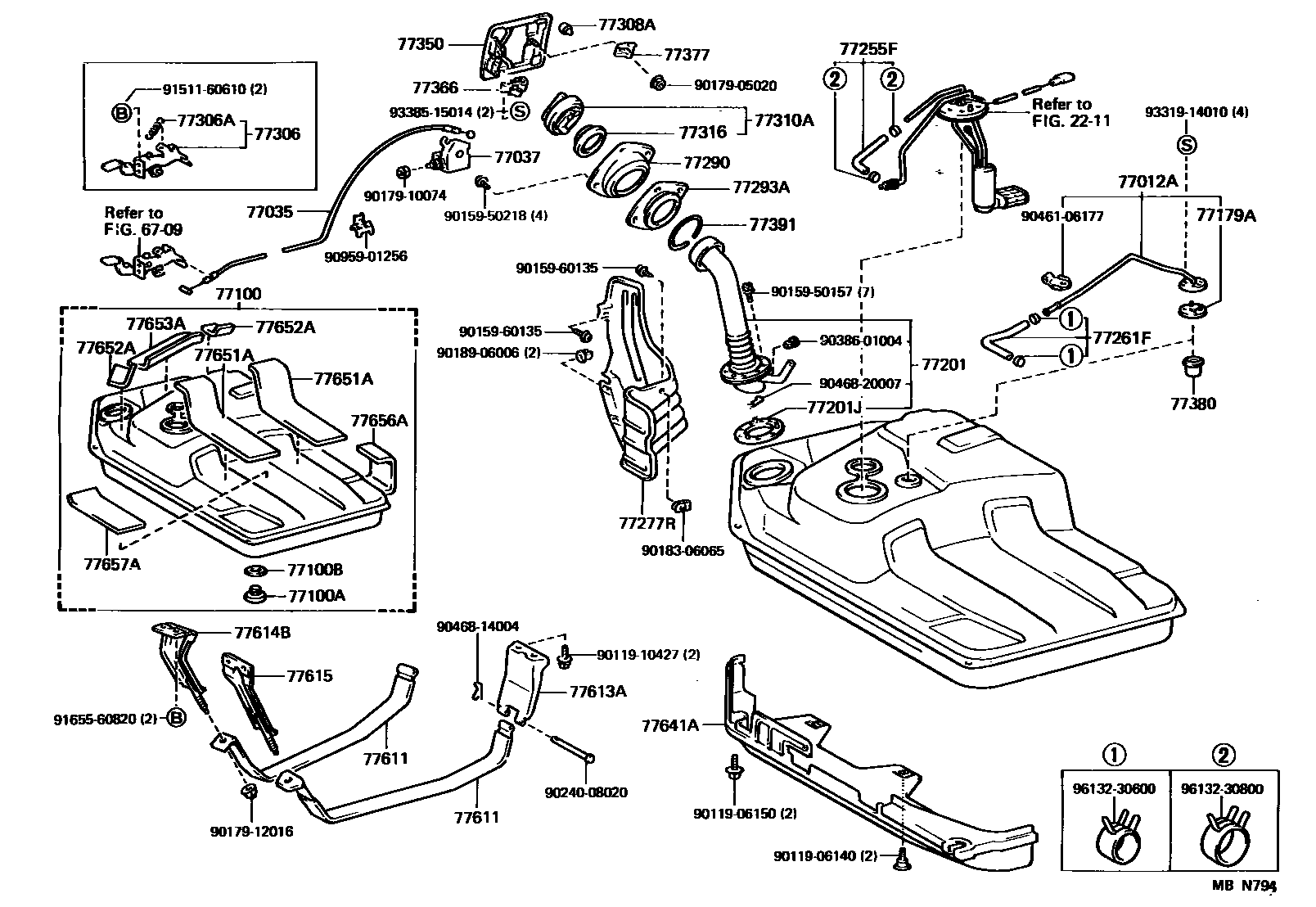

FUEL TANK & TUBE
2211
6709
77012ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.1
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77037LOCK SUB-ASSY, FUEL FILLER OPENING LID
77100TANK ASSY, FUEL
77100APLUG(FOR FUEL TANK)
77100BGASKET(FOR FUEL TANK)
77179AGASKET, FUEL TANK BREATHER TUBE
77201PIPE SUB-ASSY, FUEL TANK INLET
77201JGASKET(FOR FUEL TANK INLET PIPE)
77255FHOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
77261FHOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
77277RPROTECTOR, FUEL TANK FILLER PIPE
77290SHIELD ASSY, FUEL TANK FILLER PIPE
NEW ZEALAND SPEC
77293ASHIELD, FUEL TANK FILLER PIPE, NO.3
77306LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306ASPRING, FUEL LID OPEN LEVER
77308ACUSHION(FOR FUEL INLET BOX COVER)
77310ACAP ASSY, FUEL TANK
NEW ZEALAND SPEC
77316GASKET, FUEL TANK CAP
NEW ZEALAND SPEC
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77380VALVE ASSY, FUEL CUT OFF
77391RING, FUEL INLET BOX
77611BAND, FUEL TANK
RH
LH
77613ABRACKET, FUEL TANK BAND, NO.1
77614BBRACKET, FUEL TANK BAND, NO.2
77615BRACKET, FUEL TANK BAND, NO.3
77641APROTECTOR, FUEL TANK, NO.1
77651ACUSHION, FUEL TANK, NO.1
77652ACUSHION, FUEL TANK, NO.2
77653ACUSHION, FUEL TANK, NO.3
77656ACUSHION, FUEL TANK, NO.4
77657ACUSHION, FUEL TANK, NO.5
9011906140
9011906150
9011910427
9015950157
9015950218
9015960135
9017905020
9017910074
9017912016
9018306065
9018906006
9024008020
9038601004
9046106177
9046814004
9046820007
9095901256
9151160610
9165560820
9331914010
9338515014
9613230600
9613230800
59 parts on this diagram · 4 diagrams in section
