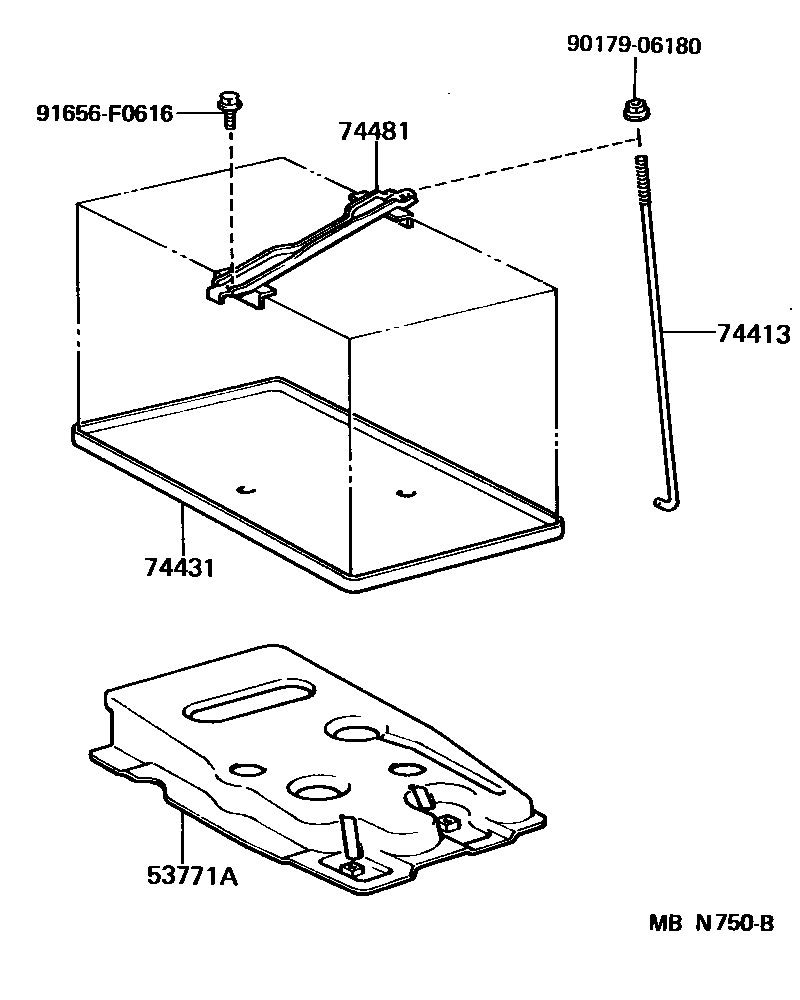

BATTERY CARRIER

53771ASUPPORT, BATTERY CARRIER

main53771-14120iMA70198808-199305

74413BOLT, BATTERY CLAMP

main74451-14010iMA70198808-199012

main74451-22030iMA70199012-199305

74431TRAY, BATTERY

main74431-14030iMA70..TWC;MA70..TWT..C198808-199305

sub74431-52040

main74431-14060iMA70..TWT..ARL198808-199305

COLD SPEC

sub74431-22070

74481CLAMP, BATTERY HOLD DOWN

main74404-14310iMA70198808-199305

9017906180

main90179-06180

91656F0616

main91656-F0616

6 parts on this diagram · 1 diagram in section
