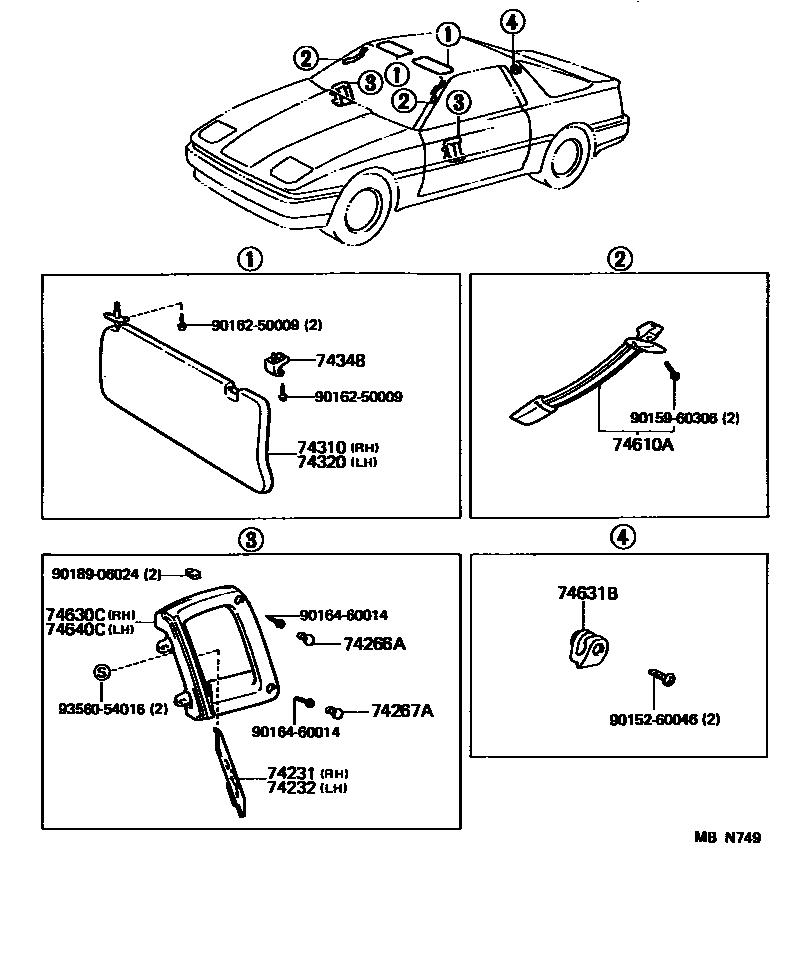

ARMREST & VISOR

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-14101-02iMA70..LHD..(GEN,V)198808-199008

MAROON,TRIM3#

main74231-14101-03iMA70..LHD198808-199008

MEDIUM GRAY,TRIM1#

main74231-14101-04iMA70..LHD198808-199305

DEEP BLUE,TRIM8#

main74231-14101-06iMA70..LHD..(C,EUR,GEN)198808-198908

BROWN,TRIM4#

main74231-14101-12iMA70..LHD..TWC199008-199305

DEEP RED,TRIM3#

main74231-14101-13iMA70..LHD199008-199305

SHADOW GRAY,TRIM1#

main74231-14111-02iMA70..RHD..(ARL,GEN)198808-199008

MAROON,TRIM3#

main74231-14111-03iMA70..RHD198808-198901

MEDIUM GRAY,TRIM1#

main74231-14111-04iMA70..RHD198808-199305

DEEP BLUE,TRIM8#

main74231-14111-06iMA70..RHD198808-198901

BROWN,TRIM4#

main74231-14111-12iMA70..RHD..(ARL,GEN)199008-199305

DEEP RED,TRIM3#

main74231-14111-13iMA70..RHD199008-199305

SHADOW GRAY,TRIM1#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-14091-02iMA70..LHD..(GEN,V)198808-199008

MAROON,TRIM3#

main74232-14091-03iMA70..LHD198808-199008

MEDIUM GRAY,TRIM1#

main74232-14091-04iMA70..LHD198808-199305

DEEP BLUE,TRIM8#

main74232-14091-06iMA70..LHD198908-199008

BROWN,TRIM4#

main74232-14091-12iMA70..LHD..TWC199008-199305

DEEP RED,TRIM3#

main74232-14091-13iMA70..LHD199008-199305

SHADOW GRAY,TRIM1#

main74232-14101-02iMA70..RHD..(ARL,GEN)198808-199008

MAROON,TRIM3#

main74232-14101-03iMA70..RHD198808-198901

MEDIUM GRAY,TRIM1#

main74232-14101-04iMA70..RHD198808-199305

DEEP BLUE,TRIM8#

main74232-14101-06iMA70..RHD198908-199008

BROWN,TRIM4#

main74232-14101-12iMA70..RHD..(ARL,GEN)199008-199305

DEEP RED,TRIM3#

main74232-14101-13iMA70..RHD199008-199305

SHADOW GRAY,TRIM1#

74266ACAP, DOOR ARMREST, NO.1

main74266-14041-02×2iMA70..ARL,GEN,V198808-199008

MAROON,TRIM3#

main74266-14041-03×2iMA70198808-198901

MEDIUM GRAY,TRIM1#

main74266-14041-04×2iMA70198808-199305

DEEP BLUE,TRIM8#

main74266-14041-06×2iMA70..C,EUR,GEN198901-198908

BROWN,TRIM4#

main74266-14041-12×2iMA70..ARL,GEN,V199008-199305

DEEP RED,TRIM3#

main74266-14041-13×2iMA70199008-199305

SHADOW GRAY,TRIM1#

74267ACAP, DOOR ARMREST, NO.2

main74267-14021-02×2iMA70..ARL,GEN,V198808-199008

MAROON,TRIM3#

main74267-14021-03×2iMA70198808-198901

MEDIUM GRAY,TRIM1#

main74267-14021-04×2iMA70198808-199305

DEEP BLUE,TRIM8#

main74267-14021-06×2iMA70..ARL,C,EUR,GEN198808-198901

BROWN,TRIM4#

main74267-14021-12×2iMA70..ARL,GEN,V199008-199305

DEEP RED,TRIM3#

main74267-14021-13×2iMA70199008-199305

SHADOW GRAY,TRIM1#

74310VISOR ASSY, RH

main74310-14410-02iMA70..LHD..(GEN,V)198808-199008

MAROON,TRIM3#

main74310-14410-03iMA70..LHD198808-199008

MEDIUM GRAY,TRIM1#

main74310-14410-04iMA70..LHD198808-199008

DEEP BLUE,TRIM8#

main74310-14410-06iMA70..LHD..(C,EUR,GEN)198808-198908

BROWN,TRIM4#

main74310-14460-02iMA70..RHD..(ARL,GEN)198808-199008

MAROON,TRIM3#

main74310-14460-03iMA70..LHD..TWT198808-199008

SWEDEN SPEC,MEDIUM GRAY,TRIM1#

main74310-14460-04iMA70..RHD198808-199008

DEEP BLUE,TRIM8#

main74310-14460-06iMA70..LHD..TWT198808-199008

SWEDEN SPEC,BROWN,TRIM4#

main74310-14520-02iMA70..RHD..GEN199008-199305

DEEP RED,TRIM3#

main74310-14520-03iMA70..LHD..C199008-199305

SWEDEN SPEC,SHADOW GRAY,TRIM1#

main74310-14520-04iMA70..LHD..C199008-199305

DEEP BLUE,TRIM8#

main74310-14530-B0iMA70..LHD199108-199305

SHADOW GRAY,TRIM1#

main74310-14530-D0iMA70..LHD..TWC199008-199305

DEEP RED,TRIM3#

main74310-14530-J0iMA70..LHD199008-199305

DEEP BLUE,TRIM8#

main74310-14550-02iMA70..ARL199008-199305

DEEP RED,TRIM3#

main74310-14550-03iMA70..ARL199008-199305

SHADOW GRAY,TRIM1#

main74310-14550-04iMA70..ARL199008-199305

LIGHT TAN,TRIM8#

74320VISOR ASSY, LH

main74320-14490-02iMA70..LHD..(GEN,V)198808-199008

MAROON,TRIM3#

main74320-14490-03iMA70..LHD198808-199008

MEDIUM GRAY,TRIM1#

main74320-14490-04iMA70..LHD198808-199008

DEEP BLUE,TRIM8#

main74320-14490-06iMA70..LHD..(C,EUR,GEN)198808-198908

BROWN,TRIM4#

main74320-14540-02iMA70..RHD..(ARL,GEN)198808-199008

MAROON,TRIM3#

main74320-14540-03iMA70..RHD198808-198901

MEDIUM GRAY,TRIM1#

main74320-14540-04iMA70..RHD198808-199008

DEEP BLUE,TRIM8#

main74320-14540-06iMA70..RHD..(C,EUR,GEN)198901-198908

BROWN,TRIM4#

main74320-14610-02iMA70..RHD..GEN199008-199305

DEEP RED,TRIM3#

main74320-14610-03iMA70..RHD..(C,GEN)199008-199305

SHADOW GRAY,TRIM1#

main74320-14610-04iMA70..RHD..(C,GEN)199008-199305

DEEP BLUE,TRIM8#

main74320-14620-B0iMA70..LHD199108-199305

SHADOW GRAY,TRIM1#

main74320-14620-D0iMA70..LHD..TWC199008-199305

DEEP RED,TRIM3#

main74320-14620-J0iMA70..LHD199008-199305

DEEP BLUE,TRIM8#

main74320-14650-02iMA70..ARL199008-199305

DEEP RED,TRIM3#

main74320-14650-03iMA70..ARL199008-199305

SHADOW GRAY,TRIM1#

main74320-14650-04iMA70..ARL199008-199305

LIGHT TAN,TRIM8#

74348HOLDER, VISOR

main74348-12020-02×2iMA70..ARL,GEN,V198908-199008

MAROON,TRIM3#

sub74348-60010

sub74348-26020

main74348-12020-13×2iMA70198908-199008

MEDIUM GRAY,TRIM1#

sub74348-60010

sub74348-26020

main74348-12020-36×2iMA70198908-199008

BROWN,TRIM4#

sub74348-60010

sub74348-26020

main74348-12020-42×2iMA70..ARL,GEN,V199008-199305

RED,TRIM3#

sub74348-60010

sub74348-26020

main74348-12020-44×2iMA70198908-199305

DARK BLUE,TRIM8#

sub74348-60010

sub74348-26020

main74348-12020-46×2iMA70..LHD..C199008-199108

LIGHT TAN,TRIM4#

sub74348-60010

sub74348-26020

main74348-12020-53×2iMA70199008-199305

SHADOW GRAY,TRIM1#

sub74348-60010

sub74348-26020

main74348-20020-12×2iMA70..ARL,GEN,V198808-198908

MAROON,TRIM3#

main74348-20020-13×2iMA70198808-198901

MEDIUM GRAY,TRIM1#

main74348-20020-14×2iMA70198808-198908

DEEP BLUE,TRIM8#

main74348-20020-46×2iMA70..C,EUR,GEN198901-198908

BROWN,TRIM4#

74610AGRIP SUB-ASSY, ASSIST

main74610-24020-02×2iMA70..ARL,GEN,V198808-199008

MAROON,TRIM3#

main74610-24020-03×2iMA70198808-198901

MEDIUM GRAY,TRIM1#

main74610-24020-04×2iMA70198808-199305

DEEP BLUE,TRIM8#

main74610-24020-12×2iMA70..ARL,GEN,V199008-199305

DEEP RED,TRIM3#

main74610-24020-13×2iMA70199008-199305

SHADOW GRAY,TRIM1#

main74610-24020-16×2iMA70..ARL,C,EUR,GEN198808-198901

BROWN,TRIM4#

74630CGRIP ASSY, DOOR ASSIST, RH

main74630-14021-02iMA70..ARL,GEN,V198808-199008

MAROON,TRIM3#

main74630-14021-03iMA70198908-199008

MEDIUM GRAY,TRIM1#

main74630-14021-04iMA70198808-199305

DEEP BLUE,TRIM8#

main74630-14021-06iMA70..ARL,C,EUR,GEN198808-198901

BROWN,TRIM4#

main74630-14021-12iMA70..ARL,GEN,V199008-199305

DEEP RED,TRIM3#

main74630-14021-13iMA70199008-199305

SHADOW GRAY,TRIM1#

74631BHOOK, COAT

main74631-14020-02×2iMA70..ARL,GEN,V198808-199008

MAROON,TRIM3#

main74631-14020-03×2iMA70198908-199008

MEDIUM GRAY,TRIM1#

main74631-14020-04×2iMA70198808-199305

DEEP BLUE,TRIM8#

main74631-14020-06×2iMA70..C,EUR,GEN198901-198908

BROWN,TRIM4#

main74631-14020-12×2iMA70..ARL,GEN,V199008-199305

DEEP RED,TRIM3#

main74631-14020-13×2iMA70199008-199305

SHADOW GRAY,TRIM1#

74640CGRIP ASSY, DOOR ASSIST, LH

main74640-14011-02iMA70..ARL,GEN,V198808-199008

MAROON,TRIM3#

main74640-14011-03iMA70..C,EUR,GEN,V198901-198908

MEDIUM GRAY,TRIM1#

main74640-14011-04iMA70198808-199305

DEEP BLUE,TRIM8#

main74640-14011-06iMA70198908-199008

BROWN,TRIM4#

main74640-14011-12iMA70..ARL,GEN,V199008-199305

DEEP RED,TRIM3#

main74640-14011-13iMA70199008-199305

SHADOW GRAY,TRIM1#

9015260046

main90152-60046

9015960306

main90159-60306

9016250009

main90162-50009

9016460014

main90164-60014

9018906024

main90189-06024

9356054016

main93560-54016

17 parts on this diagram · 1 diagram in section
