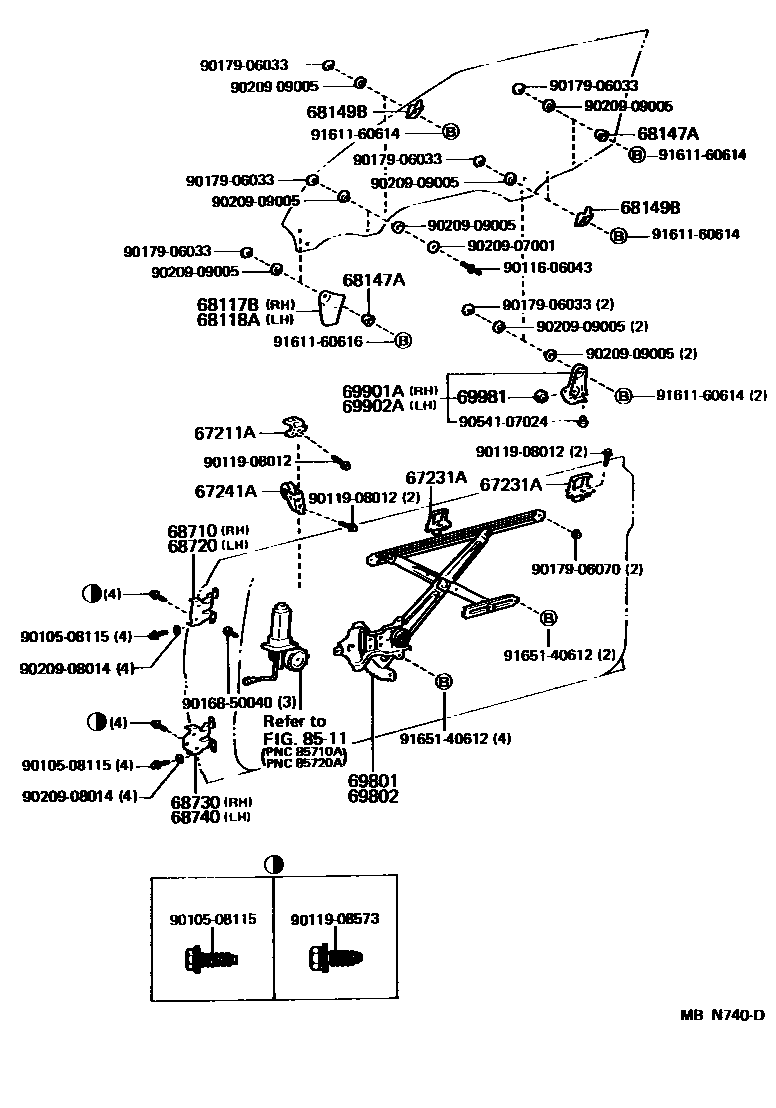

FRONT DOOR WINDOW REGULATOR & HINGE

67211ASTOP, FRONT DOOR WINDOW, UPPER

main67211-20020×4iMA70198808-199305

67231ASUPPORT, FRONT DOOR TRIM

main67231-20020×2iMA70198808-199305

RH

main67232-20020×2iMA70198808-199305

LH

67241ASTABILIZER, DOOR GLASS, INNER

main67241-14020×2iMA70198808-198905

main67241-14021×2iMA70198905-199305

68117BPLATE, FRONT DOOR GLASS, RH

main68117-14020iMA70198808-199305

68118APLATE, FRONT DOOR GLASS, LH

main68118-14020iMA70198808-199305

68147ASTOP, FRONT DOOR GLASS, UPPER

main68147-14020×4iMA70198808-199305

68149BSTABILIZER, FRONT DOOR GLASS MALE

main68149-20010×4iMA70198808-199305

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-14050iMA70198808-199305

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-14060iMA70198808-199305

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-14060iMA70198808-199305

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-14060iMA70198808-199305

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-14100iMA70198808-199305

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-14100iMA70198808-199305

69901ABRACKET SUB-ASSY, FRONT DOOR GLASS, RH

main69901-14060iMA70198808-199305

69902ABRACKET SUB-ASSY, FRONT DOOR GLASS, LH

main69902-14040iMA70198808-199305

69981ROLLER, FRONT DOOR GLASS GUIDE

main69981-14020×2iMA70198808-199305

8511

9010508115

main90105-08115

9011606043

main90116-06043

9011908012

main90119-08012

9011908573

main90119-08573

9016850040

main90168-50040

9017906033

main90179-06033

9017906070

main90179-06070

9020907001

main90209-07001

9020908014

main90209-08014

9020909005

main90209-09005

9054107024

main90541-07024

9161160614

main91611-60614

9161160616

main91611-60616

9165140612

main91651-40612

31 parts on this diagram · 1 diagram in section
