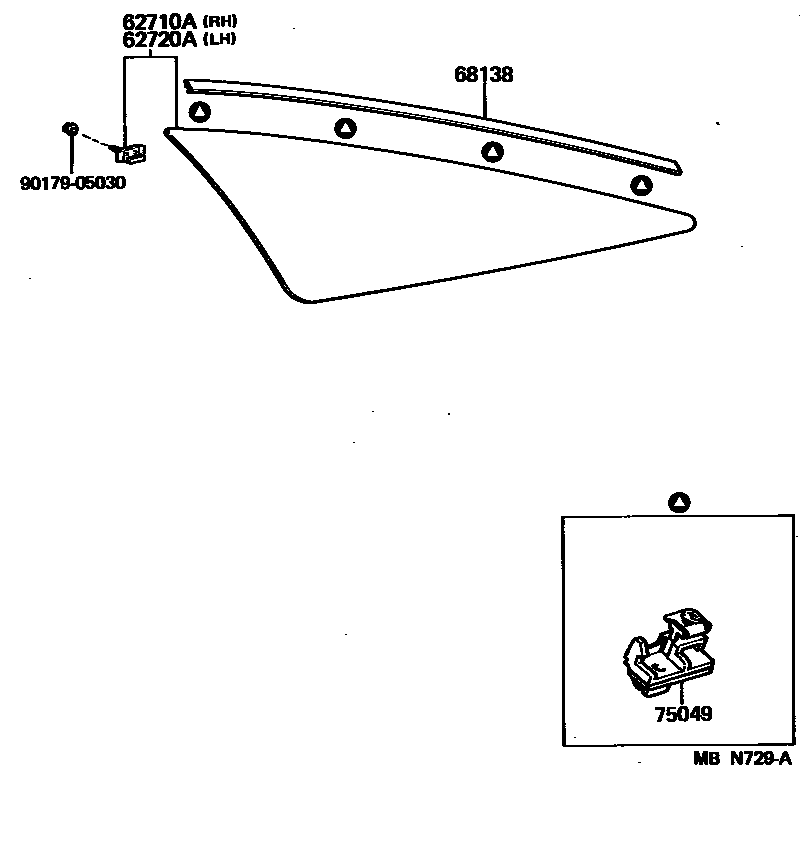

QUARTER WINDOW

62710AWINDOW ASSY, QUARTER, RH

main62710-14230iMA70198808-199305

*TT,T=3.5

62720AWINDOW ASSY, QUARTER, LH

main62720-14230iMA70198808-199305

*TT,T=3.5

68138CUSHION, QUARTER WINDOW, NO.2 UPPER

main68138-14020×2iMA70198808-199305

75049CLIP SUB-ASSY, QUARTER WINDOW, NO.2

main75049-14020×8iMA70198808-199305

9017905030

main90179-05030

5 parts on this diagram · 1 diagram in section
