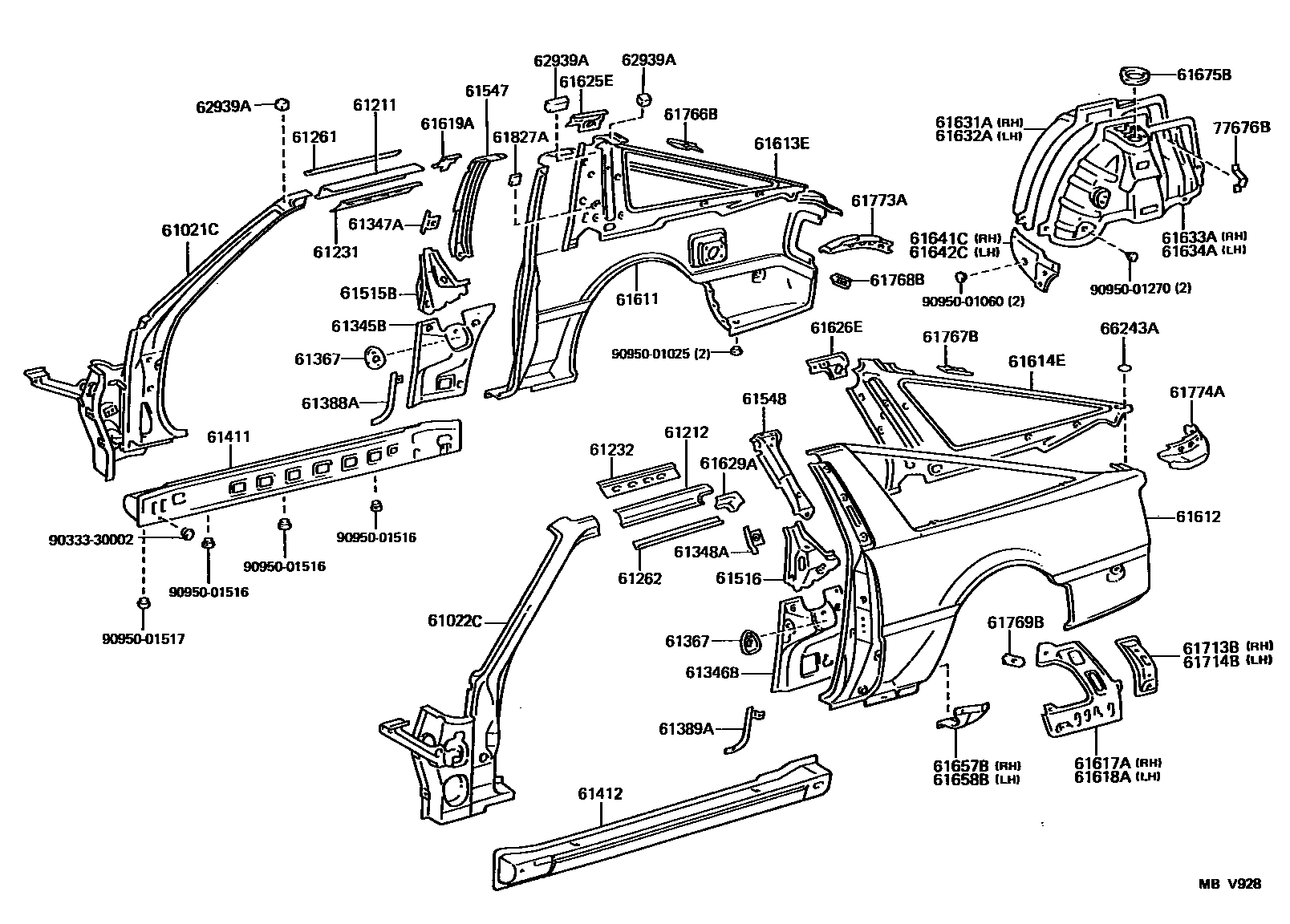

SIDE MEMBER

0001 1 0002 1

61021CPILLAR SUB-ASSY, FRONT BODY, RH

main61021-14290iMA70..RHD..SPR198808-199008

sub61021-14291

sub82819-14230

main61021-14291iMA70..RHD..SPR199008-199305

main61021-14320iMA70..LHD..SPR198808-199305

main61021-14330iMA70..RHD..LB198808-199008

sub61021-14331

sub82819-14230

main61021-14331iMA70..RHD..LB199008-199305

sub61021-14350

main61021-14340iMA70..LHD..LB198808-199305

sub61021-14360

main61021-14350iMA70..RHD..LB..(ARL,GEN)199008-199305

W(SUN ROOF)

main61021-14360iMA70..LHD..LB199008-199305

W(SUN ROOF)

61022CPILLAR SUB-ASSY, FRONT BODY, LH

main61022-14330iMA70..RHD..SPR198808-199305

main61022-14340iMA70..LHD..SPR198808-199305

main61022-14350iMA70..RHD..LB198808-199305

sub61022-14370

main61022-14360iMA70..LHD..LB198808-199305

sub61022-14380

main61022-14370iMA70..RHD..LB..(ARL,GEN)199008-199305

W(SUN ROOF)

main61022-14380iMA70..LHD..LB199008-199305

W(SUN ROOF)

61211RAIL, ROOF SIDE, OUTER RH

main61211-14150iMA70..LB198808-199305

61212RAIL, ROOF SIDE, OUTER LH

main61212-14150iMA70..LB198808-199305

61231RAIL, ROOF SIDE, INNER RH

main61231-14210iMA70..LB198808-199008

sub61231-14211

main61231-14211iMA70..LB199008-199305

61232RAIL, ROOF SIDE, INNER LH

main61232-14190iMA70..LB198808-199008

sub61232-14191

main61232-14191iMA70..LB199008-199305

61261CHANNEL, ROOF DRIP, RH

main61261-14080iMA70..LB198808-199305

61262CHANNEL, ROOF DRIP, LH

main61262-14080iMA70..LB198808-199305

61345BPILLAR, CENTER BODY, INNER LOWER RH

main61345-14030iMA70198808-199305

61346BPILLAR, CENTER BODY, INNER LOWER LH

main61346-14030iMA70198808-199305

61347AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, RH

main61347-14080iMA70198808-199305

61348AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LH

main61348-14080iMA70198808-199305

61367REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER

main61367-24010iMA70198808-199305

61388APLATE, CENTER BODY PILLAR END, RH

main61388-14010iMA70..LB198808-199305

61389APLATE, CENTER BODY PILLAR END, LH

main61389-14010iMA70..LB198808-199305

61411PANEL, ROCKER, OUTER RH

main61401-14070iMA70..SPR198808-199305

main61401-14100iMA70..LB198808-199305

61412PANEL, ROCKER, OUTER LH

main61402-14070iMA70..SPR198808-199305

main61402-14100iMA70..LB198808-199305

61515BEXTENSION, QUARTER LOCK PILLAR, RH

main61515-14010iMA70198808-199305

61516EXTENSION, QUARTER LOCK PILLAR, LH

main61516-14010iMA70198808-199305

61547REINFORCEMENT, QUARTER PILLAR, INNER RH

main61547-14010iMA70..SPR198808-199305

main61547-14020iMA70..LB198808-199305

61548REINFORCEMENT, QUARTER PILLAR, INNER LH

main61548-14010iMA70..SPR198808-199305

main61548-14020iMA70..LB198808-199305

61611PANEL, QUARTER, RH

main61601-1B914iMA70..LB..(ARL,C,GEN)198808-199305

main61601-1B915iMA70..LB..V198808-199305

W(REAR SPOILER)

main61601-1B918iMA70..SPR198808-199305

main61601-1B919iMA70..SPR..V198808-199305

W(REAR SPOILER)

61612PANEL, QUARTER, LH

main61602-1B915iMA70..LB198808-199305

main61602-1B916iMA70..LB..(C,GEN)198808-199305

W(REAR SPOILER)

main61602-1B916iMA70..LB..ARL199008-199108

main61602-1B919iMA70..SPR198808-199305

main61602-1B920iMA70..SPR..(ARL,V)198808-199305

W(REAR SPOILER)

main61602-1B920iMA70..SPR..ARL199008-199108

61613EPANEL, QUARTER, INNER RH

main61613-14130iMA70198808-199108

sub61613-14131

main61613-14131iMA70199108-199305

61614EPANEL, QUARTER, INNER LH

main61614-14130iMA70198808-199108

sub61614-14131

main61614-14131iMA70199108-199305

61617APANEL, QUARTER INNER, REAR RH

main61617-14080iMA70198808-199305

61618APANEL, QUARTER, INNER REAR LH

main61618-14090iMA70198808-199305

61619AREINFORCEMENT, QUARTER PANEL

main61619-14040iMA70..LB198808-199305

61625EEXTENSION, QUARTER PANEL, INNER REAR RH

main61625-14050iMA70..SPR198808-199305

main61625-14060iMA70..LB198808-199008

sub61625-14061

main61625-14061iMA70..LB199008-199305

61626EEXTENSION, QUARTER PANEL, INNER REAR LH

main61626-14050iMA70..SPR198808-199305

main61626-14060iMA70..LB198808-199008

sub61626-14061

main61626-14061iMA70..LB199008-199305

61629AREINFORCEMENT, QUARTER PANEL, LH

main61629-14040iMA70..LB198808-199305

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-14180iMA70198808-199305

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-14180iMA70198808-199305

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-14907iMA70198808-199305

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-14908iMA70198808-199305

61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH

main61641-14030iMA70198808-199305

61642CGUSSET, QUARTER WHEEL HOUSE, FRONT LH

main61642-14020iMA70198808-199305

61657BHOUSING, QUARTER PANEL END, LOWER RH

main61657-14050iMA70198808-199305

61658BHOUSING, QUARTER PANEL END, LOWER LH

main61658-14040iMA70198808-199305

61675BREINFORCEMENT, REAR SUSPENSION SPRING SUPPORT

main61675-14040iMA70198808-199305

61713BREINFORCE, ROOF SIDE, OUTER RH

main61713-14020iMA70198808-199305

61714BREINFORCE, ROOF SIDE, OUTER LH

main61714-14020iMA70198808-199305

61766BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH

main61766-14050iMA70198808-199305

61767BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH

main61767-14060iMA70198808-199305

61768BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH

main61768-32010iMA70198808-199305

61769BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH

main61768-32010iMA70198808-199305

61773APATCH, BACK DOOR OPENING, LOWER RH

main61773-14020iMA70198808-199108

sub61773-14021

main61773-14021iMA70199108-199305

61774APATCH, BACK DOOR OPENING, LOWER LH

main61774-14020iMA70198808-199305

61827APLATE, NOISE CONTROL, NO.4

main61827-14010iMA70..LB198808-199305

62939ASILENCER, QUARTER VENT

main62939-14030iMA70198808-199305

66243APROTECTOR, REAR BODY, NO.1

main66243-20010iMA70198808-199305

77676BBRACKET, FUEL TANK FILLER PIPE PROTECTOR, NO.2

main77676-14020iMA70198808-199305

9033330002

main90333-30002

9095001025

main90950-01025

9095001060

main90950-01060

9095001270

main90950-01270

9095001516

main90950-01516

9095001517

main90950-01517

58 parts on this diagram · 2 diagrams in section
