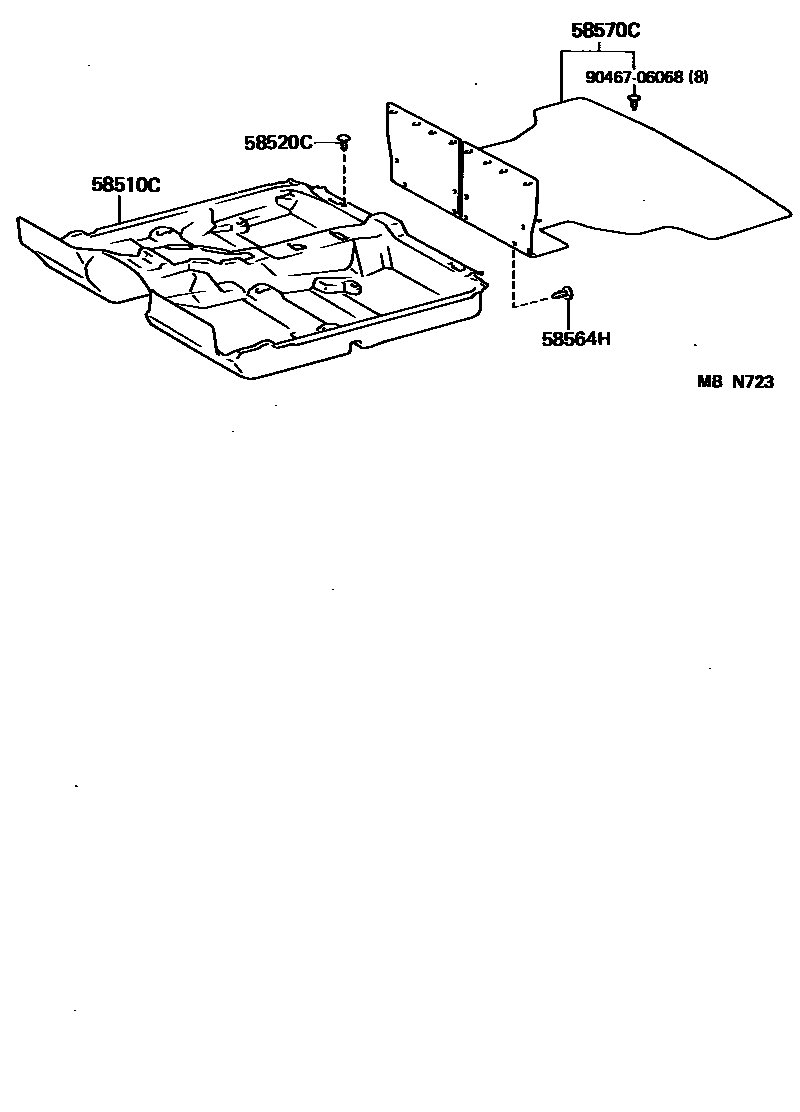

MAT & CARPET

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-1B010-02iMA70..LHD..(GEN,V)198808-199008

MAROON,TRIM3#

main58510-1B010-03iMA70..LHD198808-199008

MEDIUM GRAY,TRIM1#

main58510-1B010-04iMA70..LHD198808-199305

DEEP BLUE,TRIM8#

main58510-1B010-06iMA70..LHD..(C,EUR,GEN)198808-198908

BROWN,TRIM4#

main58510-1B010-12iMA70..LHD..TWC199008-199305

DEEP RED,TRIM3#

main58510-1B010-13iMA70..LHD199008-199305

SHADOW GRAY,TRIM1#

main58510-1B010-16iMA70..LHD..C199008-199108

TAN,TRIM4#

main58510-1B020-02iMA70..RHD..(ARL,GEN)198808-199008

MAROON,TRIM3#

main58510-1B020-03iMA70..RHD198908-199008

MEDIUM GRAY,TRIM1#

main58510-1B020-04iMA70..RHD198808-199305

DEEP BLUE,TRIM8#

main58510-1B020-06iMA70..RHD198908-199008

BROWN,TRIM4#

main58510-1B020-12iMA70..RHD..(ARL,GEN)199008-199305

DEEP RED,TRIM3#

main58510-1B020-13iMA70..RHD199008-199305

SHADOW GRAY,TRIM1#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06016-11×2iMA70..ARL,GEN,V198908-198910

BLACK,TRIM1#,3#,4#,8#

sub90467-07049

58564HCLIP(FOR REAR FLOOR CARPET)

main90467-06070-02×10iMA70..ARL,GEN,V198808-198908

MAROON,TRIM3#

main90467-06070-03×10iMA70198808-198901

MEDIUM GRAY,TRIM1#

main90467-06070-04×10iMA70198808-198908

DEEP BLUE,TRIM8#

main90467-06070-06×10iMA70..C,GEN,V;MA70..4FC..ARL198908-199008

BROWN,TRIM4#

main90467-06070-22×10iMA70..GEN,V;MA70..4FC..ARL199008-199305

DEEP RED,TRIM3#

main90467-06070-23×10iMA70..C,GEN,V;MA70..4FC..ARL199008-199305

SHADOW GRAY,TRIM1#

58570CCARPET ASSY, REAR FLOOR

main58570-14290-02iMA70..GEN,V;MA70..4FC..ARL198908-199008

MAROON,TRIM3#

main58570-14290-03iMA70198808-198901

MEDIUM GRAY,TRIM1#

main58570-14290-04iMA70198808-198908

DEEP BLUE,TRIM8#

main58570-14290-06iMA70..C,GEN,V;MA70..4FC..ARL198908-199008

BROWN,TRIM4#

main58570-14290-12iMA70..GEN,V;MA70..4FC..ARL199008-199305

DEEP RED,TRIM3#

main58570-14290-13iMA70..C,GEN,V;MA70..4FC..ARL199008-199305

SHADOW GRAY,TRIM1#

9046706068

main90467-06068

5 parts on this diagram · 1 diagram in section
