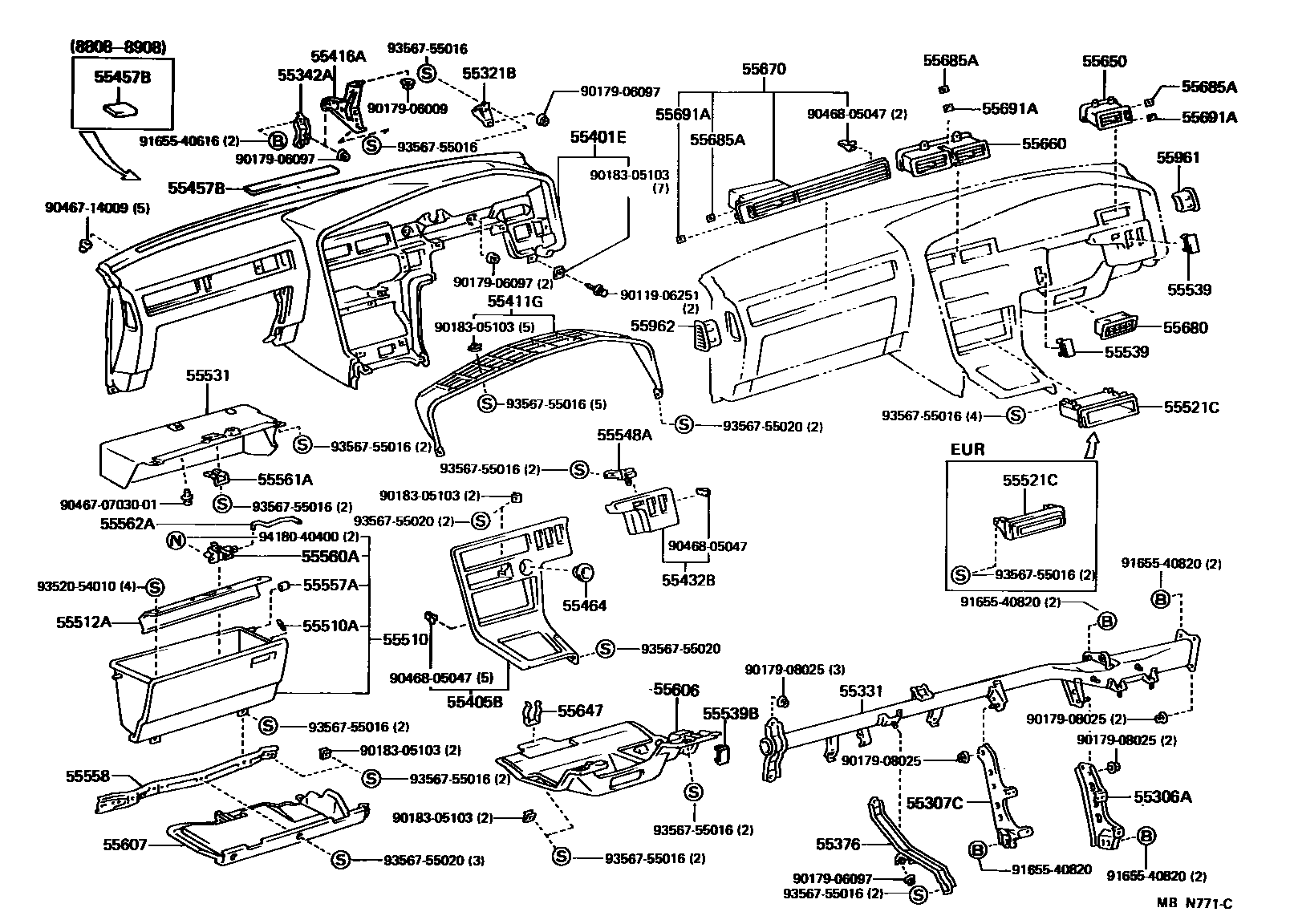

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-14060iMA70..RHD¥1,810198808-199305

main55306-14090iMA70..LHD¥1,830198808-198908

main55351-14130iMA70..LHD¥2,090198908-199305

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-14130iMA70..RHD¥2,350198808-199305

main55307-14140iMA70..LHD¥2,350198808-199305

55321BBRACKET, INSTRUMENT PANEL, NO.1

main55321-14050iMA70..RHD¥510198808-199305

main55321-14060iMA70..LHD¥510198808-199305

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-14040iMA70..RHD¥16,300198808-199305

main55330-14050iMA70..LHD¥16,700198808-198908

main55330-14051iMA70..LHD¥16,300198908-199305

55342ABRACE, INSTRUMENT PANEL TO COWL, NO.2

main55342-14040iMA70¥510198808-199305

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-14030iMA70..RHD¥1,440198808-199305

main55376-14040iMA70..LHD¥1,440198808-199305

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-14480-02iMA70..RHD..(ARL,GEN)198808-199008

MAROON,TRIM3#

main55401-14480-03iMA70..RHD198808-199008

MEDIUM GRAY,TRIM1#

main55401-14480-04iMA70..RHD198808-199305

DEEP BLUE,TRIM8#

main55401-14480-06iMA70..RHD198808-199008

BROWN,TRIM4#

main55401-14480-12iMA70..RHD..(ARL,GEN)199008-199305

DEEP RED,TRIM3#

main55401-14480-13iMA70..RHD199008-199305

SHADOW GRAY,TRIM1#

main55401-14490-02iMA70..LHD..(GEN,V)198808-199008

MAROON,TRIM3#

main55401-14490-03iMA70..LHD198808-199008

MEDIUM GRAY,TRIM1#

main55401-14490-04iMA70..LHD198808-199305

DEEP BLUE,TRIM8#

main55401-14490-06iMA70..LHD..(C,EUR,GEN)198808-199108

BROWN,TRIM4#

main55401-14490-12iMA70..LHD..TWC199008-199305

DEEP RED,TRIM3#

main55401-14490-13iMA70..LHD199008-199305

SHADOW GRAY,TRIM1#

55405BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER

main55405-14100iMA70..RHD¥18,100198808-199305

main55405-14110iMA70..LHD¥18,100198808-199305

55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1

main55411-14530iMA70..RHD¥6,700198808-199305

main55411-14540iMA70..LHD¥6,700198808-199305

55416ARETAINER, METER HOOD, NO.1

main55416-14060iMA70..RHD¥1,280198808-199305

main55416-14070iMA70..LHD¥1,280198808-199305

55432BPANEL, INSTRUMENT PANEL FINISH, LOWER

main55432-14220iMA70..RHD¥2,490198808-199305

main55432-14240iMA70..LHD¥2,840198808-199305

55457BSPACER, INSTRUMENT PANEL SAFETY PAD

main55355-14060iMA70¥190198904-199305

main55457-22030iMA70¥190198808-198904

55464BASE, CIGARETTE LIGHTER

main55477-24020iMA70¥1,430198808-199305

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-14160-02iMA70..RHD..(ARL,GEN)198808-199008

MAROON,TRIM3#

main55550-14160-03iMA70..RHD198808-199008

MEDIUM GRAY,TRIM1#

main55550-14160-04iMA70..RHD198808-199305

DEEP BLUE,TRIM8#

main55550-14160-06iMA70..RHD..(C,EUR,GEN)198808-199008

BROWN,TRIM4#

main55550-14160-12iMA70..RHD..(ARL,GEN)199008-199305

DEEP RED,TRIM3#

main55550-14160-13iMA70..RHD199008-199305

SHADOW GRAY,TRIM1#

main55550-14170-02iMA70..LHD..(GEN,V)198808-199008

MAROON,TRIM3#

main55550-14170-03iMA70..LHD198808-199008

MEDIUM GRAY,TRIM1#

main55550-14170-04iMA70..LHD198808-199305

DEEP BLUE,TRIM8#

main55550-14170-06iMA70..LHD..(C,EUR,GEN)198808-199108

BROWN,TRIM4#

main55550-14170-12iMA70..LHD..TWC199008-199305

DEEP RED,TRIM3#

main55550-14170-13iMA70..LHD199008-199305

SHADOW GRAY,TRIM1#

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main90541-03015iMA70¥110198808-199305

55512APLATE, GLOVE COMPARTMENT

main55512-14060iMA70..RHD¥2,050198808-199305

main55512-14070iMA70..LHD¥2,050198808-199305

55521CCOVER, STEREO OPENING

main55022-14010iMA70..LHD..5F..EUR;MA70..RHD..5F..(C,EUR);MA70..RHD..4FC..TWT..C;MA70..4FC..TWC..(C,EUR)¥3,910198808-199305

W(*IPM)

main55521-16010iMA70..GEN,V;MA70..LHD..C¥1,750198808-199305

sub55521-16030¥1,580

55531PANEL, GLOVE COMPARTMENT

main55531-14100iMA70..RHD¥4,460198808-199305

main55531-14110iMA70..LHD¥4,460198808-199305

55539COVER, SPARE SWITCH HOLE

main55539-14050iMA70¥470198808-199305

55539BCOVER, SPARE SWITCH HOLE, NO.2

main55539-20030-03iMA70..RHD199008-199305

GRAY,TRIM1#

sub55539-32010¥460

sub55539-20030¥590

main55539-20030-04iMA70..RHD198908-199305

DEEP BLUE,TRIM8#

sub55539-32010¥460

sub55539-20030¥590

main55539-20030-12iMA70..RHD..(ARL,GEN)198908-199008

MAROON,TRIM3#

sub55539-32010¥460

sub55539-20030¥590

main55539-20030-13iMA70..RHD198908-199008

MEDIUM GRAY,TRIM1#

sub55539-32010¥460

sub55539-20030¥590

main55539-20030-36iMA70..RHD198908-199008

BROWN,TRIM4#

sub55539-32010¥460

sub55539-20030¥590

main55539-20030-42iMA70..RHD..(ARL,GEN)199008-199305

DEEP RED,TRIM3#

sub55539-32010¥460

sub55539-20030¥590

55548ACOVER, INSTRUMENT PANEL HOLE

main55548-14040iMA70¥470198808-199305

55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK

main55557-16010iMA70¥230198808-199305

55558REINFORCEMENT, GLOVE COMPARTMENT DOOR

main55558-14021iMA70..RHD¥2,360198808-199305

main55558-14031iMA70..LHD¥2,360198808-199305

55560ALOCK ASSY, GLOVE COMPARTMENT DOOR

main55560-14030iMA70..RHD¥2,260198808-199305

main55560-14040iMA70..LHD¥2,260198808-199305

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-14060iMA70¥620198808-199305

55562ALINK, GLOVE COMPARTMENT DOOR LOCK

main55562-14030iMA70..RHD¥440198808-199305

main55562-14040iMA70..LHD¥440198808-199305

55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55606-14060-02iMA70..RHD..(ARL,GEN)198808-199008

MAROON,TRIM3#

main55606-14060-03iMA70..RHD198808-199008

MEDIUM GRAY,TRIM1#

main55606-14060-04iMA70..RHD198808-199305

DEEP BLUE,TRIM8#

main55606-14060-06iMA70..RHD198808-199008

BROWN,TRIM4#

main55606-14060-12iMA70..RHD..(ARL,GEN)199008-199305

DEEP RED,TRIM3#

main55606-14060-13iMA70..RHD199008-199305

SHADOW GRAY,TRIM1#

main55606-14070-02iMA70..LHD..(GEN,V)198808-199008

MAROON,TRIM3#

main55606-14070-03iMA70..LHD198808-199008

MEDIUM GRAY,TRIM1#

main55606-14070-04iMA70..LHD198808-199305

DEEP BLUE,TRIM8#

main55606-14070-06iMA70..LHD198808-199108

BROWN,TRIM4#

main55606-14070-12iMA70..LHD..TWC199008-199305

DEEP RED,TRIM3#

main55606-14070-13iMA70..LHD199008-199305

SHADOW GRAY,TRIM1#

55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

main55607-14090-02iMA70..RHD..(ARL,GEN)198808-199008

MAROON,TRIM3#

main55607-14090-03iMA70..RHD198808-199008

MEDIUM GRAY,TRIM1#

main55607-14090-04iMA70..RHD198808-199305

DEEP BLUE,TRIM8#

main55607-14090-06iMA70..RHD198808-199008

BROWN,TRIM4#

main55607-14090-12iMA70..RHD..(ARL,GEN)199008-199305

DEEP RED,TRIM3#

main55607-14090-13iMA70..RHD199008-199305

SHADOW GRAY,TRIM1#

main55607-14100-02iMA70..LHD..(GEN,V)198808-199008

MAROON,TRIM3#

main55607-14100-03iMA70..LHD198808-199008

MEDIUM GRAY,TRIM1#

main55607-14100-04iMA70..LHD198808-199305

DEEP BLUE,TRIM8#

main55607-14100-06iMA70..LHD..(C,EUR,GEN)198808-199108

BROWN,TRIM4#

main55607-14100-12iMA70..LHD..TWC199008-199305

DEEP RED,TRIM3#

main55607-14100-13iMA70..LHD199008-199305

SHADOW GRAY,TRIM1#

55647CLAMP, INSTRUMENT PANEL UNDER COVER

main55647-22010iMA70¥320198808-199305

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-14110iMA70..RHD¥3,600198808-199305

main55650-14120iMA70..LHD¥2,690198808-199305

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-14110iMA70..RHD¥6,700198808-199305

main55660-14120iMA70..LHD¥4,780198808-199305

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-14070-02iMA70..RHD..(ARL,GEN)198808-199008

MAROON,TRIM3#

sub55670-14070¥4,210

main55670-14070-03iMA70..RHD198808-199008

MEDIUM GRAY,TRIM1#

sub55670-14070¥4,210

main55670-14070-04iMA70..RHD198808-199305

DEEP BLUE,TRIM8#

sub55670-14070¥4,210

main55670-14070-06iMA70..RHD198808-199008

BROWN,TRIM4#

sub55670-14070¥4,210

main55670-14070-12iMA70..RHD..(ARL,GEN)199008-199305

DEEP RED,TRIM3#

sub55670-14070¥4,210

main55670-14070-13iMA70..RHD199008-199305

SHADOW GRAY,TRIM1#

sub55670-14070¥4,210

main55670-14080-02iMA70..LHD..(GEN,V)198808-199008

MAROON,TRIM3#

sub55670-14080¥4,210

main55670-14080-03iMA70..LHD198808-199008

MEDIUM GRAY,TRIM1#

sub55670-14080¥4,210

main55670-14080-04iMA70..LHD198808-199305

DEEP BLUE,TRIM8#

sub55670-14080¥4,210

main55670-14080-06iMA70..LHD198808-199108

BROWN,TRIM4#

sub55670-14080¥4,210

main55670-14080-12iMA70..LHD..TWC199008-199305

DEEP RED,TRIM3#

sub55670-14080¥4,210

main55670-14080-13iMA70..LHD199008-199305

SHADOW GRAY,TRIM1#

sub55670-14080¥4,210

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-14030-04iMA70198808-199305

DEEP BLUE,TRIM8#

sub55680-14030¥1,870

main55680-14030-13iMA70199008-199305

SHADOW GRAY,TRIM1#

sub55680-14030¥1,870

main55680-14030-52iMA70..ARL,GEN,V199008-199305

DEEP RED,TRIM3#

sub55680-14030¥1,870

main55680-14030-B0iMA70198808-199008

MEDIUM GRAY,TRIM1#

sub55680-14030¥1,870

main55680-14030-D0iMA70..ARL,GEN,V198808-199008

MAROON,TRIM3#

sub55680-14030¥1,870

main55680-14030-E0iMA70..LHD..C198808-199108

BROWN,TRIM4#

sub55680-14030¥1,870

55685APLATE, AIR DAMPER CONTROL NAME, NO.4

main55685-14010iMA70¥180198808-199305

55691APLATE, AIR DAMPER CONTROL NAME, NO.1

main55691-14010iMA70¥180198808-199305

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-14070-02iMA70..ARL,GEN,V198808-199008

MAROON,TRIM3#

sub55961-14070¥740

main55961-14070-03iMA70198808-199008

MEDIUM GRAY,TRIM1#

sub55961-14070¥740

main55961-14070-04iMA70198808-199305

DEEP BLUE,TRIM8#

sub55961-14070¥740

main55961-14070-06iMA70..C,EUR,GEN;MA70..LB..5F..ARL;MA70..4FC..TWT..ARL198808-199108

BROWN,TRIM4#

sub55961-14070¥740

main55961-14070-12iMA70..ARL,GEN,V199008-199305

DEEP RED,TRIM3#

sub55961-14070¥740

main55961-14070-13iMA70199008-199305

SHADOW GRAY,TRIM1#

sub55961-14070¥740

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-14050-02iMA70..ARL,GEN,V198808-199008

MAROON,TRIM3#

sub55962-14050¥740

main55962-14050-03iMA70198808-199008

MEDIUM GRAY,TRIM1#

sub55962-14050¥740

main55962-14050-04iMA70198808-199305

DEEP BLUE,TRIM8#

sub55962-14050¥740

main55962-14050-06iMA70..ARL,C,EUR,GEN198808-199108

BROWN,TRIM4#

sub55962-14050¥740

main55962-14050-12iMA70..ARL,GEN,V199008-199305

DEEP RED,TRIM3#

sub55962-14050¥740

main55962-14050-13iMA70199008-199305

SHADOW GRAY,TRIM1#

sub55962-14050¥740

9011906251

main90119-06251¥160

9017906009

main90179-06009¥120

9017906097

main90179-06097¥320

9017908025

main90179-08025¥80

9018305103

main90183-05103¥90

904670703001

main90467-0703001

9046714009

main90467-14009¥90

9046805047

main90468-05047¥90

9165540616

main91655-40616¥120

9165540820

main91655-40820¥140

9352054010

main93520-54010¥110

9356755016

main93567-55016¥110

9356755020

main93567-55020¥70

9418040400

main94180-40400¥160

51 parts on this diagram · 2 diagrams in section
