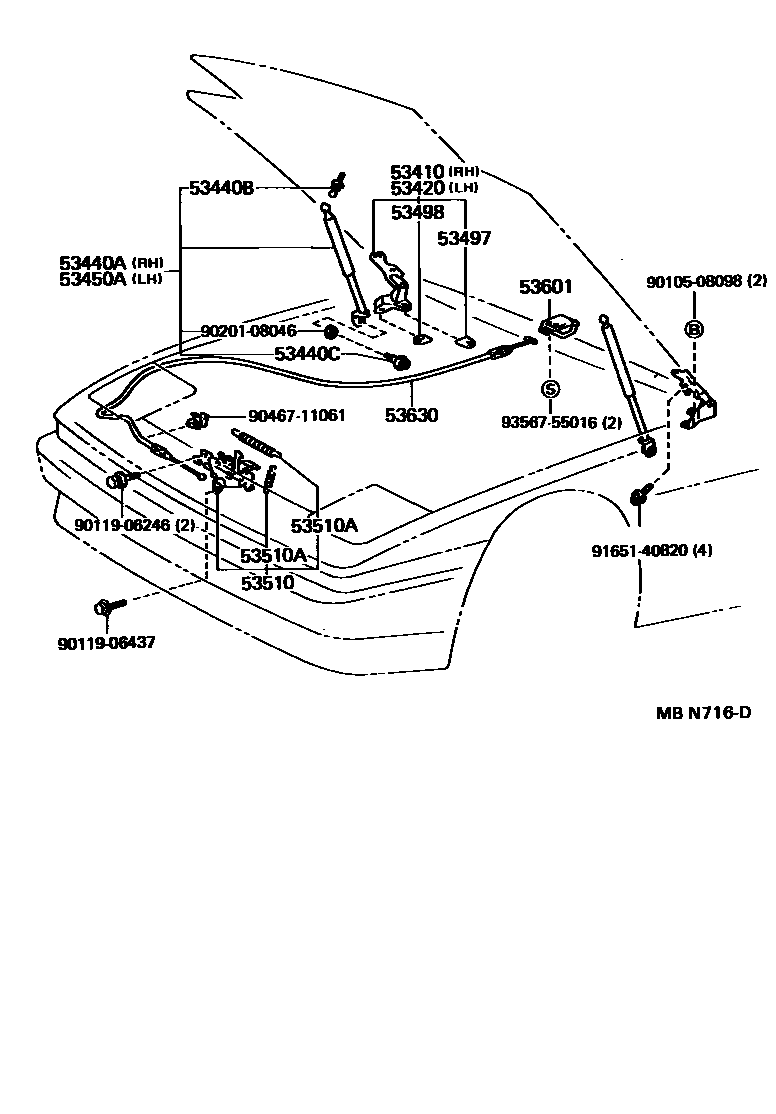

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-14111iMA70198808-199305

53420HINGE ASSY, HOOD, LH

main53420-14081iMA70198808-199305

53440ASUPPORT ASSY, HOOD, RH

main53440-19035iMA70198808-199305

53440BBOLT, HOOD SUPPORT, NO.1

main68961-14040iMA70198808-199305

53440CBOLT, HOOD SUPPORT, NO.2

main68961-96440iMA70198808-199305

53450ASUPPORT ASSY, HOOD, LH

main53450-19035iMA70198808-199305

53497PAD, HOOD HINGE, NO.1

main53497-14071iMA70198808-199305

53498PAD, HOOD HINGE, NO.2

main53498-14011iMA70198808-199305

53510LOCK ASSY, HOOD

main53510-14200iMA70..RHD198808-199305

main53510-14221iMA70..LHD198808-199305

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09029iMA70198808-199009

WD=0.9,WD=0.9,CW=26.5

main90506-09054iMA70199009-199305

WD=0.9,CW=26.5

main90506-18024iMA70198808-199009

WD=1.8,CW=18.0

main90506-18071iMA70199009-199305

WD=1.8,CW=18.0

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-20060-03iMA70199008-199305

GRAY,TRIM1#

main53601-20060-24iMA70198808-199305

DEEP BLUE,TRIM8#

main53601-20060-32iMA70..ARL,GEN,V198808-199008

MAROON,TRIM3#

main53601-20060-33iMA70198808-199008

MEDIUM GRAY,TRIM1#

main53601-20060-46iMA70198808-199108

BROWN,TRIM4#

main53601-20060-52iMA70..ARL,GEN,V199008-199305

DEEP RED,TRIM3#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-14241iMA70..LHD198808-199305

main53630-14280iMA70..RHD198808-199305

9010508098

main90105-08098

9011906246

main90119-06246

9011906437

main90119-06437

9020108046

main90201-08046

9046711061

main90467-11061

9165140820

main91651-40820

9356755016

main93567-55016

19 parts on this diagram · 1 diagram in section
