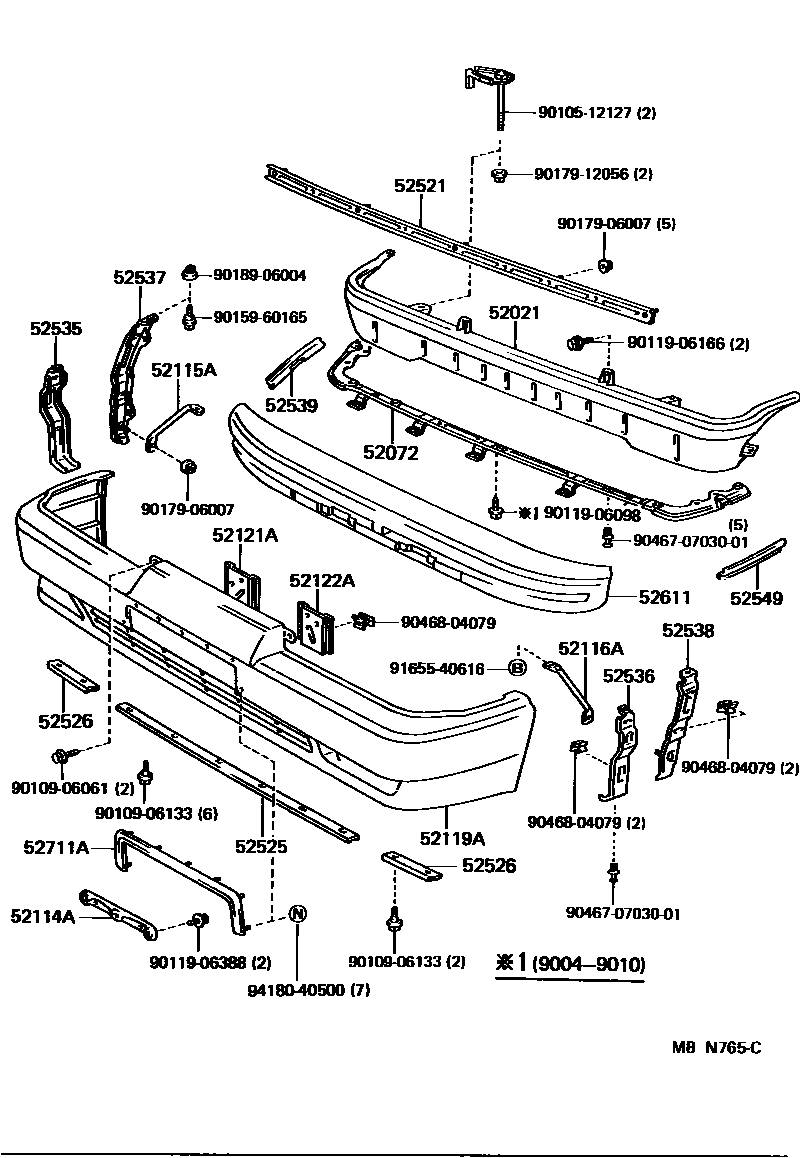

FRONT BUMPER & BUMPER STAY

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-14150iMA70..ARL,C,EUR,GEN198808-198908

main52021-14160iMA70..V198808-198908

main52021-14161iMA70198908-199305

52072RETAINER SUB-ASSY, FRONT BUMPER, LOWER

main52072-14050iMA70198808-199004

main52072-14051iMA70199004-199305

52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING

main52114-14080iMA70..C,EUR,GEN198808-199305

main52114-14090iMA70..ARL198808-199305

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-14110iMA70198808-199305

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52115-14110iMA70198808-199305

52119ACOVER, FRONT BUMPER

main52119-14320-01iMA70..ARL,C,EUR,GEN198808-199008

BLACK MICA,206

main52119-14320-02iMA70..C,EUR,GEN198808-199008

RED MICA,3H4

main52119-14320-03iMA70..C,EUR,GEN198808-198908

GRAY M,167

main52119-14320-04iMA70..ARL,C,EUR,GEN198808-198908

BLUE MICA,8E3

main52119-14320-07iMA70..C199008-199305

DARK GREEN MICA,6L9

main52119-14320-11iMA70..C,GEN199008-199305

BLACK,202

main52119-14320-12iMA70..C,GEN199008-199108

RED MICA,3H8

main52119-14320-13iMA70..ARL,C,GEN198908-199305

BLUEISH GRAY M,182

main52119-14320-14iMA70..ARL,C,GEN198908-199008

DARK BLUE M M,8G5

main52119-14320-18iMA70..ARL,C,EUR,GEN198808-198908

SUPER WHITE 3,043

main52119-14320-24iMA70..C,GEN199008-199305

BLUE M,8J3

main52119-14320-28iMA70..ARL,C,GEN198908-199305

SUPER WHITE 4,050

main52119-14320-35iMA70..C,GEN199108-199305

SUPER RED 2,3E5

main52119-14320-D0iMA70..C,GEN199108-199305

RED MICA,3K3

main52119-14320-H0iMA70..C199108-199305

MEDIUM TORQUOISE M.,749

main52119-14910iMA70..V198808-199305

main52119-14911iMA70..ARL,C,EUR,GEN198808-199305

main52119-14912iMA70..C,EUR198808-199305

W(FRONT LICENCE MOULDING)

52121ABRACKET, FRONT LICENSE PLATE MOUNTING, RH

main52121-14090iMA70198808-199305

52122ABRACKET, FRONT LICENSE PLATE MOUNTING, LH

main52122-14010iMA70198808-199305

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52521-14080iMA70198808-199305

52525RETAINER, FRONT BUMPER, LOWER CENTER

main52525-14090iMA70198808-199305

52526RETAINER, FRONT BUMPER, LOWER SIDE

main52526-14080×2iMA70198808-199305

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-14060iMA70198808-199305

52536RETAINER, FRONT BUMPER SIDE, LH

main52535-14060iMA70198808-199305

52537RETAINER, FRONT BUMPER END, RH

main52537-14040iMA70198808-199305

52538RETAINER, FRONT BUMPER END, LH

main52538-14040iMA70198808-199305

52539RETAINER, FRONT BUMPER SIDE, NO.3 RH

main52539-14010iMA70198808-199305

52549RETAINER, FRONT BUMPER SIDE, NO.3 LH

main52539-14010iMA70198808-199305

52611ABSORBER, FRONT BUMPER ENERGY

main52611-14100iMA70198808-199305

52711AGARNISH, FRONT BUMPER

main52711-14060-01iMA70..C,EUR198808-198908

BLACK,167 ,206 ,4J7 ,8E3

main52711-14060-02iMA70..C,EUR198808-199305

SUPER RED 2,3E5

main52711-14060-03iMA70..C,EUR198808-199108

SUPER SILVER 3 M,176

main52711-14060-07iMA70..C199008-199305

DARK GREEN MICA,6L9

main52711-14060-08iMA70..C,EUR198808-198908

SUPER WHITE 3,043

main52711-14060-12iMA70..C,EUR198808-199008

RED MICA,3H4

main52711-14060-18iMA70..C198908-199305

SUPER WHITE 4,050

main52711-14060-22iMA70..C199008-199108

RED MICA,3H8

main52711-14060-D0iMA70..C199108-199305

RED MICA,3K3

main52711-14060-H0iMA70..C199108-199305

MEDIUM TORQUOISE M.,749

9010512127

main90105-12127

9010906061

main90109-06061

9010906133

main90109-06133

9011906098

main90119-06098

9011906166

main90119-06166

9011906388

main90119-06388

9015960165

main90159-60165

9017906007

main90179-06007

9017912056

main90179-12056

9018906004

main90189-06004

904670703001

main90467-0703001

9046804079

main90468-04079

9165540616

main91655-40616

9418040500

main94180-40500

33 parts on this diagram · 1 diagram in section
