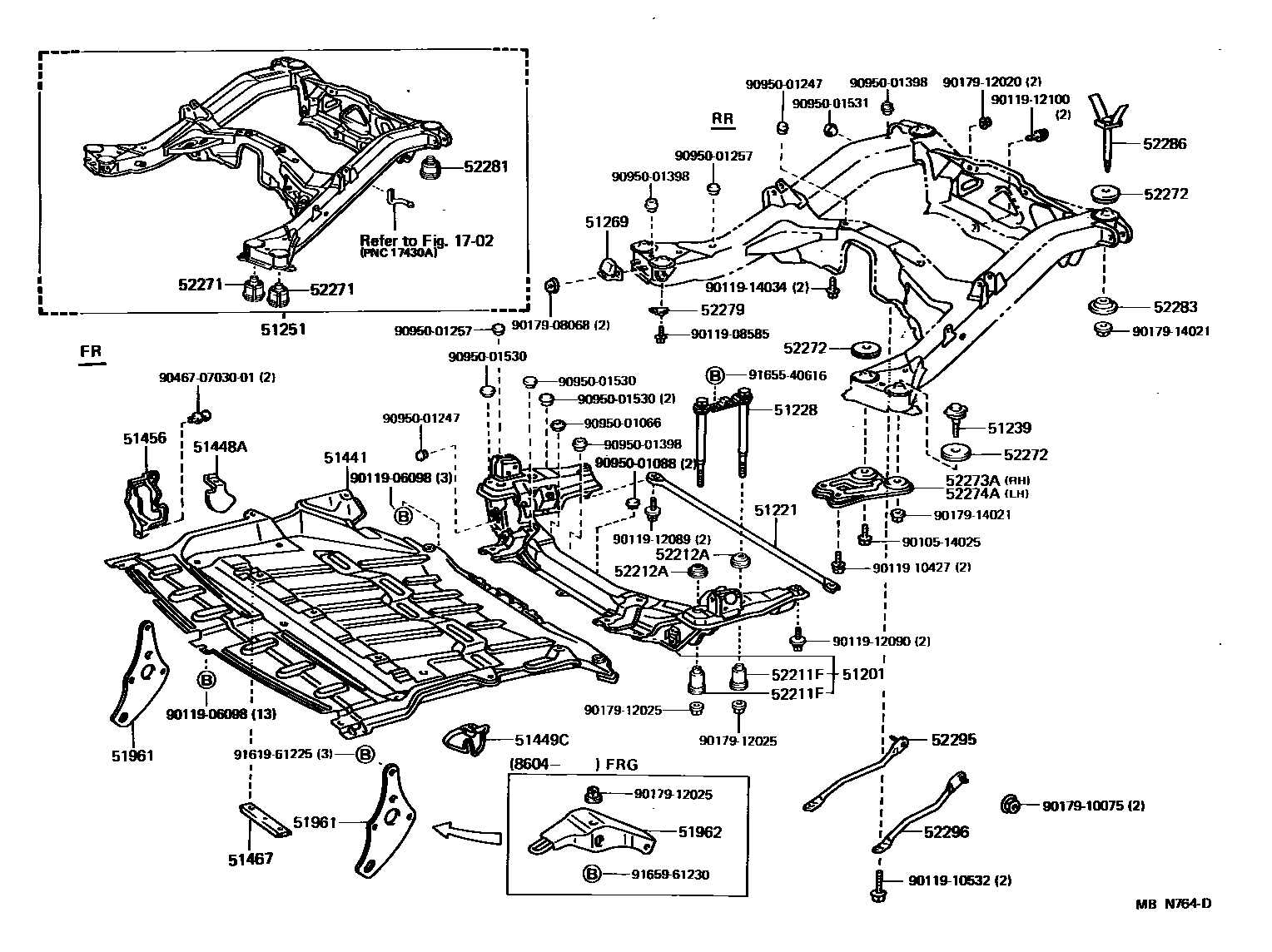

SUSPENSION CROSSMEMBER & UNDER COVER

1702

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51210-14020iMA70..RHD198808-198901

main51210-14021iMA70..RHD198901-199305

main51210-14030iMA70..LHD198808-198901

main51210-14031iMA70..LHD198901-199305

51221CROSSMEMBER, FRONT SUSPENSION, NO.1

main51221-14010iMA70198808-199008

sub51221-14012

main51221-14012iMA70199008-199305

51228PLATE, SUSPENSION MEMBER SET

main51229-14040iMA70198808-199305

51239PLATE, REAR SUSPENSION MEMBER SET

main51239-14010iMA70198808-199305

51251MEMBER SUB-ASSY, REAR SUSPENSION

main51270-14021iMA70198808-199305

51269DAMPER, DIFFERENTIAL SUPPORT MEMBER

main51269-14010iMA70198808-199305

51441COVER, ENGINE UNDER, NO.1

main51441-14110iMA70198808-199305

51448ACOVER, ENGINE SIDE UNDER, RH

main51448-14010iMA70..TWC198808-199305

51449CCOVER, ENGINE SIDE UNDER, LH

main51449-14010iMA70..TWC;MA70..TWT..ARL;MA70..LHD..5F..TWT198808-199305

51456SEAL, ENGINE SIDE COVER, UPPER

main51456-14010iMA70..LHD..TWC..(C,EUR)198808-199305

51467RETAINER, ENGINE UNDER COVER

main51467-14010iMA70..TWT..C198808-199008

main51467-14020iMA70..LHD..TWT199004-199305

51961HOOK, NO.1

main51963-14100iMA70198808-199305

51962HOOK, NO.2

main51093-14020iMA70..LHD..(C,EUR)198808-199305

52211FCUSHION, BODY MOUNTING, FRONT UPPER

main52211-14010iMA70198808-199305

52212ACUSHION, BODY MOUNTING, NO.2

main52212-14010iMA70198808-199305

52271CUSHION, REAR SUSPENSION MEMBER

main52271-14020iMA70198808-199305

INNER

main52271-14030iMA70198808-199305

OUTER

sub52271-14050

52272STOPPER, REAR SUSPENSION MEMBER, UPPER

main52272-14020iMA70198808-199305

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52203-14010iMA70..TWC;MA70..ARL199008-199305

main52203-14020iMA70..TWT..C198908-199305

main52273-14020iMA70..TWC;MA70..ARL198808-199008

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52204-14010iMA70199008-199305

main52274-14010iMA70198808-199008

52279RETAINER, REAR SUSPENSION MEMBER CUSHION

main52279-14010iMA70198808-199305

52281CUSHION, DIFFERENTIAL SUPPORT MEMBER

main52281-14030iMA70198808-199305

sub52281-14050

sub52272-14030

52283STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER

main52283-14020iMA70198808-199305

52286BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.2

main52286-14020iMA70198808-199010

sub52286-14021

main52286-14021iMA70199010-199305

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-24010iMA70198808-199305

52296BRACE, REAR SUSPENSION MEMBER, LH

main52296-24010iMA70198808-199305

9010514025

main90105-14025

9011906098

main90119-06098

9011908585

main90119-08585

9011910427

main90119-10427

9011910532

main90119-10532

9011912089

main90119-12089

9011912090

main90119-12090

9011912100

main90119-12100

9011914034

main90119-14034

9017908068

main90179-08068

9017910075

main90179-10075

9017912020

main90179-12020

9017912025

main90179-12025

9017914021

main90179-14021

904670703001

main90467-0703001

9095001066

main90950-01066

9095001088

main90950-01088

9095001247

main90950-01247

9095001257

main90950-01257

9095001398

main90950-01398

9095001530

main90950-01530

9095001531

main90950-01531

9161961225

main91619-61225

9165540616

main91655-40616

9165961230

main91659-61230

51 parts on this diagram · 1 diagram in section
