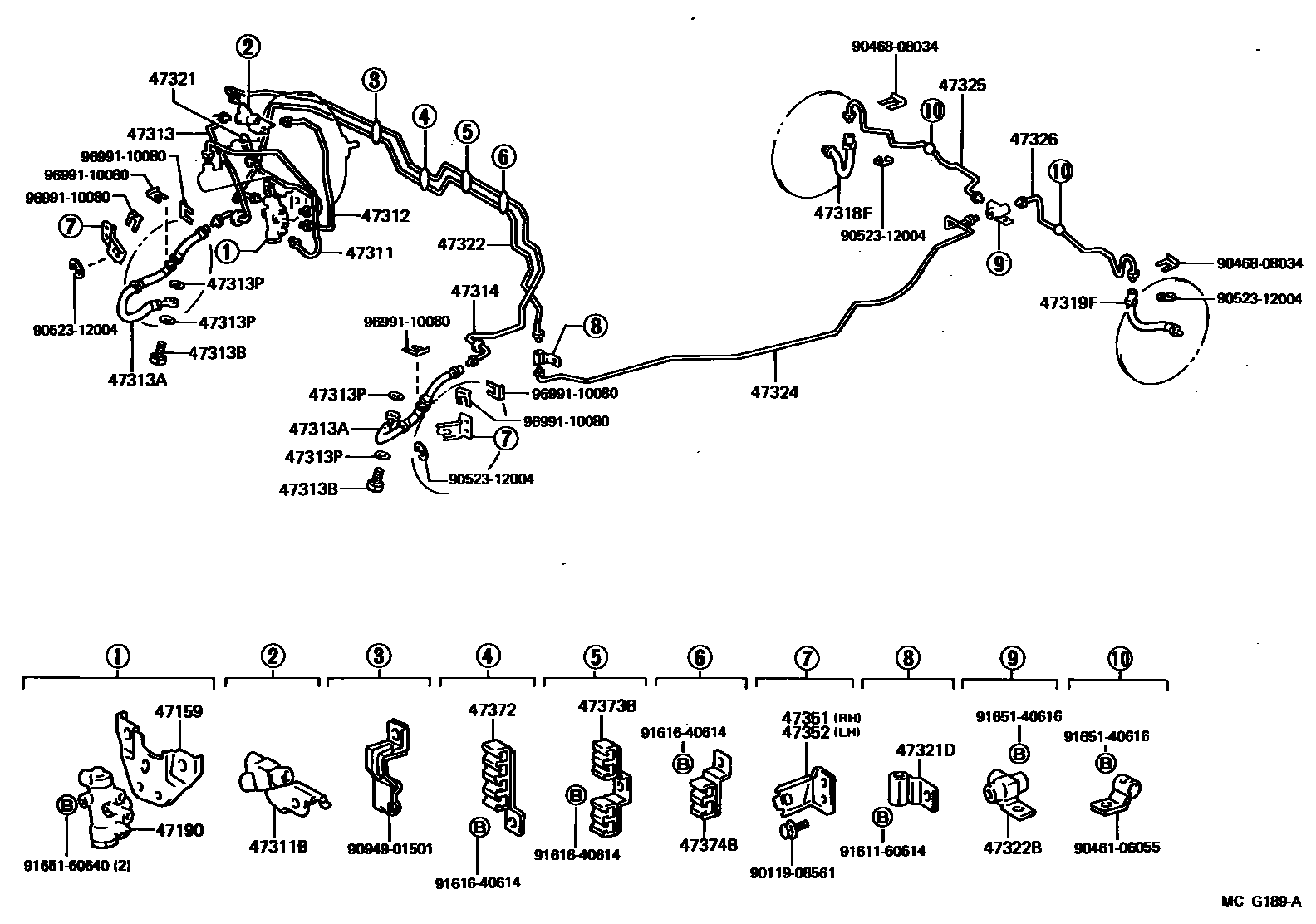

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1W(ANTI-LOCK BRAKE SYSTEM) 0004 1W(ANTI-LOCK BRAKE SYSTEM) 0005 1

47159BRACKET, PROPORTIONING VALVE

main47159-14060iMA70..RHD198808-199305

47190VALVE ASSY, PROPORTIONING & BY-PASS

main47190-14060iMA70..RHD..(ARL,GEN)198808-199305

main47190-14070iMA70..LHD..GEN198808-199305

main47190-14080iMA70..RHD..(C,EUR)198808-199305

main47190-14090iMA70..LHD..(C,V)198808-199305

47311TUBE, FRONT BRAKE, NO.1

main47311-14330iMA70..LHD198808-199008

main47311-14340iMA70..RHD198808-199008

main47311-14380iMA70..RHD199008-199305

main47311-14380iMA70..RHD..(C,EUR)198808-199008

W(*66)

main47311-14390iMA70..LHD..(C,EUR)198808-199008

W(*66)

main47311-14390iMA70..LHD199008-199305

main47311-14400iMA70..LHD..C199008-199305

W(*66)

main47311-14410iMA70..RHD..C199008-199305

W(*66)

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10137iMA70..RHD..(C,EUR)198808-199008

W(*66)

main90412-10180iMA70..RHD..C199008-199305

W(*66)

main90413-10200iMA70..RHD198808-199305

main90413-10203iMA70..LHD198808-199305

47312TUBE, FRONT BRAKE, NO.2

main47312-14160iMA70..LHD198808-199305

main47312-14200iMA70..RHD198808-199305

main47312-14210iMA70..RHD..(C,EUR)198808-199008

W(*66)

main47312-14230iMA70..LHD..(C,EUR)198808-199305

W(*66)

main47312-14240iMA70..RHD..C199008-199305

W(*66)

47313TUBE, FRONT BRAKE, NO.3

main47313-14222iMA70..LHD198808-199305

main47313-14241iMA70..RHD198808-199305

main47313-14270iMA70..RHD..(C,EUR)198808-199101

W(*66)

sub47313-14271

sub90461-08449

main47313-14271iMA70..RHD..C199101-199305

W(*66)

main47313-14280iMA70..LHD..(C,EUR)198808-199305

W(*66)

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02489iMA70198808-199305

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015iMA70198808-199305

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-30010iMA70199107-199305

main90430-10074iMA70198808-199107

47314TUBE, FRONT BRAKE, NO.4

main47314-14141iMA70..LHD198808-199305

main47314-14161iMA70..RHD198808-199305

main47314-14190iMA70..RHD..(C,EUR)198808-199305

W(*66)

main47314-14200iMA70..LHD..(C,EUR)198808-199305

W(*66)

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02493iMA70198808-199305

sub90947-02568

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02493iMA70198808-199305

sub90947-02568

47321TUBE, REAR BRAKE, NO.1

main47321-14190iMA70..LHD198808-199008

main47321-14200iMA70..RHD198808-199008

main47321-14210iMA70..RHD..(C,EUR)198808-199008

W(*66)

main47321-14210iMA70..RHD199008-199305

main47321-14220iMA70..LHD..(C,EUR)198808-199008

W(*66)

main47321-14220iMA70..LHD199008-199305

main47321-14230iMA70..LHD..C199008-199305

W(*66)

main47321-14240iMA70..RHD..C199008-199305

W(*66)

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-10116iMA70198808-199305

47322TUBE, REAR BRAKE, NO.2

main47322-14230iMA70..LHD198808-199305

main47322-14290iMA70..LHD..(C,EUR)198808-199305

W(*66)

main47322-14310iMA70..RHD198808-199305

main47322-14320iMA70..RHD..(C,EUR)198808-199305

W(*66)

47322BWAY, NO.2(FOR REAR BRAKE TUBE)

main90413-10004iMA70198808-199305

47324TUBE, REAR BRAKE, NO.4

main47324-14130iMA70198808-199305

47325TUBE, REAR BRAKE, NO.5

main47325-14010iMA70198808-199305

47326TUBE, REAR BRAKE, NO.6

main47326-14010iMA70198808-199305

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-14041iMA70198808-199305

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-14021iMA70198808-199305

47372CLAMP, BRAKE TUBE, NO.2

main47371-14021iMA70..RHD;MA70..LHD..(C,EUR)198808-199305

47373BCLAMP, BRAKE TUBE, NO.3

main47371-14010iMA70..RHD198808-199305

W(*66)

main47371-14041iMA70..LHD..(C,EUR)198808-199305

47374BCLAMP, BRAKE TUBE, NO.4

main47371-30010iMA70198808-199305

W(*66)

9011908561

main90119-08561

9046106055

main90461-06055

9046808034

main90468-08034

9052312004

main90523-12004

9094901501

main90949-01501

9161160614

main91611-60614

9161640614

main91616-40614

9165140616

main91651-40616

9165160640

main91651-60640

9699110080

main96991-10080

34 parts on this diagram · 5 diagrams in section
