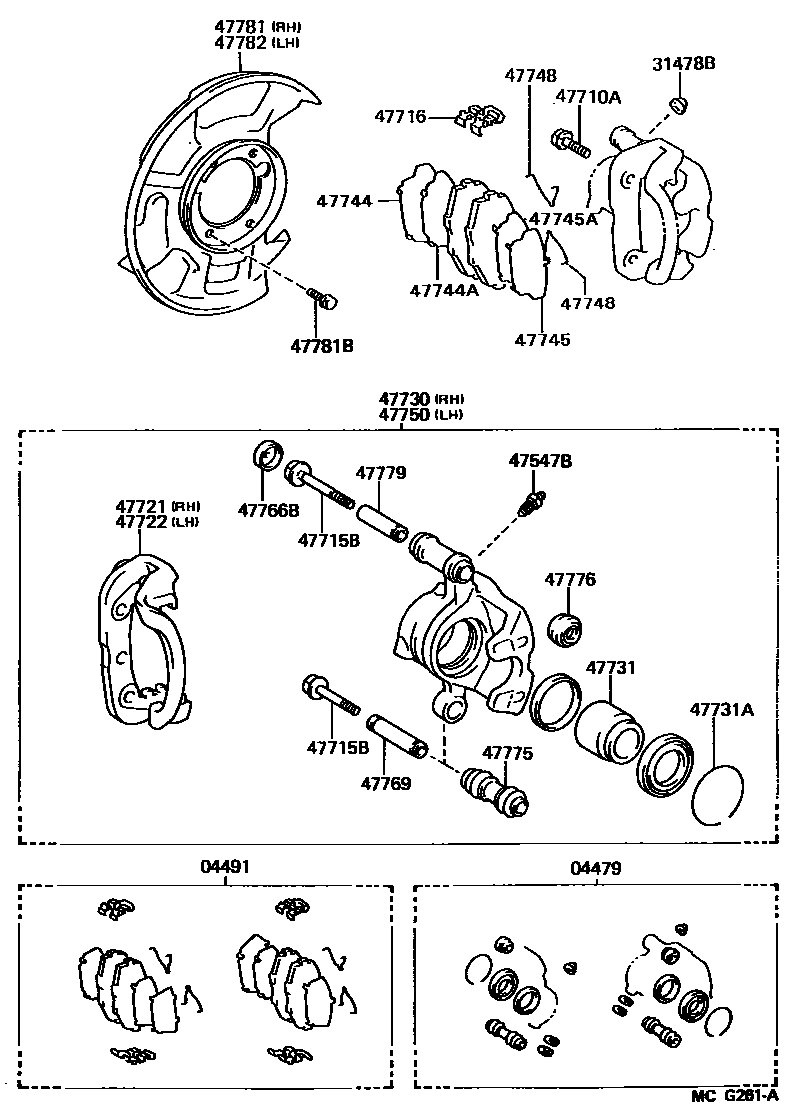

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-14100iMA70198808-199305

04491PAD KIT, DISC BRAKE, FRONT

main04491-14230iMA70..LHD..C;MA70..TWC..(C,V)198808-199305

sub04465-14100

main04491-14240iMA70..ARL,GEN198808-199002

sub04491-14271

main04491-14260iMA70..RHD..TWC..(C,EUR)198808-199008

FINLAND & NORWAY & NETHERLANDS SPEC

sub04465-14110

main04491-14260iMA70..LHD..EUR198808-199305

ENGLAND SPEC

sub04465-14110

main04491-14260iMA70..LHD..TWC..C198908-199008

FINLAND & NETHERLANDS SPEC

sub04465-14110

main04491-14260iMA70..LHD..TWT198808-199305

SWEDEN & NORWAY & NETHERLANDS SPEC

sub04465-14110

main04491-14271iMA70..ARL,GEN199002-199008

sub04491-14272

main04491-14280iMA70..ARL,GEN199008-199203

sub04491-24050

main04491-24050iMA70..ARL,GEN199203-199305

sub04465-24030

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iMA70198808-199305

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iMA70198808-199305

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12058iMA70198808-199305

*12-1.25PX31-20

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-10141iMA70198808-199305

UPR

main90119-10403iMA70198808-199305

LWR

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-14120iMA70198808-199305

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-14110iMA70198808-199008

main47721-14150iMA70199008-199305

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-14110iMA70198808-199008

main47721-14150iMA70199008-199305

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-14200iMA70198808-199008

main47730-14220iMA70199008-199305

47731PISTON, FRONT DISC BRAKE

main47731-28020iMA70198808-199305

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-67001iMA70198808-199305

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47745-14030iMA70..C,V198808-199305

main47745-14050iMA70..ARL,GEN198808-199305

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47744-14100iMA70..C,V198808-199305

main47744-14120iMA70..ARL,GEN198808-199305

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47742-24010iMA70..ARL,GEN198908-199305

main47744-14100iMA70..C,EUR,V198808-199305

main47745-14050iMA70..ARL,GEN198808-198908

47745ASHIM, ANTI-SQUEAL, NO.4(FOR FRONT DISC BRAKE)

main47744-14120iMA70..ARL,GEN198808-199305

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-14070iMA70198808-199305

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-14220iMA70198808-199008

main47750-14230iMA70199008-199305

47766BCAP, CYLINDER SLIDE PIN

main47766-14010iMA70198808-199305

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-28020iMA70198808-199305

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-28020iMA70198808-199305

47776BOOT, MAIN PIN(FOR FRONT DISC BRAKE)

main47776-20010iMA70198808-199305

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-14020iMA70198808-199305

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-14100iMA70..ARL,GEN198808-198908

main47781-14120iMA70..C,EUR,V198808-198908

main47781-14130iMA70..ARL,GEN198908-199305

main47781-14140iMA70..C,V198908-199305

47781BBOLT(FOR DUST COVER SETTING)

main90119-08571iMA70198808-199305

*8-1.25PX18-5.5

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-14100iMA70..ARL,GEN198808-198908

main47782-14120iMA70..C,EUR,V198808-198908

main47782-14130iMA70..ARL,GEN198908-199305

main47782-14140iMA70..C,V198908-199305

26 parts on this diagram · 3 diagrams in section
