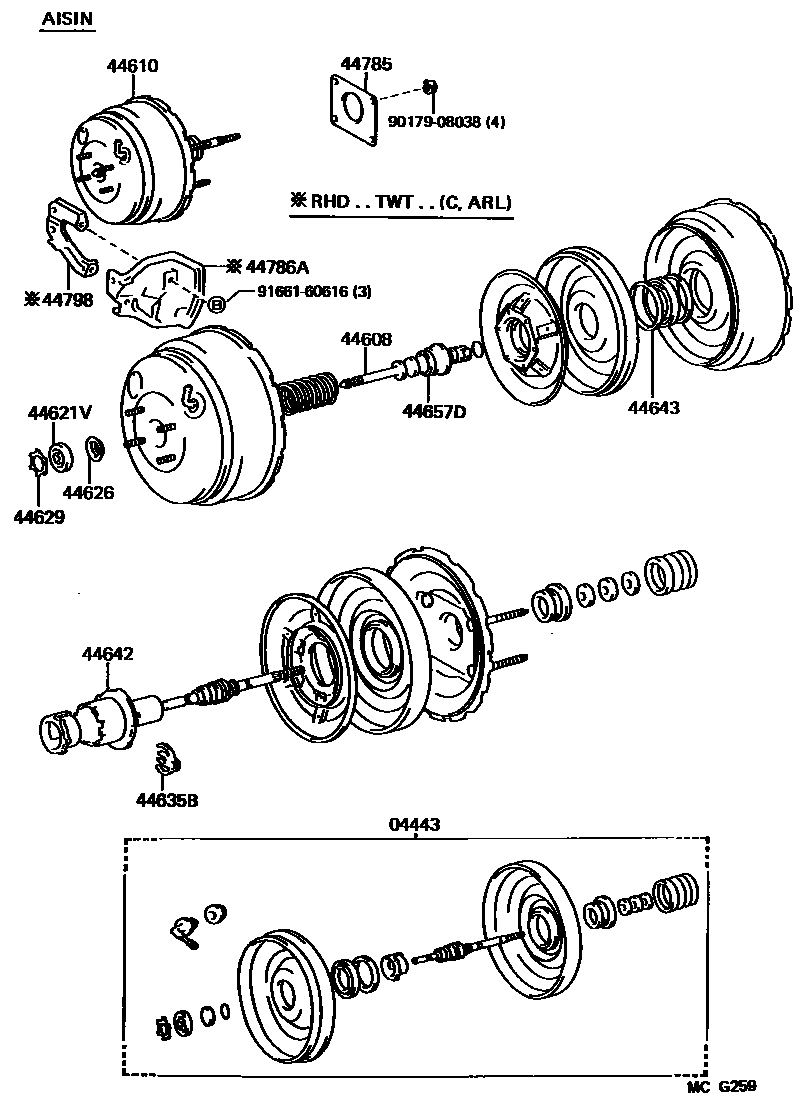

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

04443BOOSTER KIT, BRAKE

main04443-14510iMA70..RHD..(ARL,GEN)198808-199008

main04443-14520iMA70..LHD..GEN198808-199008

AISIN

main04443-14530iMA70..RHD..(C,EUR)198808-199305

main04443-14540iMA70..LHD..(C,V)198808-199305

main04443-14590iMA70..LHD..GEN198808-199008

JKC

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-20800iMA70..RHD;MA70..LHD..(C,V)198808-199305

main44606-20800iMA70..LHD..GEN198808-199305

AISIN

main44608-17090iMA70..LHD..GEN198808-199305

JKC

44610BOOSTER ASSY, BRAKE

main44610-14670iMA70..RHD..(ARL,GEN)198808-199008

AISIN

main44610-14690iMA70..C,EUR,V198808-199008

sub44610-14810

main44610-14720iMA70..LHD..GEN198808-199008

JKC

sub44610-14790

main44610-14810iMA70..C,V199008-199305

main44610-14820iMA70..LHD..GEN199008-199305

JKC

main44610-14830iMA70..RHD..(ARL,GEN)199008-199305

AISIN

44621VSEAL, BOOSTER BODY

main44621-14030iMA70198808-199305

44626RETAINER, BOOSTER ROD CUP

main44626-60010iMA70198808-199305

44629RING, CIRCULAR INTERNAL

main44628-60010iMA70198808-199305

44635BKEY, VALVE STOPPER

main44635-20800iMA70198808-199305

44642PISTON, BRAKE BOOSTER

main44642-20800iMA70198808-199305

44643RETAINER, DIAPHRAGM

main44643-20800iMA70198808-199305

44657DCASE, REACTION DISC

main44657-20800iMA70..ARL,GEN198808-199305

main44657-22630iMA70..C,EUR,V198808-199305

44785GASKET, BRAKE BOOSTER

main44785-30020iMA70198808-199305

44786AINSULATOR, BRAKE BOOSTER HEAT

main44786-14030iMA70..RHD..TWT198808-199008

main44786-14040iMA70..RHD..TWT199008-199305

main44786-14050iMA70..RHD..TWT..C199008-199305

W(*66)

44798BRACKET, HEAT INSULATOR, NO.3

main44798-14030iMA70..RHD..TWT198808-199008

main44798-14040iMA70..RHD..TWT199008-199305

9017908038

main90179-08038

9166160616

main91661-60616

15 parts on this diagram · 3 diagrams in section
