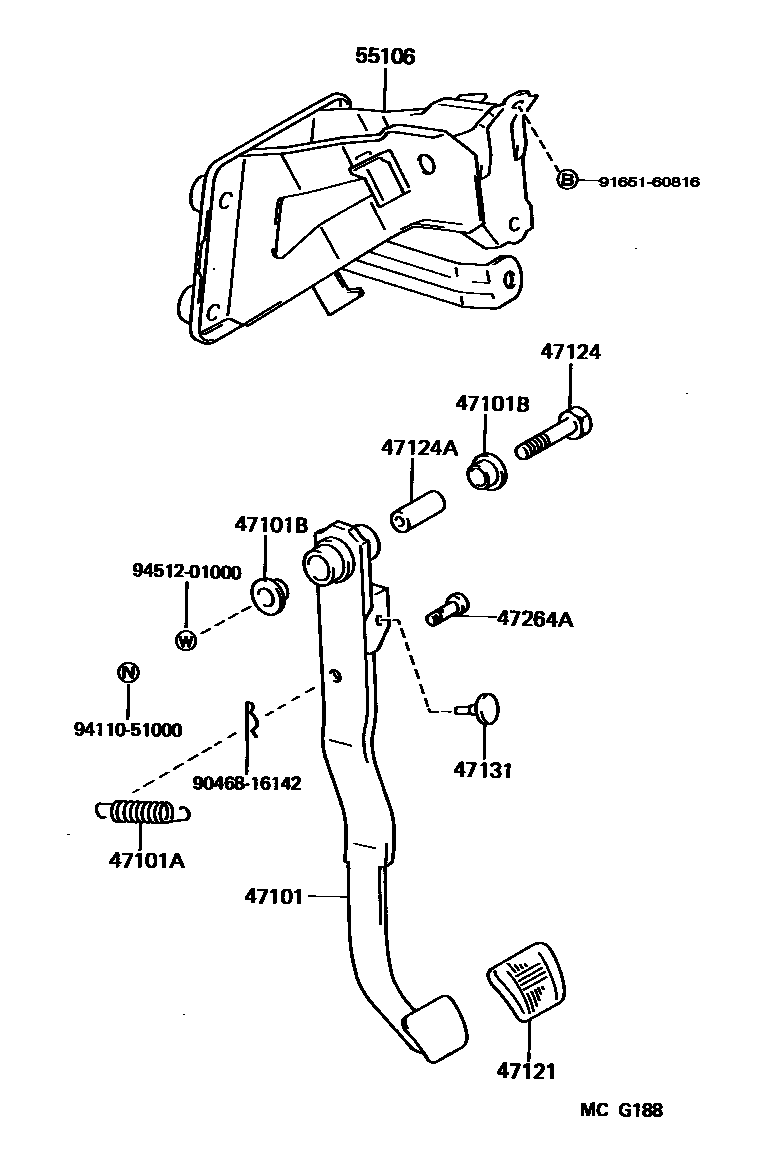

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-14170iMA70..RHD..5F198808-199305

main47101-14180iMA70..RHD..4FC198808-199305

main47101-14190iMA70..LHD..5F198808-199305

main47101-14200iMA70..LHD..4FC198808-199305

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12011iMA70198808-198906

main90507-14024iMA70198906-199305

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iMA70198808-199305

47121PAD, BRAKE PEDAL

main31321-14020iMA70..5F198808-199305

main47121-14010iMA70..4FC198808-199305

47124SHAFT, BRAKE PEDAL

main90101-10039iMA70198808-199305

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iMA70198808-199305

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06032iMA70198808-199305

sub90541-06036

47264APIN(FOR PUSH ROD)

main90249-10064iMA70198808-199305

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-14270iMA70..RHD198808-199305

main55106-14290iMA70..LHD198808-199305

9046816142

main90468-16142

9165160816

main91651-60816

9411051000

main94110-51000

9451201000

main94512-01000

13 parts on this diagram · 1 diagram in section
