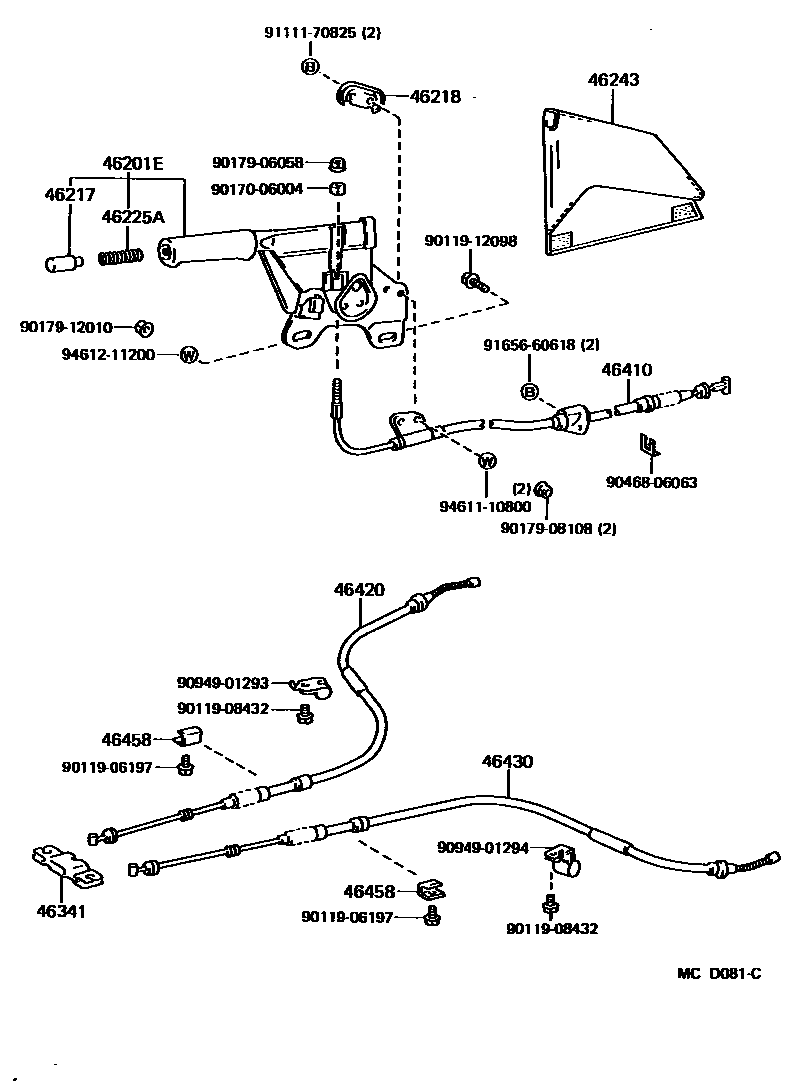

PARKING BRAKE & CABLE

0001 1 0002 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-14161-01iMA70..RHD..GEN199008-199108

BLACK,TRIM1#,3#,8#

main46201-14171-01iMA70..LHD..TWC199008-199108

BLACK,TRIM1#,3#,8#

main46201-14181-01iMA70..LHD..(C,EUR)198808-199108

BLACK,TRIM1#,4#,8#

main46201-14191-01iMA70..RHD..C199008-199305

BLACK,TRIM1#,3#,8#

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-12020-11iMA70..V198808-198908

BLACK,TRIM1#,3#,8#

sub46217-16030

main46217-32010-01iMA70..ARL198901-198908

BLACK,TRIM3#,8#

46218PROTECTOR, PARKING BRAKE LEVER EDGE

main46218-14030iMA70..ARL,C,EUR198808-199008

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10069iMA70198808-199008

46243COVER, PARKING BRAKE LEVER

main46243-14090-02iMA70..RHD..(ARL,GEN)198808-199008

MAROON,TRIM3#

main46243-14090-03iMA70..RHD198808-198901

MEDIUM GRAY,TRIM1#

main46243-14090-04iMA70..RHD198808-199305

DEEP BLUE,TRIM8#

main46243-14090-06iMA70..RHD..(C,EUR,GEN)198901-198908

BROWN,TRIM4#

main46243-14090-12iMA70..RHD..(ARL,GEN)199008-199305

DEEP RED,TRIM3#

main46243-14090-13iMA70..RHD199008-199108

SHADOW GRAY,TRIM1#

main46243-14100-02iMA70..LHD..(GEN,V)198808-199008

MAROON,TRIM3#

main46243-14100-03iMA70..LHD198808-199008

MEDIUM GRAY,TRIM1#

main46243-14100-04iMA70..LHD198808-199305

DEEP BLUE,TRIM8#

main46243-14100-06iMA70..LHD198908-199008

BROWN,TRIM4#

main46243-14100-12iMA70..LHD..TWC199008-199305

DEEP RED,TRIM3#

main46243-14100-13iMA70..LHD199008-199305

SHADOW GRAY,TRIM1#

46341EQUALIZER, PARKING BRAKE

main46341-12010iMA70199108-199305

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-14070iMA70..RHD198808-199108

main46410-14090iMA70..LHD198808-199008

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-14290iMA70198808-199008

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-14290iMA70198808-199011

main46430-14300iMA70199011-199305

46458RETAINER, CABLE

main46458-20020×2iMA70198808-198908

main46458-50010×2iMA70199108-199305

9011906197

main90119-06197

9011908432

main90119-08432

9011912098

main90119-12098

9017006004

main90170-06004

9017906058

main90179-06058

9017908108

main90179-08108

9017912010

main90179-12010

9046806063

main90468-06063

9094901293

main90949-01293

9094901294

main90949-01294

9111170825

main91111-70825

9165660618

main91656-60618

9461110800

main94611-10800

9461211200

main94612-11200

24 parts on this diagram · 2 diagrams in section
