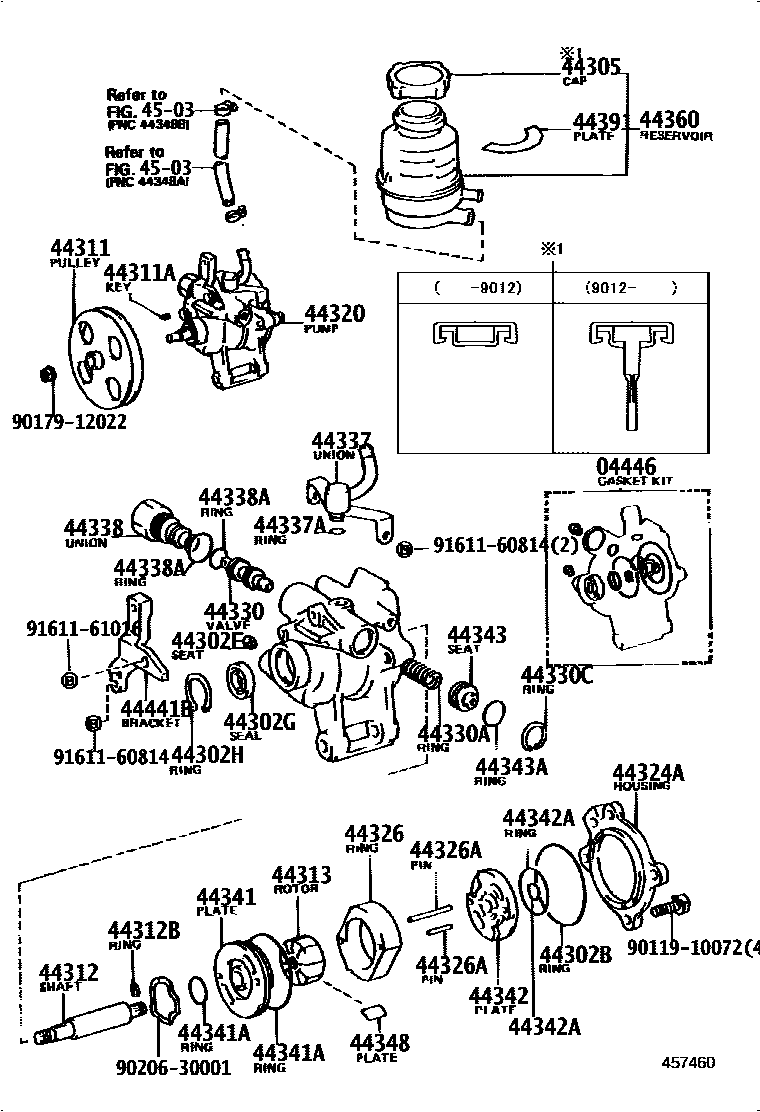

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1

04446GASKET KIT, POWER STEERING PUMP

main04446-30090iMA70..RHD..EUR;MA70..ARL,C,GEN,V¥3,550198808-198908

main04446-30091iMA70¥3,550198908-199305

sub04446-30090¥3,550

sub04446-30161¥1,800

44302BRING, O, NO.1(FOR VANE PUMP HOUSING)

main90301-63002iMA70¥370198808-199305

44302FSEAT, UNION(FOR VANE PUMP HOUSING)

main90410-05035iMA70¥230198808-199305

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90311-18008iMA70¥540198808-199305

44302HRING, SNAP, NO.1(FOR VANE PUMP HOUSING)

main90521-32001iMA70¥540198808-199305

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-22030iMA70..TWC¥1,840198808-199012

sub44305-22050¥1,260

main44305-30020iMA70..TWT¥1,950198808-199305

sub44305-22040¥1,940

main44305-32030iMA70..TWC¥1,830199012-199305

sub44305-28050¥1,460

44311PULLEY, VANE PUMP

main44311-14050iMA70..GEN,V¥7,500198808-199305

main44311-24030iMA70..ARL,C,EUR¥7,300198808-199305

44311AKEY, VANE PUMP PULLEY

main90280-05008iMA70¥220198808-199305

44312SHAFT, VANE PUMP

main44312-12020iMA70¥2,940198808-199305

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90520-10003iMA70¥140198808-199305

44313ROTOR, VANE PUMP

main44313-22040iMA70..GEN,V;MA70..LHD..TWC..(C,EUR)¥7,700198808-199305

NO MARK

main44313-22050iMA70..GEN,V;MA70..LHD..TWC..(C,EUR)¥7,700198808-199305

MARK 1

main44313-22060iMA70..GEN,V;MA70..LHD..TWC..(C,EUR)¥7,700198808-199305

MARK 2

main44313-22070iMA70..GEN,V;MA70..LHD..TWC..(C,EUR)¥7,700198808-199305

MARK 3

main44313-22080iMA70..GEN,V;MA70..LHD..TWC..(C,EUR)¥7,700198808-199305

MARK 4

main44313-32010iMA70..LHD..TWC..(C,EUR)¥7,600198808-199008

NO MARK,W(*73)

main44313-32010iMA70..LHD..TWT;MA70..RHD..(ARL,C,EUR)¥7,600198808-199305

NO MARK

main44313-32020iMA70..LHD..TWT;MA70..RHD..(ARL,C,EUR)¥7,800198808-199305

MARK 1

main44313-32020iMA70..LHD..TWC..(C,EUR)¥7,800198808-199008

MARK 1,W(*73)

main44313-32030iMA70..LHD..TWC..(C,EUR)¥7,800198808-199008

MARK 2,W(*73)

main44313-32030iMA70..LHD..TWT;MA70..RHD..(ARL,C,EUR)¥7,800198808-199305

MARK 2

main44313-32040iMA70..LHD..TWT;MA70..RHD..(ARL,C,EUR)¥7,800198808-199305

MARK 3

main44313-32040iMA70..LHD..TWC..(C,EUR)¥7,800198808-199008

MARK 3,W(*73)

main44313-32050iMA70..LHD..TWC..(C,EUR)¥7,800198808-199008

MARK 4,W(*73)

main44313-32050iMA70..LHD..TWT;MA70..RHD..(ARL,C,EUR)¥7,800198808-199305

MARK 4

44320PUMP ASSY, VANE

main44320-14221iMA70..GEN,V;MA70..LHD..TWC..(C,EUR)¥82,200198808-199305

main44320-24031iMA70..LHD..TWC..(C,EUR)¥82,200198808-199008

W(*73)

main44320-24031iMA70..LHD..TWT;MA70..RHD..(ARL,C,EUR)¥82,200198808-199305

44324AHOUSING, PUMP, REAR

main44324-14050iMA70¥3,830198808-199305

44326RING, CAM(FOR VANE PUMP)

main44325-22020iMA70..LHD..TWC..(C,EUR)¥8,700198808-199008

NO MARK,W(*73)

main44325-22020iMA70..LHD..TWT;MA70..RHD..(ARL,C,EUR)¥8,700198808-199305

NO MARK

main44325-22030iMA70..LHD..TWC..(C,EUR)¥8,700198808-199008

MARK 1,W(*73)

main44325-22030iMA70..LHD..TWT;MA70..RHD..(ARL,C,EUR)¥8,700198808-199305

MARK 1

main44325-22040iMA70..LHD..TWT;MA70..RHD..(ARL,C,EUR)¥8,700198808-199305

MARK 2

main44325-22040iMA70..LHD..TWC..(C,EUR)¥8,700198808-199008

MARK 2,W(*73)

main44325-22050iMA70..LHD..TWC..(C,EUR)¥8,700198808-199008

MARK 3,W(*73)

main44325-22050iMA70..LHD..TWT;MA70..RHD..(ARL,C,EUR)¥8,700198808-199305

MARK 3

main44325-22060iMA70..LHD..TWC..(C,EUR)¥8,700198808-199008

MARK 4,W(*73)

main44325-22060iMA70..LHD..TWT;MA70..RHD..(ARL,C,EUR)¥8,700198808-199305

MARK 4

main44325-30150iMA70..GEN,V;MA70..LHD..TWC..(C,EUR)¥8,600198808-199305

NO MARK

main44325-30160iMA70..GEN,V;MA70..LHD..TWC..(C,EUR)¥8,600198808-199305

MARK 1

main44325-30170iMA70..GEN,V;MA70..LHD..TWC..(C,EUR)¥8,600198808-199305

MARK 2

main44325-30180iMA70..GEN,V;MA70..LHD..TWC..(C,EUR)¥8,600198808-199305

MARK 3

main44325-30190iMA70..GEN,V;MA70..LHD..TWC..(C,EUR)¥8,600198808-199305

MARK 4

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main90250-05008iMA70¥240198808-199305

L=25,OD=5.0

main90250-05017iMA70¥470198808-199305

L=43.5,OD=5.0

44330VALVE ASSY, FLOW CONTROL

main44330-30100iMA70¥9,200198808-198906

MARK A

sub44330-32130¥8,600

main44330-30110iMA70¥9,200198808-198906

MARK B

sub44330-32140¥8,600

main44330-30120iMA70¥9,200198808-198906

MARK C

sub44330-32150¥8,600

main44330-30130iMA70¥9,200198808-198906

MARK D

sub44330-32160¥8,600

main44330-30140iMA70¥9,200198808-198906

MARK E

sub44330-32170¥8,600

main44330-30150iMA70¥9,200198808-198906

MARK F

sub44330-32180¥8,600

main44330-32130iMA70¥8,600198906-199212

MARK A

sub44330-32670¥8,600

main44330-32140iMA70¥8,600198906-199212

MARK B

sub44330-32680¥8,600

main44330-32150iMA70¥8,600198906-199212

MARK C

sub44330-32690¥8,600

main44330-32160iMA70¥8,600198906-199212

MARK D

sub44330-32700¥8,600

main44330-32170iMA70¥8,600198906-199212

MARK E

sub44330-32710¥8,600

main44330-32180iMA70¥8,600198906-199212

MARK F

sub44330-32720¥8,600

main44330-40010iMA70¥8,600199212-199305

MARK A

sub44330-32670¥8,600

main44330-40020iMA70¥8,600199212-199305

MARK B

sub44330-32680¥8,600

main44330-40030iMA70¥8,600199212-199305

MARK C

sub44330-32690¥8,600

main44330-40040iMA70¥8,600199212-199305

MARK D

sub44330-32700¥8,600

main44330-40050iMA70¥8,600199212-199305

MARK E

sub44330-32710¥8,600

main44330-40060iMA70¥8,600199212-199305

MARK F

sub44330-32720¥8,600

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-12447iMA70¥660198808-199305

44330CRING, SNAP(FOR FLOW CONTROL VALVE)

main96151-02200iMA70¥230198808-199305

44337UNION, POWER STEERING SUCTION PORT

main44337-14020iMA70¥3,720198808-199305

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main96711-19013iMA70¥240198808-199305

44338UNION, PRESSURE PORT

main44308-35030iMA70..GEN,V;MA70..LHD..TWC..(C,EUR)¥1,600198808-199305

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-22001iMA70¥590198808-199305

OD=25.5,ID=22.5

main96711-19014iMA70¥210198808-199305

OD=17.0,ID=13.0

44341PLATE, VANE PUMP SIDE, FRONT

main44341-30030iMA70¥2,910198808-199305

44341ARING, O(FOR VANE PUMP FRONT SIDE PLATE)

main90301-21001iMA70¥320198808-199305

INNER

main90301-56002iMA70¥350198808-199305

OUTER

44342PLATE, VANE PUMP SIDE, REAR

main44342-30020iMA70¥2,910198808-199305

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90301-13004iMA70¥260198808-199305

INNER

main90301-30004iMA70¥260198808-199305

OUTER

44343SEAT, FLOW CONTROL SPRING

main44343-12030iMA70¥1,190198808-199305

44343ARING, O(FOR FLOW CONTROL SPRING SEAT)

main96711-19019iMA70¥210198808-199305

44348PLATE, VANE PUMP

main44345-12010iMA70¥660198808-199305

L=14.997,L=14.996-14.998

main44345-12020iMA70¥660198808-199305

L=14.995,L=14.994-14.996

main44345-12030iMA70¥660198808-199305

L=14.993,L=14.992-14.994

main44345-12040iMA70¥660198808-199305

L=14.991,L=14.990-14.992

main44345-12050iMA70¥660198808-199305

L=14.989,L=14.988-14.990

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-14081iMA70..TWC¥6,800198808-199305

main44360-14090iMA70..TWT¥10,000198808-199305

44391PLATE, POWER STEERING OIL RESERVOIR CAUTION

main44391-14010iMA70..TWT¥240198808-199305

44441BBRACKET, PUMP, FRONT

main44441-14050iMA70¥1,890198808-199305

4503

9011910072

main90119-10072¥160

9017912022

main90179-12022¥370

9020630001

main90206-30001¥320

9161160814

main91611-60814¥100

9161161016

main91611-61016¥270
