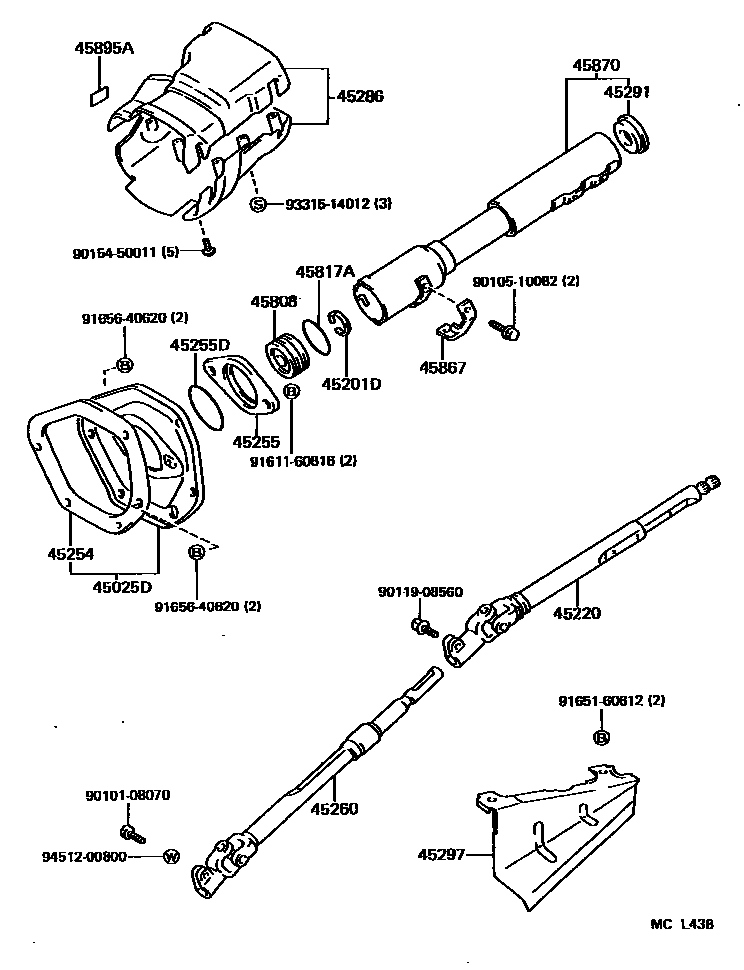

STEERING COLUMN & SHAFT

0001 1 0002 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-14150iMA70..RHD198808-199305

main45025-14160iMA70..LHD198808-199305

45201DRING(FOR STEERING MAIN SHAFT)

main96152-00300iMA70198808-199305

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-14190iMA70198808-199305

main45220-14200iMA70..ARL198808-199305

W(TEMS)

45254SHIELD, STEERING COLUMN HOLE

main45254-14050iMA70..RHD198808-199305

main45254-14060iMA70..LHD198808-199305

45255PLATE, STEERING COLUMN HOLE COVER

main45255-12030iMA70198808-199305

45255DRING, O(FOR STEERING COLUMN HOLE COVER PLATE)

main90301-59001iMA70198808-199305

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-14240iMA70..RHD..GEN198808-199305

main45260-14260iMA70..LHD..TWC198808-199305

main45260-14270iMA70..V198808-199008

sub45260-14260

main45260-14280iMA70..RHD..(ARL,C,EUR)198808-199008

main45260-14290iMA70..LHD..TWC..(C,EUR)198808-199008

W(*73)

sub45260-14300

main45260-14330iMA70..RHD..(ARL,C)199008-199305

main45260-14340iMA70..LHD..C199008-199305

45286COVER, STEERING COLUMN

main45286-14929-01iMA70..5F..ARL198908-199008

BLACK,BLACK,TRIM1#,3#,4#,8#

sub45286-14931

sub45286-14929

main45286-14929-01iMA70..RHD..(ARL,GEN)198808-198908

BLACK,TRIM1#,3#,4#,8#

sub45286-14931

sub45286-14929

main45286-14929-01iMA70..RHD..(C,EUR)198808-199008

BLACK,TRIM1#,4#,8#

sub45286-14931

sub45286-14929

main45286-14929-01iMA70..5F..ARL198908-199008

BLACK,TRIM1#,4#

sub45286-14931

sub45286-14929

main45286-14929-01iMA70..RHD..C199008-199305

BLACK,TRIM1#,8#

sub45286-14931

sub45286-14929

main45286-14929-01iMA70..RHD..C199008-199305

BLACK,TRIM1#,3#,8#

sub45286-14931

sub45286-14929

main45286-14929-01iMA70..SPR..5F..ARL;MA70..4FC..TWC..ARL198901-198908

BLACK,TRIM3#,8#

sub45286-14931

sub45286-14929

main45286-14932-01iMA70..LHD..(C,EUR)198808-199108

BLACK,TRIM1#,4#,8#

sub45286-14932

main45286-14932-01iMA70..V198808-198908

BLACK,TRIM1#,3#,4#,8#

sub45286-14932

main45286-14932-01iMA70..LHD..(C,EUR)198808-199305

BLACK,TRIM1#,3#,8#

sub45286-14932

main45286-14932-01iMA70..LHD198908-199008

BLACK,TRIM8#

sub45286-14932

main45286-14932-01iMA70..LHD..C199108-199305

BLACK,TRIM1#,8#

sub45286-14932

45291SEAL, MAIN SHAFT UPPER DUST

main45282-22010iMA70198808-199305

45297INSULATOR, STEERING YOKE HEAT

main45297-14030iMA70..RHD198808-199008

sub45297-14060

main45297-14040iMA70..LHD198808-199305

main45297-14060iMA70..RHD199008-199305

45808STOPPER SUB-ASSY, STEERING SHAFT THRUST

main45808-12030iMA70198808-199305

45817STOPPER, STEERING SHAFT THRUST

main45817-14010iMA70198808-199305

45817ARING, O(FOR STEERING SHAFT THRUST STOPPER)

main96711-24053iMA70198808-199305

45867RETAINER, STEERING MAIN SHAFT STOPPER

main45867-12010iMA70198808-199305

45870TUBE ASSY, STEERING COLUMN

main45870-14150iMA70198808-199305

main45870-14160iMA70..ARL198808-199305

W(TEMS)

45895APLATE, TILT STEERING CAUTION

main45895-20080iMA70198808-199305

9010108070

main90101-08070

9010510082

main90105-10082

9011908560

main90119-08560

9015450011

main90154-50011

9161160816

main91611-60816

9165160612

main91651-60612

9165640620

main91656-40620

9331514012

main93315-14012

9451200800

main94512-00800

25 parts on this diagram · 2 diagrams in section
