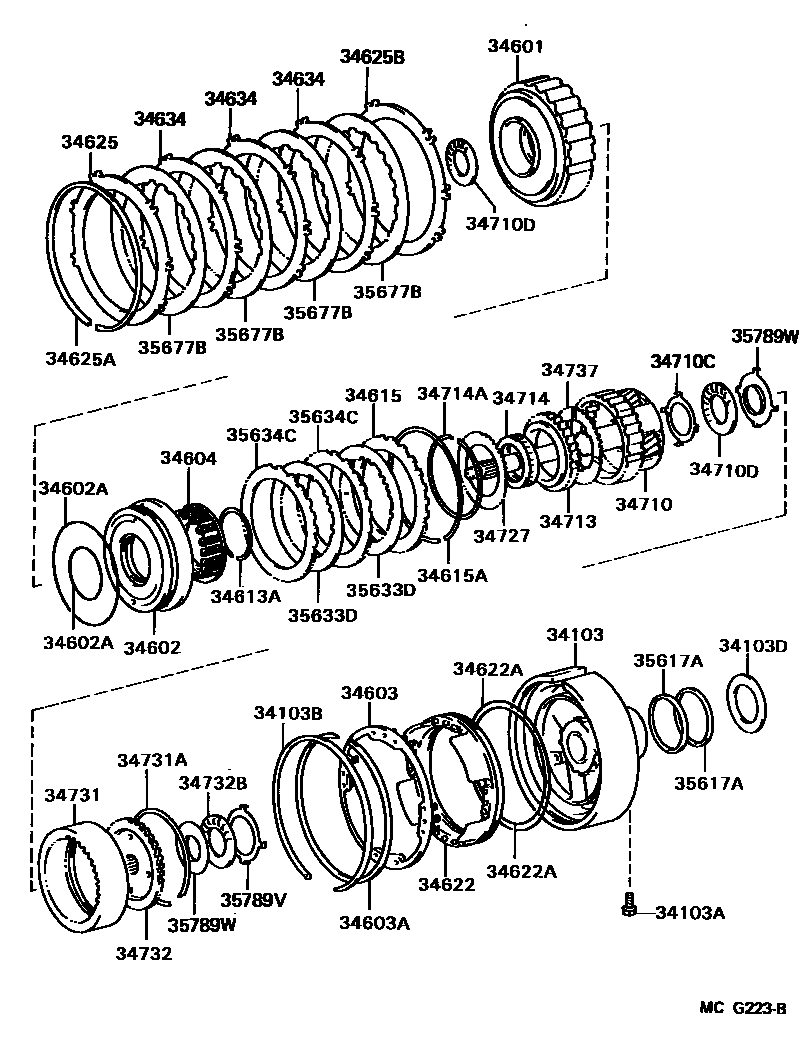

OVERDRIVE GEAR (ATM)

34103SUPPORT SUB-ASSY, OVERDRIVE

main34103-30011iMA70..RHD..4FC..TWC198808-199303

main34103-50010iMA70..SPR..4FC..C199303-199305

34103ABOLT (FOR OVERDRIVE SUPPORT)

main90105-08065iMA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN)198808-199304

main90105-08281iMA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN)199304-199305

34103BRING, HOLE SNAP (FOR OVERDRIVE SUPPORT)

main90521-99033iMA70..4FC198808-199305

34103DRACE, THRUST BEARING (FOR OVERDRIVE SUPPORT REAR)

main35789-30090iMA70..4FC198808-199305

34601DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34601-30030iMA70..4FC198808-199305

34602PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34602-30020iMA70..4FC198808-199305

34602ARING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON)

main90301-65005iMA70..4FC..(C,GEN,V)198808-199008

INNER,ID=65

sub90301-65006

main90301-65005iMA70..4FC..ARL198910-199305

INNER

sub90301-65006

main90301-65005iMA70..4FC..TWC..C198910-199305

W(ESC),INNER,ID=65

sub90301-65006

main90301-99036iMA70..4FC..(C,GEN,V)198910-199305

OUTER

sub90301-99086

main90301-99036iMA70..4FC..ARL198808-199008

OUTER,ID=112.5

sub90301-99086

main90301-99036iMA70..4FC..TWC..C198910-199305

W(ESC),OUTER,ID=112.5

sub90301-99086

34603SPRING SUB-ASSY, OVERDRIVE BRAKE RETURN

main34603-30010iMA70..SPR..4FC..C198808-199303

main34603-50010iMA70..RHD..4FC..TWT199303-199305

34603ARING, HOLE SNAP (FOR OVERDRIVE BRAKE RETURN SPRING)

main90521-99031iMA70..4FC198808-199305

34604SPRING SUB-ASSY, OVERDRIVE CLUTCH RETURN

main34604-30010iMA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN)198808-199305

34613ARING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH RETURN SPRING)

main90520-58001iMA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN)198808-199305

34615FLANGE, OVERDRIVE CLUTCH

main34615-30020iMA70..4FC198808-199305

T=3.6

sub34615-50050

main34615-30030iMA70..4FC198808-199305

T=3.5

sub34615-50040

main34615-30040iMA70..4FC198808-199305

T=3.4

sub34615-50030

main34615-30050iMA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN)198808-199305

T=3.3

sub34615-22030

main34615-30060iMA70..4FC198808-199305

T=3.2

sub34615-22020

main34615-30070iMA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN)198808-199305

T=3.1

sub34615-22010

34615ARING, HOLE SNAP (FOR OVERDRIVE CLUTCH FLANGE)

main90521-99001iMA70..4FC198808-199305

34622PISTON, OVERDRIVE BRAKE

main34622-14010iMA70..4FC..TWT198808-199303

main34622-30030iMA70..RHD..4FC..TWC198808-199303

main34622-35020iMA70..RHD..4FC..TWC199303-199305

sub34622-30070

main34622-50010iMA70..4FC..TWT199303-199305

sub34622-30080

34622ARING, O (FOR OVERDRIVE BRAKE PISTON)

main90301-99035iMA70..LHD..LB..4FC198910-199303

INNER

sub90301-99087

main90301-99035iMA70..4FC198808-199008

INNER,ID=131.6

sub90301-99087

main90301-99035iMA70..4FC..TWC..C198910-199303

W(ESC),INNER,ID=131.6

sub90301-99087

main90301-99037iMA70..LHD..LB..4FC198910-199303

OUTER

main90301-99037iMA70..4FC198808-199008

OUTER,ID=145.6

main90301-99037iMA70..4FC..TWC..C198910-199303

W(ESC),OUTER,ID=145.6

main90301-99063iMA70..RHD..4FC..TWT199303-199305

OUTER

sub90301-99090

main90301-99064iMA70..RHD..4FC..TWT199303-199305

INNER

sub90301-99088

34625FLANGE, OVERDRIVE BRAKE, NO.1

main34625-30040iMA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN)198808-199112

T=3.9

sub34625-30120

main34625-30050iMA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN)198808-199112

T=3.8

sub34625-30130

main34625-30060iMA70..4FC198808-199112

T=3.7

sub34625-30140

main34625-30070iMA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN)198808-199112

T=3.6

sub34625-30150

main34625-30080iMA70..4FC198808-199112

T=3.5

sub34625-30160

main34625-30090iMA70..4FC198808-199112

T=3.3

sub34625-30170

main34625-30100iMA70..4FC198808-199112

T=4.0,NO MARK

sub34625-30180

main34625-30120iMA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN)199112-199305

T=3.9,MARK 82

sub34625-22050

main34625-30130iMA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN)199112-199305

T=3.8,MARK 81

sub34625-22040

main34625-30140iMA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN)199112-199305

T=3.7,MARK 80

sub34625-50040

main34625-30150iMA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN)199112-199305

T=3.6,MARK 79

sub34625-50030

main34625-30160iMA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN)199112-199305

T=3.5,MARK 78

sub34625-50020

main34625-30170iMA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN)199112-199305

T=3.3,MARK 77

sub34625-22030

main34625-30180iMA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN)199112-199305

T=4.0,MARK 83

sub34625-22060

34625ARING, HOLE SNAP (FOR OVERDRIVE BRAKE FLANGE)

main90521-99027iMA70..4FC198808-199305

34625BFLANGE, OVERDRIVE BRAKE, NO.2

main34625-30030iMA70..4FC198808-199112

sub34625-30110

main34625-30110iMA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN)199112-199305

34634PLATE, OVERDRIVE BRAKE

main34634-30020iMA70..4FC..TWC198808-199112

sub34634-30021

main34634-30021iMA70..LB..4FC..TWC;MA70..SPR..4FC..GEN199112-199305

34710GEAR ASSY, OVERDRIVE PLANETARY

main34710-30030iMA70..4FC198808-199305

sub34710-30031

sub34732-22011

sub35789-30052

sub90374-31008

34710CRACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR)

main35789-30050iMA70..4FC198808-199305

34710DBEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY GEAR)

main90374-25005iMA70..4FC198808-199305

34713RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE)

main34713-32010iMA70..4FC198808-199305

34714CLUTCH, 1 WAY(FOR OVERDRIVE)

main35791-30040iMA70..4FC198808-198907

sub35791-50010

main35791-50010iMA70..4FC198907-199305

34714ARING, HOLE SNAP(FOR 1 WAY CLUTCH)

main90521-99028iMA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN)198808-199305

34727PLATE, RETAINING (FOR OVERDRIVE)

main34727-32010iMA70..4FC198808-199305

34731GEAR, OVERDRIVE PLANETARY RING

main34731-30030iMA70..4FC198808-199305

34731ARING, HOLE SNAP (FOR OVERDRIVE PLANETARY RING GEAR)

main90521-99024iMA70..4FC198808-199305

34732FLANGE, OVERDRIVE PLANETARY RING GEAR

main34732-30030iMA70..4FC198808-199305

34732BBEARING, THRUST(FOR OVERDRIVE PLANETARY RING GEAR FLANGE)

main90374-32004iMA70..4FC198808-199305

sub90374-35004

34737WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.3

main34737-30030iMA70..4FC198808-199305

35617ARING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE)

main35617-30020iMA70..4FC198808-199305

35633DDISC, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)

main35633-30040iMA70..4FC198808-199305

sub35633-14010

35634CPLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)

main34616-30010iMA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN)198808-199305

T=2.0

35677BDISC, CLUTCH (FOR OVERDRIVE BRAKE)

main34633-30010iMA70..4FC..TWC198808-199305

35789VRACE, THRUST BEARING

main35789-30080iMA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN)198808-199305

35789WRACE, THRUST BEARING

main35789-30060iMA70..4FC198808-199305

FR

main35789-30070iMA70..4FC198808-199305

RR

37 parts on this diagram · 1 diagram in section
