SPEEDOMETER DRIVEN GEAR (ATM)

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-20030iMA70..4FC..(GEN,V)198910-199108

sub33403-29065

main33403-29235iMA70..4FC..TWC..(C,EUR,GEN,V)198808-199305

N=20,MARK 20:6

main33403-69195iMA70..4FC..TWT198808-199305

N=18,MARK 18:6

main33482-39315iMA70..4FC..TWC..ARL198808-198908

N=21,MARK 21:6

35404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-30040iMA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN)198808-199305

35404ARING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90301-18004iMA70..4FC198808-199305

35404DPLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-30020iMA70..4FC198808-199305

35404ESEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iMA70..4FC198808-199305

9161160814

main91611-60814

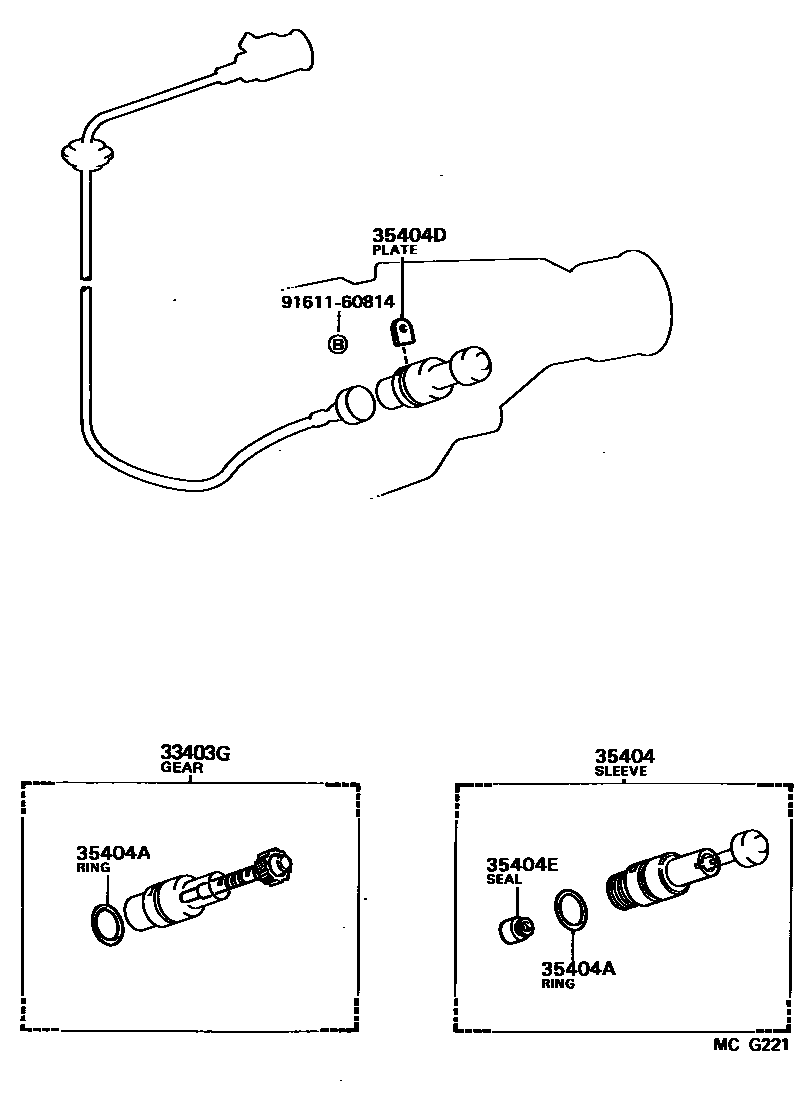

6 parts on this diagram · 1 diagram in section
