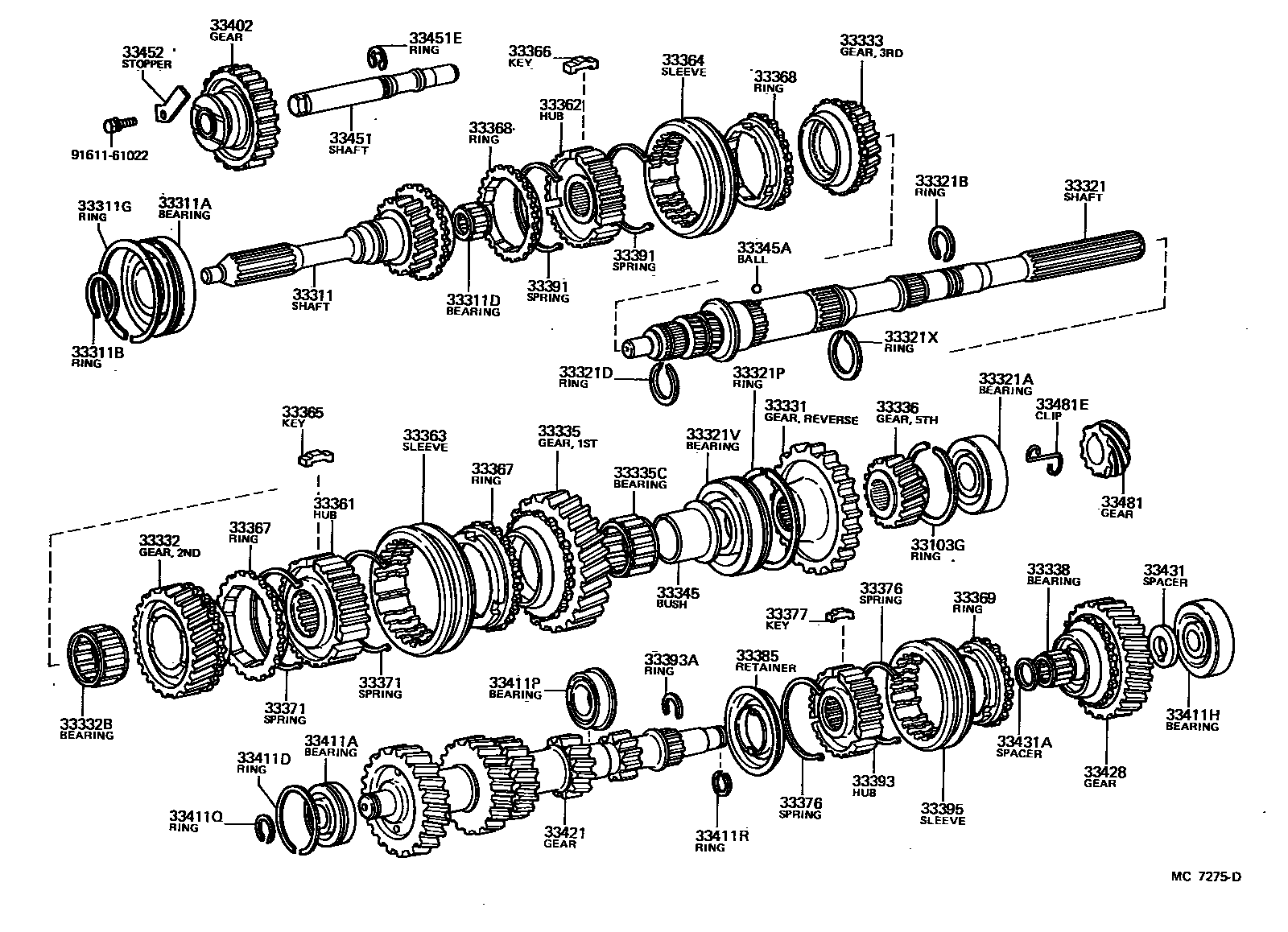

TRANSMISSION GEAR (MTM)
33103GRING, HOLE SNAP(FOR REAR BEARING SET)
33311SHAFT, INPUT
sub33301-30H00
sub33301-30H10
sub33301-30H20
sub33301-30H30
sub33301-30H40
sub33301-30H50
sub33301-30H60
sub33301-30H70
sub33301-30H80
sub33301-30H90
33311ABEARING (FOR INPUT SHAFT FRONT)
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
T=2.30-2.35,MARK 11
T=2.35-2.40,MARK 12
T=2.05,MARK 1
T=2.10,MARK 2
T=2.15,MARK 3
T=2.20,MARK 4
T=2.25,MARK 5
T=2.10,MARK A
T=2.15,MARK B
T=2.20,MARK C
T=2.25,MARK D
T=2.30,MARK E
T=2.35,MARK F
T=2.40,MARK G
33311GRING, SHAFT SNAP (FOR FRONT BEARING)
33321SHAFT, OUTPUT
sub33321-35210
sub33362-35060
sub90520-26072
sub90520-26073
sub90520-26074
sub90520-26075
sub90520-26076
sub90520-26077
sub90520-26078
sub33321-35190
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=2.68,MARK 14
T=2.74,MARK 15
T=2.43-2.48,MARK 10
T=2.49-2.54,MARK 11
T=2.55-2.60,MARK 12
T=2.61-2.66,MARK 13
T=2.31-2.36,MARK 8
T=2.37-2.42,MARK 9
T=2.65,MARK A
T=2.70,MARK B
T=2.75,MARK C
T=2.80,MARK D
T=2.85,MARK E
T=2.90,MARK F
T=2.95,MARK G
T=3.00,MARK H
T=3.05,MARK J
T=3.10,MARK K
T=3.15,MARK L
T=3.20,MARK M
T=3.25,MARK N
T=3.30,MARK P
T=3.35,MARK Q
T=3.40,MARK R
T=3.45,MARK S
T=0.95-1.05,NO MARK
33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)
T=1.75-1.80,MARK C-1
T=1.86,MARK 11
T=1.92,MARK 12
T=1.98,MARK 13
T=2.04,MARK 14
T=2.10,MARK 15
T=1.80-1.85,MARK D
T=1.80,MARK A
T=1.85,MARK B
T=1.90,MARK C
T=1.95,MARK D
T=2.00,MARK E
T=2.05,MARK F
T=2.10,MARK G
33321PRING, SNAP (FOR OUTPUT SHAFT CENTER BEARING)
T=1.65
33321VBEARING (FOR OUTPUT SHAFT CENTER)
33321XRING, SHAFT SNAP (FOR OUTPUT SHAFT CENTER BEARING)
T=2.43-2.48,MARK 10
T=2.31-2.36,MARK 8
T=2.37-2.42,MARK 9
T=2.61,MARK 17
T=2.67,MARK 18
T=2.73,MARK 19
T=2.79,MARK 20
T=2.85,MARK 21
T=2.91,MARK 22
T=2.97,MARK 23
T=2.30-2.35,MARK 11
T=2.40,MARK 13
T=2.50,MARK 15
T=2.35-2.40,MARK 12
T=2.45,MARK 14
T=2.55,MARK 16
T=2.25,MARK 5
33331GEAR, REVERSE
33333GEAR, 3RD
sub33034-30011
33338BUSH OR BEARING, 5TH GEAR
33345BUSH, 1ST GEAR
33345ABALL (FOR 1ST GEAR BUSH)
33363SLEEVE, TRANSMISSION HUB, NO.1
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33367RING, SYNCHRONIZER, NO.1
33368RING, SYNCHRONIZER, NO.2
33369RING, SYNCHRONIZER, NO.3
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33376SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB)
33377KEY, SYNCHROMESH SHIFTING (FOR NO.3 CLUTCH HUB)
33385RETAINER, SHIFTING KEY
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33393HUB, TRANSMISSION CLUTCH, NO.3
33393ARING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)
T=2.06-2.11
T=2.12-2.17
T=2.18-2.23
T=2.24-2.29
33402GEAR SUB-ASSY, REVERSE IDLER
33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1
T=1.07,OD=55.6
T=1.07,OD=62
33411PBEARING, COUNTERSHAFT CENTER
33411QRING, COUNTER GEAR FRONT BEARING SNAP, NO.2
T=2.00,MARK A
T=2.05,MARK B
T=2.10,MARK C
T=2.15,MARK D
T=2.20,MARK E
T=2.10,MARK A
T=2.15,MARK B
T=2.20,MARK C
T=2.25,MARK D
T=2.30,MARK E
T=2.35,MARK F
T=2.10-2.15
T=2.20-2.25
T=2.05-2.10
T=2.15-2.20
T=2.25-2.30
T=2.30-2.35
T=2.35-2.40
33411RRING, SNAP, COUNTER GEAR REAR BEARING
T=1.90-1.95,MARK 1
T=1.96-2.01,MARK 2
T=2.02-2.07,MARK 3
T=2.08-2.13,MARK 4
T=2.14-2.19,MARK 5
T=2.20-2.25,MARK 6
T=2.26-2.31,MARK 7
33421GEAR, COUNTER
sub33421-14091
sub90520-20066
sub90520-20067
sub90520-20068
sub90520-20069
sub90520-20070
sub90520-20071
sub90520-20072
sub90520-20073
sub90520-23057
sub90520-23058
sub90520-23059
sub90520-23060
sub90520-23061
sub90520-23062
sub33301-30H00
33431SPACER, COUNTER GEAR, NO.1
33431ASPACER, COUNTER GEAR, NO.2
33451SHAFT, REVERSE IDLER GEAR
33451ERING, E (FOR REVERSE IDLER GEAR SHAFT)
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=10,MARK 10X34-36
N=10,MARK 10X31-33
N=6
33481ECLIP (FOR SPEEDOMETER DRIVE GEAR)
9161161022
main91611-61022
57 parts on this diagram · 3 diagrams in section
