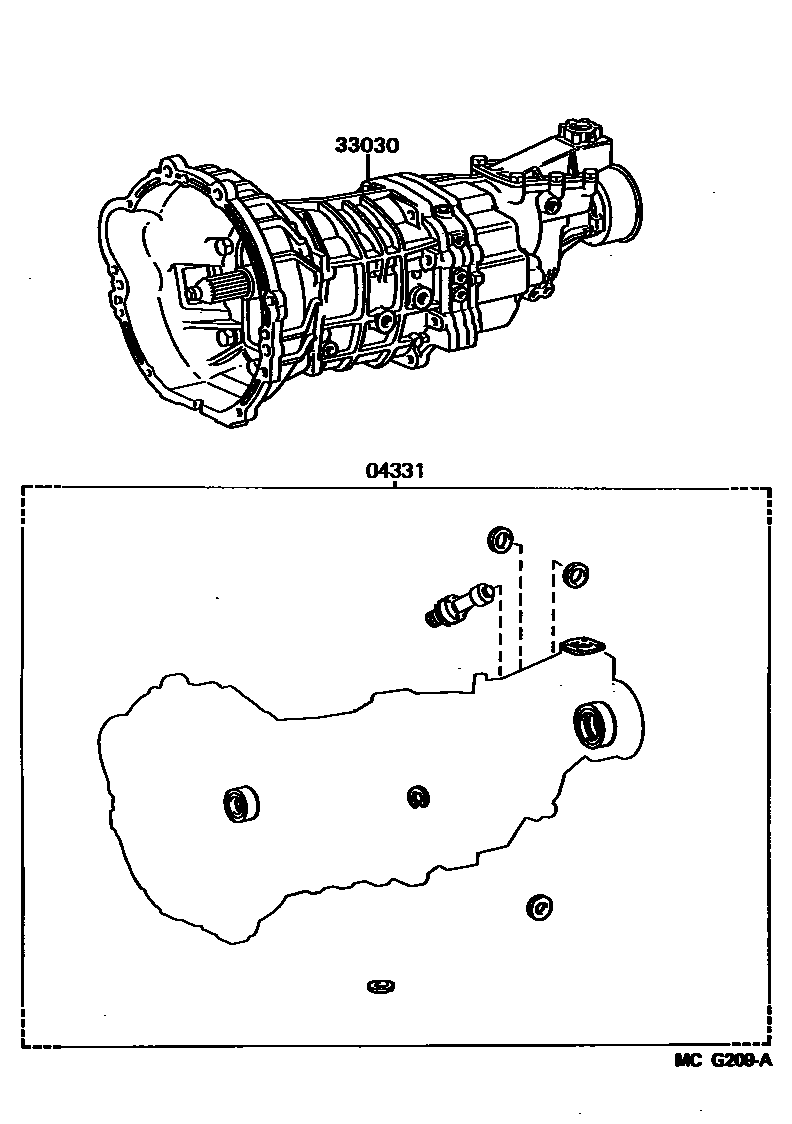

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1W5# 0002 1R154

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-14040iMA70..5F..TWT198808-199305

main04331-22040iMA70..5F..TWC198808-199305

33030TRANSMISSION UNIT ASSY, MANUAL

main33030-1B041iMA70..5F..TWT198808-199305

sub33030-1B042

sub90331-18001

sub90461-08365

main33030-1B051iMA70..5F..TWT..C198808-199305

W(*66)

sub33030-1B042

sub89544-14020

sub90461-08365

sub91651-60820

main33030-1B130iMA70..5F..TWC..(C,EUR,GEN,V)198808-199110

sub33030-1B260

main33030-1B140iMA70..5F..TWC..ARL198808-198908

sub33030-1B240

main33030-1B150iMA70..5F..TWC..(C,EUR)198808-199110

W(*66)

sub33030-1B270

main33030-1B260iMA70..5F..TWC199110-199305

main33030-1B270iMA70..5F..TWC..C199110-199305

W(*66)

2 parts on this diagram · 2 diagrams in section
