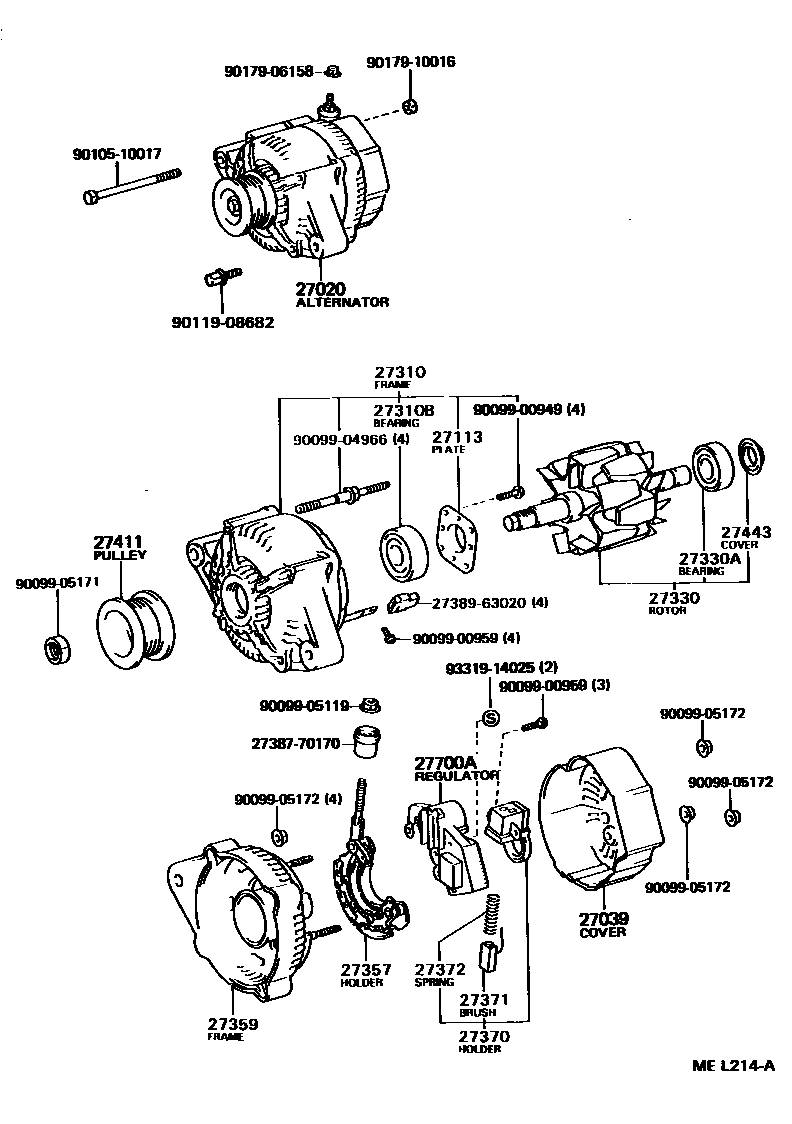

ALTERNATOR

0001 112V 70A 0002 112V 80A

27020ALTERNATOR ASSY

main27060-42030i7MGTE..MA70;7MGE..MA70..4FC;7MGE..MA70..5F..(GEN,V)198808-199305

12V 80A

main27060-63082i7MGE..MA70..5F..(ARL,C,EUR)198808-199305

12V 70A

27039COVER, ALTERNATOR REAR END

main27039-15170i7MGE..MA70..5F..C199109-199305

sub27039-15171

main27039-42010i7MGTE..MA70;7MGE..MA70..4FC;7MGE..MA70..5F..(GEN,V)198808-199305

sub27039-16310

main27039-72010i7MGE..MA70..5F..C198808-199109

sub27039-15170

27113PLATE, BEARING RETAINER, ALTERNATOR

main27312-42010i7MGTE..MA70;7MGE..MA70..4FC;7MGE..MA70..5F..(GEN,V)198808-199305

main27312-70200i7MGE..MA70..5F..(ARL,C,EUR)198808-199305

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-42010i7MGTE..MA70;7MGE..MA70..4FC;7MGE..MA70..5F..(GEN,V)198808-199305

main27310-70100i7MGE..MA70..5F..(ARL,C,EUR)198808-199305

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10160i7MGTE..MA70;7MGE..MA70..4FC;7MGE..MA70..5F..(GEN,V)198808-199305

sub90099-10219

main90099-10178i7MGE..MA70..5F..(ARL,C,EUR)198808-199305

27330ROTOR ASSY, ALTERNATOR

main27330-42010i7MGTE..MA70;7MGE..MA70..4FC;7MGE..MA70..5F..(GEN,V)198808-199008

sub27330-76030

main27330-72101i7MGE..MA70..5F..(ARL,C,EUR)198808-199305

main27330-76030i7MGTE..MA70;7MGE..MA70..GEN,V;7MGE..MA70..4FC..C199008-199305

sub27330-16390

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i7MG#..MA70198808-199305

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-42010i7MGTE..MA70;7MGE..MA70..4FC;7MGE..MA70..5F..(GEN,V)198808-199112

sub27357-50040

main27357-50040i7MGTE..MA70;7MGE..MA70..GEN,V;7MGE..MA70..4FC..C199112-199305

main27357-63020i7MGE..MA70..5F..C198808-199305

27359FRAME, ALTERNATOR RECTIFIER END

main27359-42010i7MGTE..MA70;7MGE..MA70..4FC;7MGE..MA70..5F..(GEN,V)198808-199305

sub27359-74330

main27359-43160i7MGE..MA70..5F..C198808-199305

sub27359-43161

sub27384-16380

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-35060i7MGE..MA70..5F..C199207-199305

main27370-42010i7MGTE..MA70;7MGE..MA70..4FC;7MGE..MA70..5F..(GEN,V)198808-199305

sub27370-75060

main27370-63021i7MGE..MA70..5F..C198808-199102

sub27370-70300

main27370-70300i7MGE..MA70..5F..C199102-199207

sub27370-35060

27371BRUSH, ALTERNATOR

main27371-63020i7MGE..MA70..5F..(ARL,C,EUR)198808-199105

sub27371-70300

main27371-70300i7MGE..MA70..5F..C199105-199305

27372SPRING, ALTERNATOR BRUSH

main27372-63020i7MGE..MA70..5F..C198808-199305

sub27372-87501

27411PULLEY, ALTERNATOR

main27411-16180i7MGE..MA70..5F..(ARL,C,EUR)198808-199305

main27411-42030i7MGTE..MA70;7MGE..MA70..4FC;7MGE..MA70..5F..(GEN,V)198808-199305

27443COVER, ALTERNATOR BEARING

main27443-63020i7MG#..MA70198808-199305

27700AREGULATOR ASSY, GENERATOR

main27700-16010i7MGTE..MA70;7MGE..MA70..4FC;7MGE..MA70..5F..(GEN,V)198808-199305

sub27700-66020

main27700-63021i7MGE..MA70..5F..(ARL,EUR)198808-198812

sub27700-70030

main27700-70030i7MGE..MA70..5F..(ARL,C,EUR)198812-199105

main27700-72080i7MGE..MA70..5F..C199105-199305

2738770170INSULATOR, TERMINAL

main27387-70170

2738963020INSULATOR, TERMINAL

main27389-63020

9009900949

main90099-00949

9009900959

main90099-00959

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9010510017

main90105-10017

9011908682

main90119-08682

9017906158

main90179-06158

9017910016

main90179-10016

9331914025

main93319-14025

28 parts on this diagram · 2 diagrams in section
