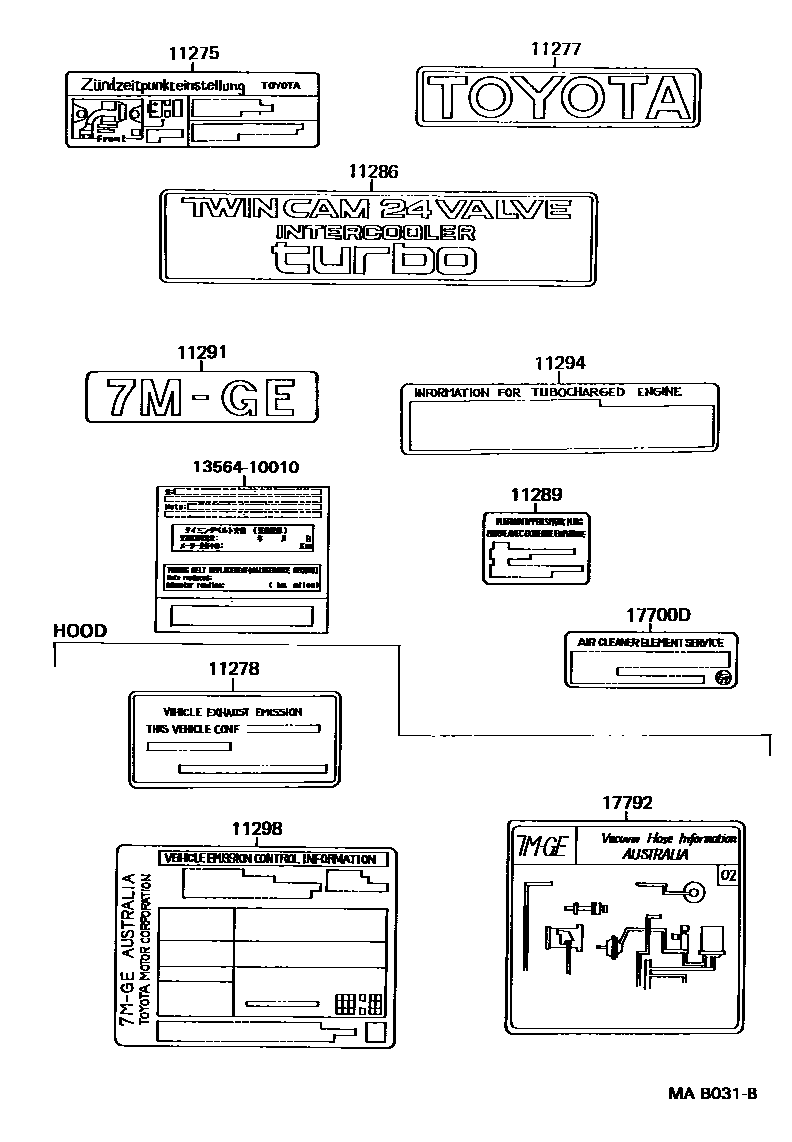

CAUTION PLATE & NAME PLATE (ENGINE)

11275PLATE, IGNITION TIMING ADJUSTING CAUTION

main11275-42020i7MGTE..MA70..LHD198808-199305

11277PLATE, ENGINE SPECIFICATION, NO.2

main11277-42010i7MGTE..MA70198808-199305

11278PLATE, ENGINE EMISSION IDENTIFICATION

main11278-16020i7MGE..MA70..RHD..GEN198808-198908

SINGAPORE SPEC

sub11278-42010

11286PLATE, ENGINE SPECIFICATION

main11286-42010i7MGTE..MA70198808-199305

11289PLATE, SPARK PLUG CAUTION

main11289-73020i7MGTE..MA70;7MGE..MA70..ARL198808-199305

11291PLATE, ENGINE NAME

main11291-42020i7MGTE..MA70198808-199305

main11291-42030i7MGE..MA70198808-199305

11294PLATE, ENGINE CAUTION, NO.2

main11294-42010i7MGTE..MA70198808-199305

11298PLATE, EMISSION CONTROL INFORMATION

main11298-42160i7MGTE..MA70..LHD198808-198810

SWEDEN SPEC

main11298-42170i7MGTE..MA70..ARL198808-199305

main11298-42180i7MGTE..MA70..LHD198808-199305

main11298-42190i7MGE..MA70..ARL198808-198908

main11298-42220i7MGTE..MA70..LHD198901-198908

SWEDEN SPEC OR NORWAY SPEC

main11298-42221i7MGTE..MA70..LHD199108-199305

SWEDEN SPEC OR NORWAY SPEC

17700DPLATE, ENGINE CAUTION

main11293-42090i7MGE..MA70..EUR,GEN,V198808-199305

main11293-42110i7MGE..MA70..C198908-199305

main17791-28010i7MGTE..MA70;7MGE..MA70..ARL198808-199305

sub17791-16040

17792PLATE, ENGINE VACUUM HOSE INFORMATION

main17792-42040i7MGTE..MA70..ARL;7MGTE..MA70..LHD198808-199008

main17792-42041i7MGTE..MA70..ARL;7MGTE..MA70..LHD199008-199305

main17792-42080i7MGE..MA70..ARL198808-198908

1356410010LABEL, TIMING BELT REPLACEMENT INFORMATION

main13564-10010

11 parts on this diagram · 1 diagram in section
