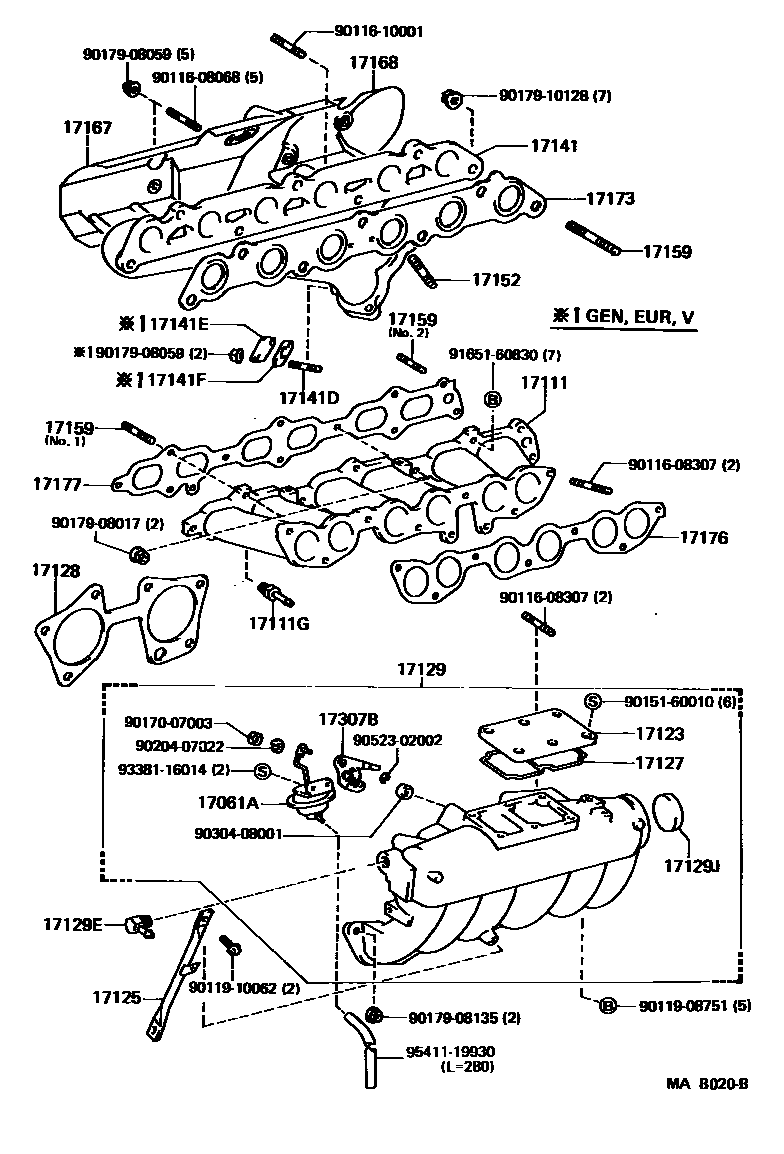

MANIFOLD

0001 1 0002 1 0003 1

17061ADIAPHRAGM SUB-ASSY

main17061-42010i7MGE..MA70198808-199305

17111MANIFOLD, INTAKE

main17111-42020i7MG#..MA70198808-199305

17111GUNION(FOR INTAKE MANIFOLD WATER)

main90404-51096i7MG#..MA70198808-199305

17123COVER, SURGE TANK

main17123-42020i7MGE..MA70198808-199305

17125STAY, SURGE TANK, NO.1

main17125-42010i7MG#..MA70198808-198901

main17125-42020i7MG#..MA70198901-199305

17127GASKET, SURGE TANK COVER

main17127-42010i7MGE..MA70198808-199305

17128GASKET, SURGE TANK

main17128-42010i7MGE..MA70198808-198912

sub17128-42020

main17128-42020i7MGE..MA70198912-199305

17129TANK, INTAKE AIR SURGE

main17109-42020i7MGTE..MA70198808-199305

main17109-42060i7MGE..MA70198808-199305

17129EUNION, NO.3

main90404-54033i7MG#..MA70198808-199011

sub90404-54039

main90404-54039i7MG#..MA70199011-199305

17129JPLUG, TIGHT(FOR INTAKE AIR SURGE TANK)

main90331-55001i7MGE..MA70198808-199305

main96411-44000i7MGTE..MA70198808-199305

OD=40,FR

main96411-45000i7MGTE..MA70..LB;7MGTE..MA70..SPR..C;7MGTE..MA70..SPR..5F..ARL198808-199305

OD=50,RR

17141MANIFOLD, EXHAUST

main17141-42010i7MGTE..MA70198808-199305

main17141-43010i7MGE..MA70198808-199305

17141DBOLT, STUD(FOR OXYGEN SENSOR)

main90116-08128i7MG#..MA70198808-199305

17141EPLATE, EXHAUST MANIFOLD

main17148-41010i7MGE..MA70..EUR,GEN,V198808-199305

17141FGASKET(FOR EXHAUST MANIFOLD PLATE)

main89466-20020i7MGE..MA70198908-199305

main89466-30010i7MGE..MA70..EUR,GEN,V198808-198908

sub89466-20020

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10058i7MG#..MA70198808-198905

main90116-10146i7MG#..MA70198905-199305

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-08178i7MG#..MA70198808-199305

INTAKE MANIFOLD,NO.2

main90116-08230i7MG#..MA70198808-199305

INTAKE MANIFOLD,NO.1

main90116-10025i7MG#..MA70198808-199305

EXHAUST MANIFOLD

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-42020i7MGE..MA70198808-199305

main17167-42040i7MGTE..MA70198808-199305

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-42020i7MGE..MA70198808-199305

main17168-42030i7MGTE..MA70198808-199305

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-42010i7MGTE..MA70198808-199305

main17173-43020i7MGE..MA70198808-199105

sub17173-43040

main17173-43040i7MGE..MA70199105-199305

17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD

main17176-42010i7MG#..MA70198808-198912

sub17176-42020

main17176-42020i7MG#..MA70198912-199305

main17176-42020i7MGTE..MA70..LHD198808-198912

SWEDEN SPEC

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-42010i7MG#..MA70198808-198912

sub17177-42020

main17177-42020i7MGTE..MA70..LHD198808-198912

SWEDEN SPEC

main17177-42020i7MG#..MA70198912-199305

17307BLEVER SUB-ASSY, INTAKE AIR CONTROL

main17307-42020i7MGE..MA70198808-199305

9011608068

main90116-08068

9011608307

main90116-08307

9011610001

main90116-10001

9011908751

main90119-08751

9011910062

main90119-10062

9015160010

main90151-60010

9017007003

main90170-07003

9017908017

main90179-08017

9017908059

main90179-08059

9017908135

main90179-08135

9017910128

main90179-10128

9020407022

main90204-07022

9030408001

main90304-08001

9052302002

main90523-02002

9165160830

main91651-60830

9338116014

main93381-16014

9541119930

main95411-19930

39 parts on this diagram · 3 diagrams in section
