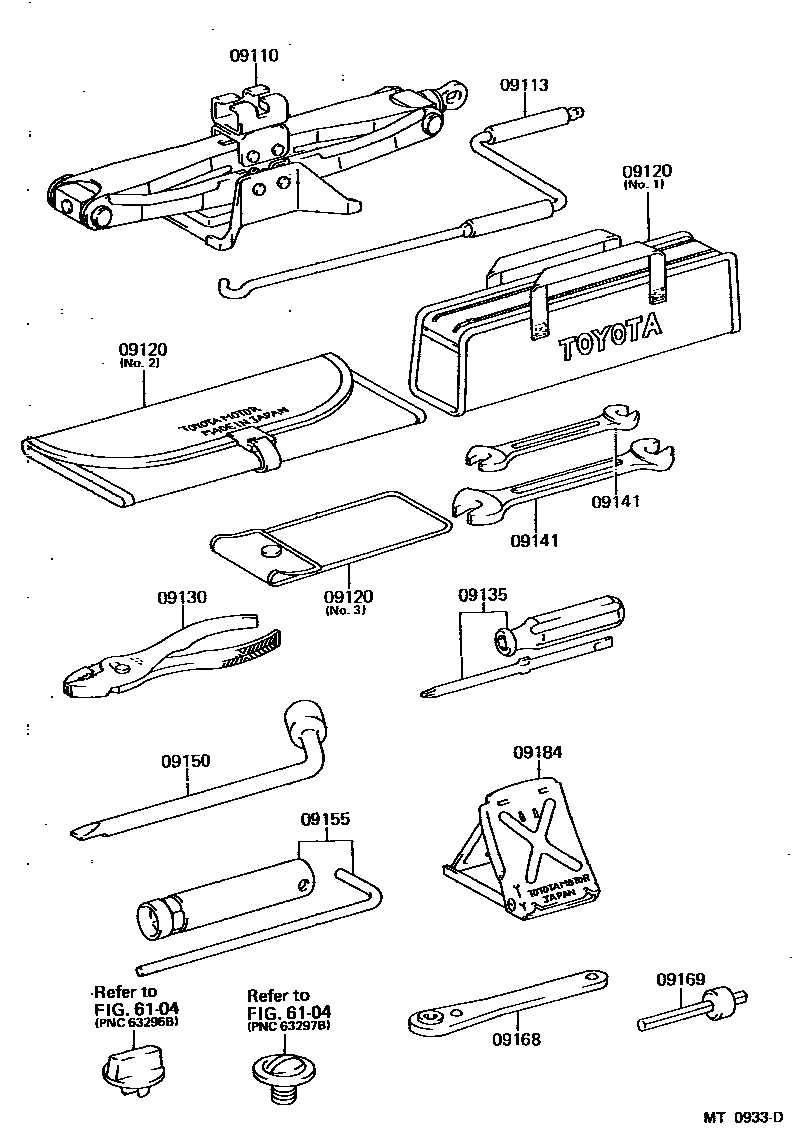

STANDARD TOOL

09110JACK ASSY

main09111-14060iMA70..C,GEN,V199010-199305

main09111-24030iMA70..C,EUR,GEN,V198808-199010

09113HANDLE, JACK

main09113-24020iMA70198808-199305

sub09113-14030

09120BAG, TOOL

main09120-10030iMA70198808-199010

NO.1

main09120-12011iMA70..TWC;MA70..LB..ARL199010-199305

NO.1

main09120-14011iMA70..SPR198808-199305

NO.3

main09120-14040iMA70198808-199305

NO.2

09130PLIERS

main99913-11500iMA70198808-199305

09135DRIVER, SCREW

main99915-10700iMA70198808-199305

09141SPANNER

main99914-10810iMA70198808-199305

8 X 10

main99914-11214iMA70198808-199305

12 X 14

09150WRENCH, HUB NUT BOX

main09150-40010iMA70198808-199305

09155WRENCH, SPARK PLUG

main09155-00100iMA70..EUR,GEN,V198808-199305

09168WRENCH, ROOF PANEL

main09168-14010iMA70..SPR198808-199305

09169HANDLE, ROOF PANEL

main09169-14010iMA70..SPR198808-199305

09184STOPPER, WHEEL

main09184-00010iMA70198808-199305

6104

12 parts on this diagram · 1 diagram in section
