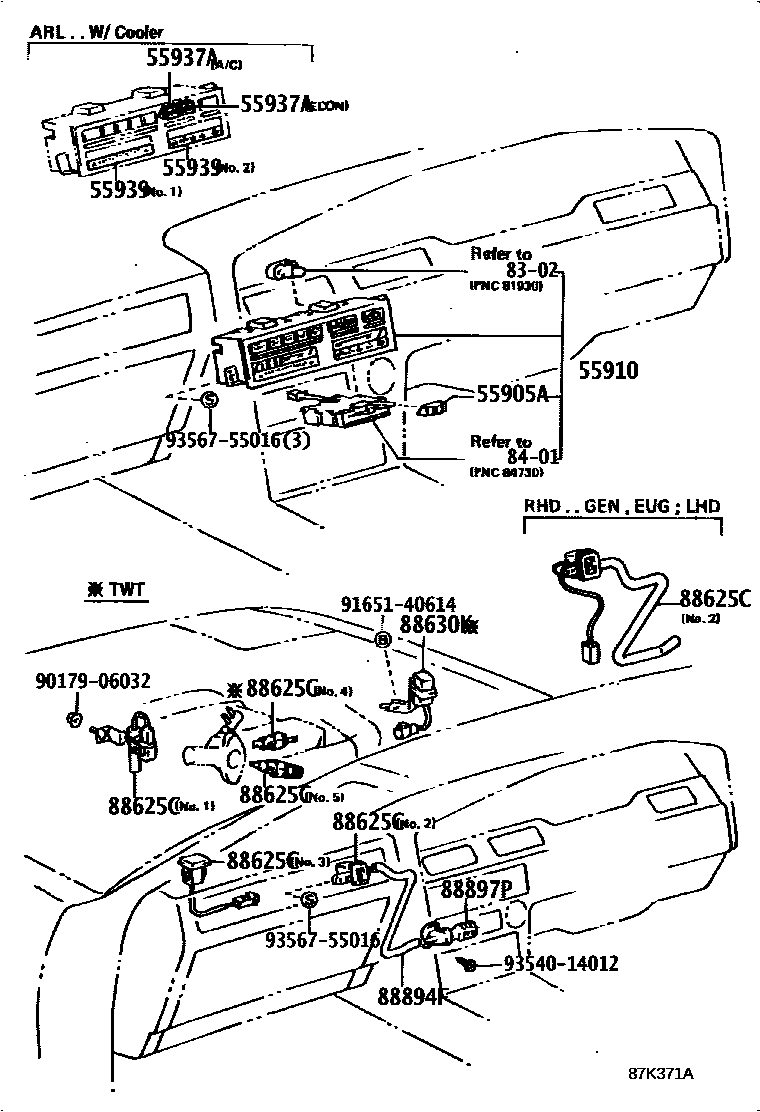

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
55905AKNOB, HEATER CONTROL
55910CONTROL ASSY, HEATER OR BOOST VENTILATOR
sub55900-14351
sub55900-14440
sub55900-14401
sub55900-14490
sub55900-14440
55937AKNOB, COOLER CONTROL LEVER
A/C SWITCH
ECON SWICH
55939ORNAMENT, HEATER CONTROL
8302
8401
88625CTHERMISTOR, COOLER
NO.2
NO.3
NO.2
NO.2
NO.1
NO.5
NO.4
88630KRELAY ASSY
88894FHOSE, AIR
88897PASPIRATOR
9017906032
main90179-06032
9165140614
main91651-40614
9354014012
main93540-14012
9356755016
main93567-55016
14 parts on this diagram · 3 diagrams in section
