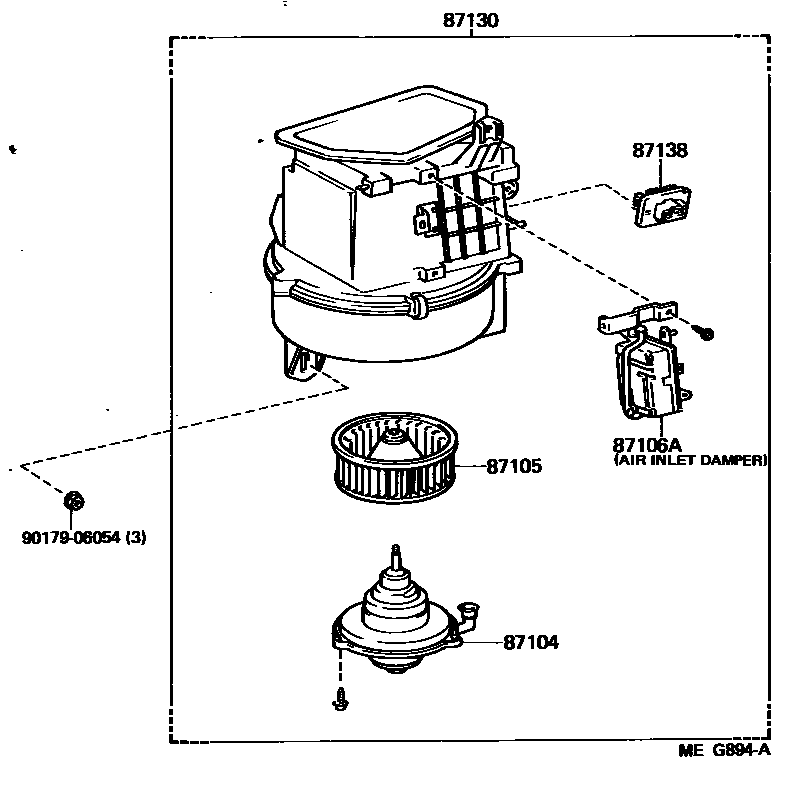

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1 0002 1 0003 1

87104MOTOR SUB-ASSY, HEATER BLOWER

main87104-24020iMA70198601-198808

87105FAN SUB-ASSY, HEATER BLOWER

main87105-14020iMA70..LHD198601-198808

main87105-14030iMA70..RHD198601-198808

87106ASERVO SUB-ASSY, DAMPER

main87106-14010iMA70..LHD198601-198808

AIR INLET DAMPER

main87106-14020iMA70..LHD198601-198808

MODE DAMPER

sub87106-14070

main87106-14030iMA70..LHD198601-198808

AIR MIX DAMPER

main87106-14040iMA70..RHD198601-198808

AIR INLET DAMPER

main87106-24020iMA70..RHD198601-198808

MODE DAMPER

main87106-24030iMA70..RHD198601-198808

AIR MIX DAMPER

87130BLOWER ASSY, HEATER, FRONT

main87130-14090iMA70..RHD198601-198808

main87130-14110iMA70..RHD..(EUR,GEN)198601-198808

W/*AAC

main87130-14120iMA70..LHD198601-198808

main87130-14130iMA70..LHD198601-198808

W/*AAC

87138RESISTOR, HEATER BLOWER

main87138-14090iMA70198601-198808

main87138-24030iMA70..ARL,EUR,GCC,GEN198601-198808

W/*AAC

9017906054

main90179-06054

6 parts on this diagram · 3 diagrams in section
