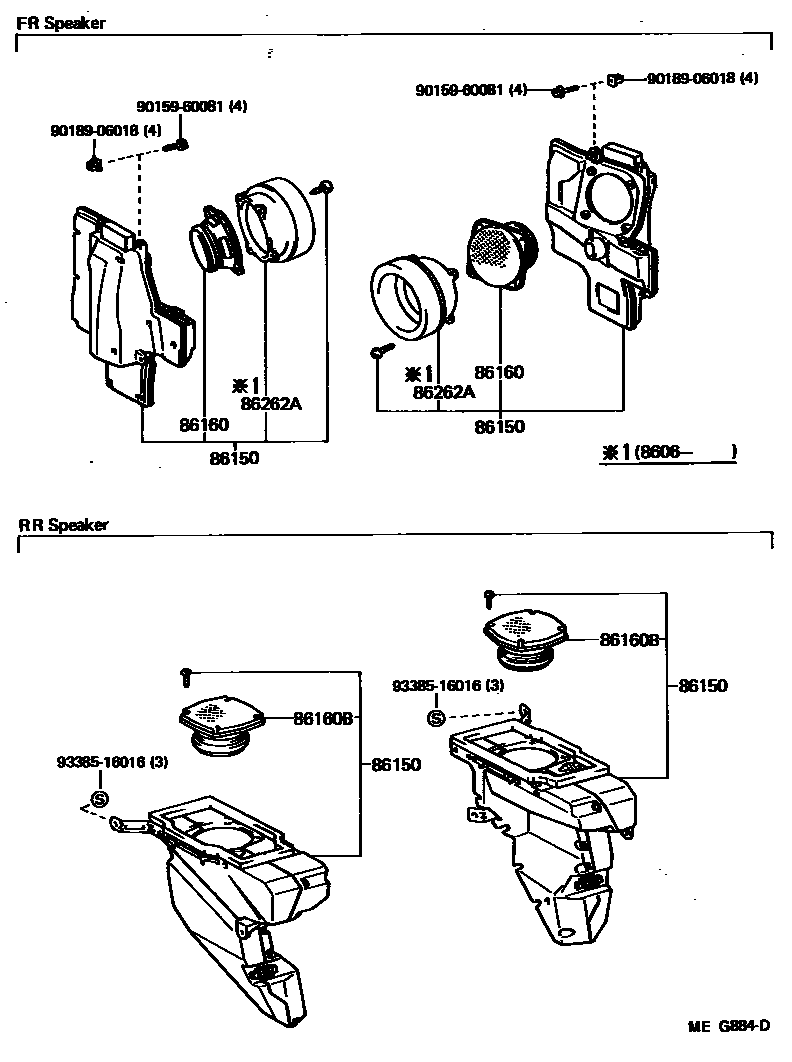

SPEAKER

86150SPEAKER ASSY, W/BOX, NO.1

main86150-14020iMA70..ARL,EUR,GCC,GEN198601-198606

FR-RH

main86150-14021iMA70..ARL,EUR,GCC,GEN198606-198708

FR-RH

main86150-14022iMA70..ARL,EUR,GCC,GEN198708-198808

FR-RH

sub86150-14060

main86150-14030iMA70..ARL,EUR,GCC,GEN198601-198606

FR-LH

main86150-14031iMA70..ARL,EUR,GCC,GEN198606-198708

FR-LH

main86150-14032iMA70..ARL,EUR,GCC,GEN198708-198808

FR-LH

sub86150-14070

main86150-14040iMA70..ARL,EUR,GCC,GEN198601-198708

RR-RH

main86150-14041iMA70..ARL,EUR,GCC,GEN198708-198808

RR-RH

sub86150-14081

main86150-14050iMA70..ARL,EUR,GCC,GEN198601-198708

RR-LH

main86150-14051iMA70..ARL,EUR,GCC,GEN198708-198808

RR-LH

sub86150-14091

86160SPEAKER ASSY, FRONT NO.1

main86160-14170×2iMA70..ARL,EUR,GCC,GEN198601-198808

86160BSPEAKER ASSY, REAR

main86160-14280×2iMA70..ARL,EUR,GCC,GEN198601-198808

86262ACOVER, SPEAKER, FRONT

main86262-14010iMA70..ARL,EUR,GCC,GEN198606-198808

RH

main86262-14020iMA70..ARL,EUR,GCC,GEN198606-198808

LH

9015960081

main90159-60081

9018906018

main90189-06018

9338516016

main93385-16016

7 parts on this diagram · 1 diagram in section
