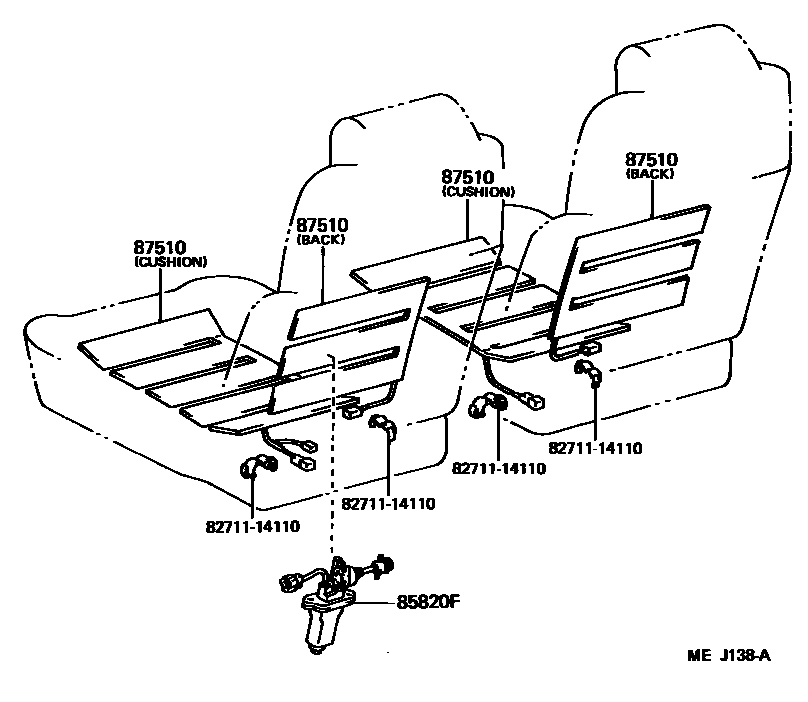

SEAT MOTOR & SEAT HEATER

85820FMOTOR ASSY, POWER SEAT (FOR SIDE SUPPORT)

main85820-20030iMA70198601-198808

87510HEATER ASSY, SEAT

main87510-14030iMA70..LHD..EUR198701-198808

LH,CUSHION

main87510-14040iMA70..LHD..EUR198701-198808

LH,BACK

main87510-14050iMA70..LHD..EUR198701-198808

RH,CUSHION

main87510-14060iMA70..LHD..EUR198701-198808

RH,BACK

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110

3 parts on this diagram · 1 diagram in section
