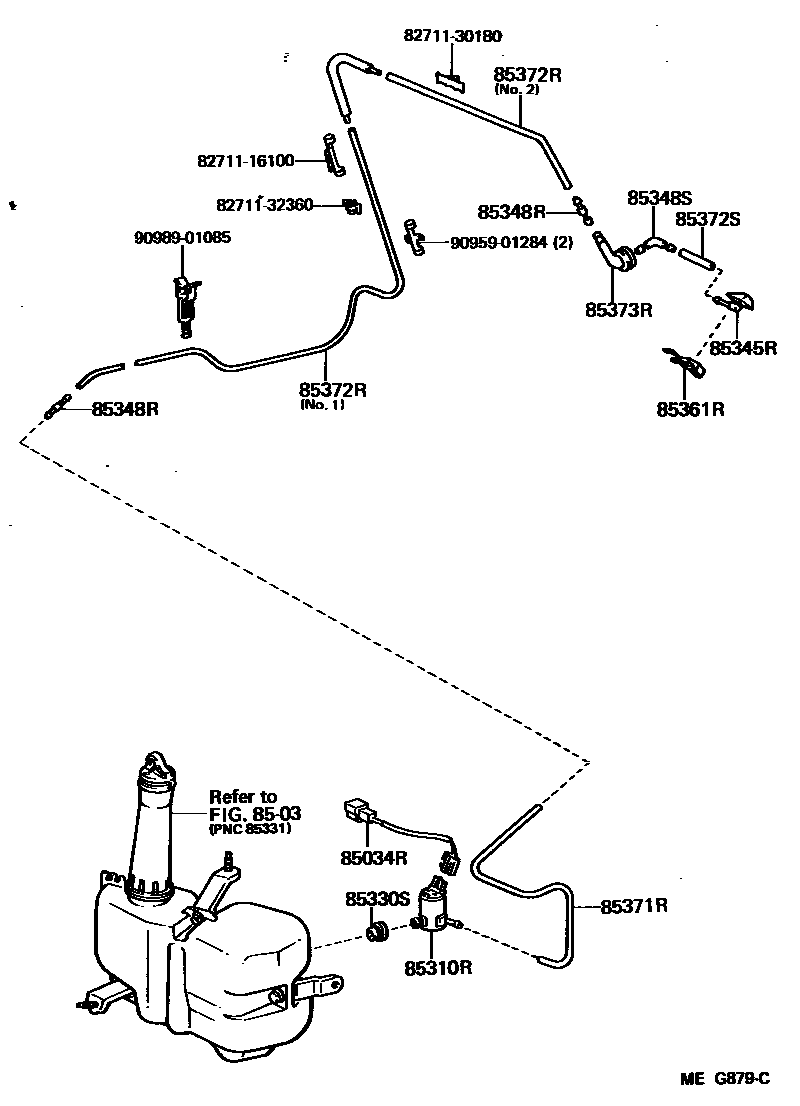

REAR WASHER

8503

85034RWIRE, REAR WASHER

85310RMOTOR ASSY, REAR WASHER

main85310-14110iMA70..EUR198601-198808

sub85310-16080

main85310-22080iMA70..ARL,GCC,GEN,SA198601-198808

85330SBUSH, REAR WASHER JAR

main90099-32089iMA70198601-198808

85345RNOZZLE, REAR WASHER

main85035-14340iMA70198601-198808

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iMA70198601-198808

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200iMA70198601-198808

85361RHOLDER, REAR WASHER

main85342-14160iMA70198601-198808

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33299iMA70198601-198808

L=1000

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90099-33543iMA70198601-198808

L=4985(*H,L=3540),NO.1

sub90099-33595

main90446-07001iMA70198601-198808

L=1800,NO.2

85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4

main90099-33299iMA70198601-198808

L=1000

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main85372-14030iMA70198601-198808

8271116100WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16100

8271130180WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-30180

8271132360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-32360

9095901284

main90959-01284

9098901085

main90989-01085

17 parts on this diagram · 1 diagram in section
