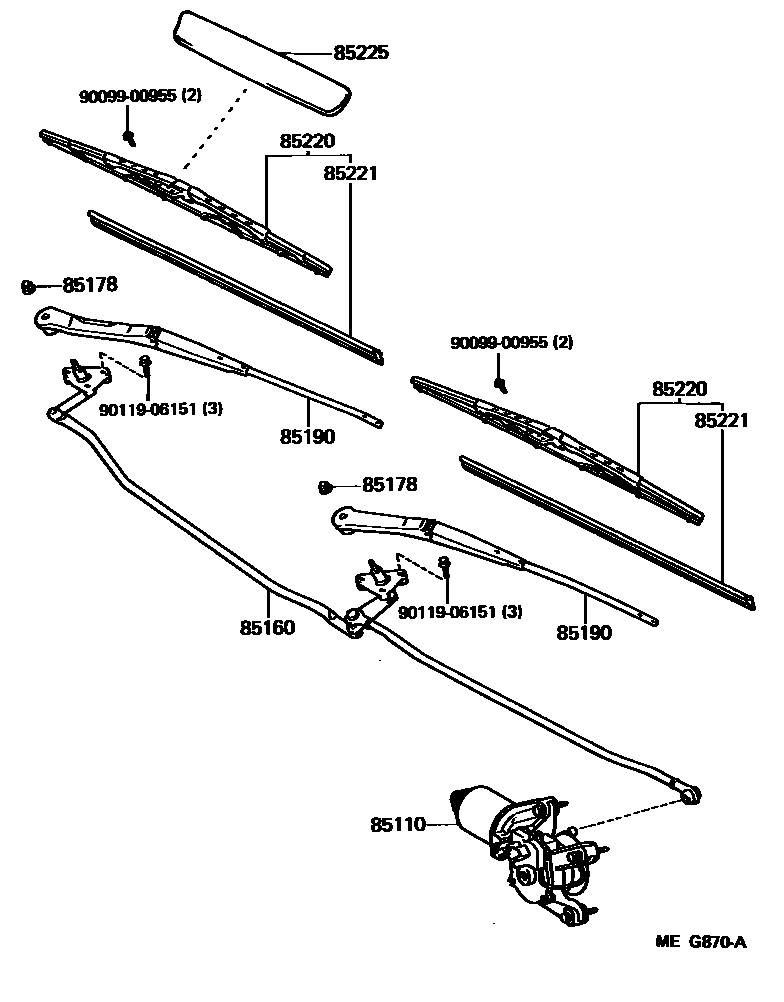

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-14210iMA70..RHD..(GEN,SA)198601-198803

main85110-14211iMA70..RHD..(GEN,SA)198803-198808

sub85110-14302

main85110-14230iMA70..LHD..EUR198603-198708

sub85110-14231

main85110-14260iMA70..RHD..(ARL,EUR)198601-198609

sub85110-14302

main85110-14261iMA70..RHD..(ARL,EUR)198609-198803

main85110-14262iMA70..RHD..(ARL,EUR)198803-198808

sub85110-14340

main85110-14270iMA70..LHD198601-198603

main85110-14271iMA70..LHD..(GCC,GEN)198803-198808

sub85110-14272

main85110-14320iMA70..LHD..EUR198708-198803

main85110-14321iMA70..LHD..EUR198803-198808

sub85110-14322

85160LINK ASSY, WINDSHIELD WIPER

main85160-14320iMA70..RHD..(ARL,GEN,SA)198601-198808

main85160-14330iMA70..LHD198601-198808

main85160-14340iMA70..RHD..EUG198601-198808

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08033×2iMA70198601-198808

85190ARM ASSY, WINDSHIELD WIPER

main85190-14610iMA70..RHD..(GEN,SA)198601-198808

RH

main85190-14620iMA70..ARL198601-198808

RH

main85190-14630iMA70..LHD..(GCC,GEN)198601-198808

LH

main85190-14640iMA70..RHD..EUG198601-198808

RH

main85190-14650iMA70..LHD..EUR198601-198808

LH

main85210-14190iMA70..RHD198601-198808

LH

main85210-14250iMA70..LHD198601-198808

RH

85220BLADE ASSY, WINDSHIELD WIPER

main85220-16540iMA70..LHD198601-198808

RH

main85220-16550iMA70..RHD198601-198808

LH

sub85220-16551

main85220-32310iMA70..RHD..(GEN,SA)198612-198808

RH

sub85220-32311

main85220-32480iMA70..RHD..(GEN,SA)198601-198612

RH

sub85220-32450

main85220-32490iMA70..LHD..(GCC,GEN)198601-198612

LH

sub85220-32860

main85220-32500iMA70..ARL198601-198808

RH

sub85220-32501

main85220-32570iMA70..RHD..EUG198601-198808

RH

sub85212-23040

main85220-32580iMA70..LHD..EUR198601-198808

LH

main85220-32590iMA70..ARL198612-198808

RH

sub85220-32591

main85220-32600iMA70..LHD..(GCC,GEN)198612-198808

LH

sub85220-32860

85221BLADE, WINDSHIELD WIPER

main85221-14220iMA70..RHD..(GEN,SA)198601-198612

RH

main85221-14230iMA70..ARL198601-198612

RH

main85221-14240iMA70..RHD198601-198612

LH

main85221-14250iMA70..LHD198601-198612

RH

main85221-14260iMA70..RHD..EUG198601-198808

RH

sub85221-30130

main85221-14270iMA70..RHD198612-198808

LH

main85221-14280iMA70..LHD198612-198808

RH

main85221-30110iMA70..RHD..(GEN,SA)198612-198808

RH

sub85221-30130

main85221-32050iMA70..ARL198612-198808

RH

sub85214-24H90

85225WING, WIPER BLADE

main85225-20230iMA70..RHD..EUG198601-198808

RH

main85225-20420iMA70..LHD..EUR198601-198808

LH

9009900955

main90099-00955

9011906151

main90119-06151

9 parts on this diagram · 1 diagram in section
