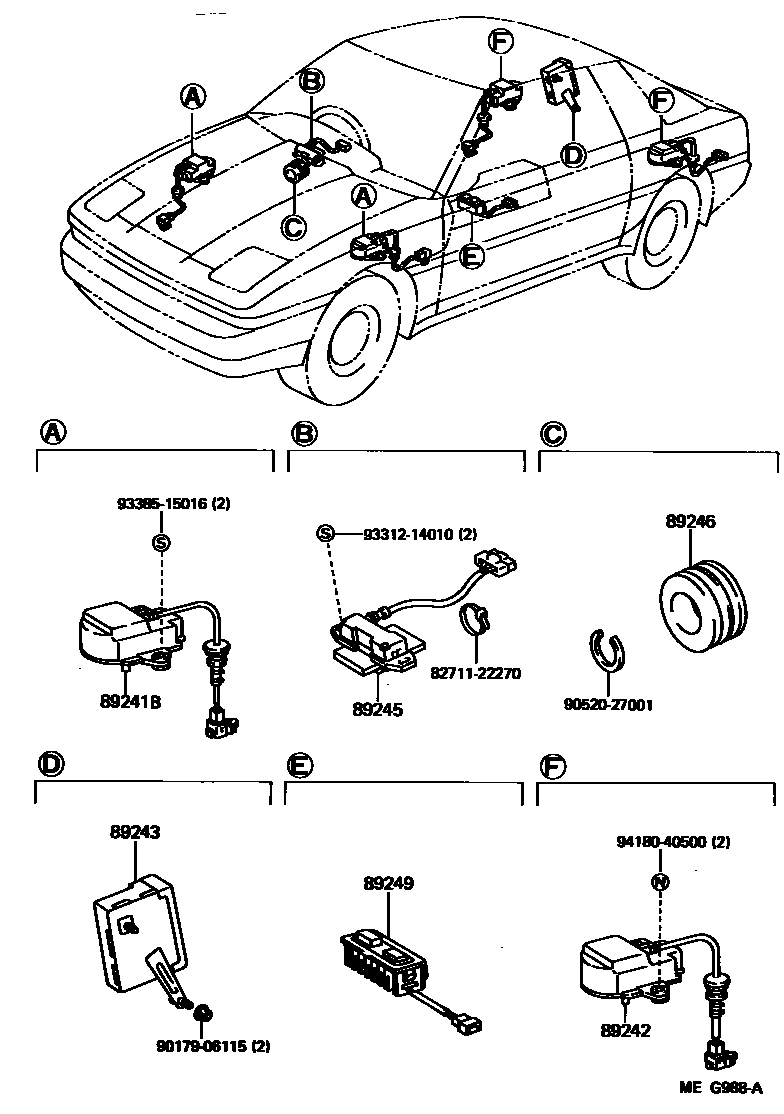

ELECTRONIC MODULATED SUSPENSION

89241BACTUATOR, ABSORBER CONTROL

main89241-24040iMA70..ARL198601-198808

89242ACTUATOR, ABSORBER CONTROL, RR

main89247-24020iMA70..ARL198601-198808

89243COMPUTER, ABSORBER CONTROL

main89243-14010iMA70..ARL198601-198808

89245SENSOR, STEERING

main89245-24020iMA70..ARL198601-198808

89246DISC, SENSOR STEERING

main89246-22010iMA70..ARL198601-198808

89249SWITCH, ABSORBER CONTROL

main89249-14010iMA70..ARL198601-198808

8271122270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22270

9017906115

main90179-06115

9052027001

main90520-27001

9331214010

main93312-14010

9338515016

main93385-15016

9418040500

main94180-40500

12 parts on this diagram · 1 diagram in section
