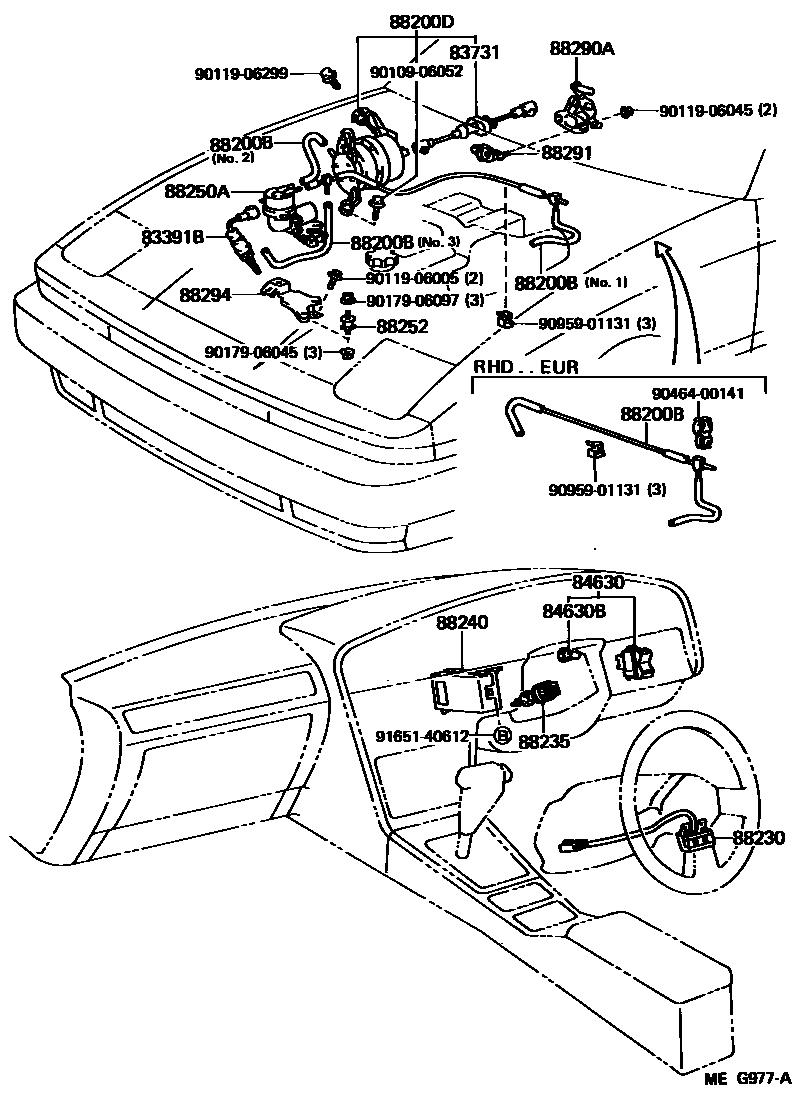

CRUISE CONTROL (AUTO DRIVE)

0001 1 0002 1 0003 1

83391BSWITCH, AUTO DRIVE VACUUM

main83391-14090iMA70..RHD..(ARL,GEN,SA)198601-198808

83731CABLE, CRUISE CONTROL

main83731-14030iMA70..RHD198601-198808

84630SWITCH ASSY, CRUISE CONTROL MAIN

main84630-14040iMA70198601-198701

sub84630-14041

main84630-14041iMA70198701-198808

84630BBULB(FOR CRUISE CONTROL SWITCH)

main84999-10200iMA70198601-198808

14V 0.56W

88200BHOSE, CRUISE CONTROL VACUUM

main88283-14010iMA70..RHD..(ARL,GEN,SA)198601-198808

NO.1

sub88283-14011

main88283-14020iMA70..RHD..EUG198601-198808

main88283-14030iMA70..TWT198708-198808

NO.1

main88283-14040iMA70..LHD..(GCC,GEN)198601-198808

main88283-14050iMA70..LHD..TWC..EUR198601-198808

main88283-14080iMA70..TWT198708-198808

NO.3

main90999-92002iMA70..TWT198803-198808

L=300,NO.2

main90999-92002iMA70..RHD..(ARL,GEN,SA)198803-198808

*H,L=200,MARK=#*,NO.3,NO.2

main95411-19930iMA70..RHD..(ARL,GEN,SA)198601-198803

*H,L=200,MARK=#*,NO.3,NO.2

sub90999-92002

main95411-19930iMA70..TWT198708-198803

*H,L=300,MARK=#*,NO.2

sub90999-92002

88200DACTUATOR ASSY, CRUISE CONTROL

main88200-14110iMA70..RHD198601-198803

sub88200-14111

main88200-14111iMA70..RHD198803-198808

sub88200-14170

main88200-14120iMA70..TWT198708-198803

sub88200-14121

main88200-14121iMA70..TWT198803-198808

sub88200-14180

main88200-14130iMA70..LHD198601-198703

sub88200-14131

main88200-14131iMA70..LHD..TWC198703-198808

sub88200-14190

88230SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) CONTROL

main88230-14120-02iMA70..ARL,GEN,SA198601-198808

MAROON,MAROON,TRIM3#

sub88230-14120

main88230-14120-03iMA70198601-198808

GRAY,MEDIUM GRAY,TRIM1#

sub88230-14120

main88230-14120-04iMA70198601-198808

BLUE,DEEP BLUE,TRIM8#

sub88230-14120

main88230-14120-05iMA70198601-198808

BEIGE,DARK BEIGE,TRIM4#

sub88230-14120

88235SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) RELEASE

main88280-20010iMA70..5F198601-198808

88240COMPUTER ASSY, CRUISE CONTROL

main88240-14111iMA70..RHD198601-198808

main88240-14121iMA70..TWT198708-198808

main88240-14131iMA70..LHD..TWC198601-198808

88250APUMP ASSY, CRUISE CONTROL

main88251-14110iMA70..RHD..(ARL,GEN,SA)198601-198803

sub88251-14111

main88251-14111iMA70..RHD..(ARL,GEN,SA)198803-198808

sub88251-14140

main88251-14120iMA70..TWT198708-198808

sub88251-14121

88252CUSHION, VACUUM PUMP

main88252-14110iMA70..RHD198601-198808

sub88252-26010

88290ABELLCRANK ASSY, CRUISE CONTROL

main88290-14020iMA70..RHD198601-198808

88291BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1

main88291-14070iMA70..RHD198601-198808

sub88291-14080

main88292-14020iMA70..TWT198708-198808

sub88292-14030

88294BRACKET, CRUISE CONTROL(AUTO DRIVE) MAIN SWITCH

main88294-14010iMA70..RHD198601-198808

sub88294-14020

9010906052

main90109-06052

9011906005

main90119-06005

9011906045

main90119-06045

9011906299

main90119-06299

9017906045

main90179-06045

9017906097

main90179-06097

9046400141

main90464-00141

9095901131

main90959-01131

9165140612

main91651-40612

23 parts on this diagram · 3 diagrams in section
