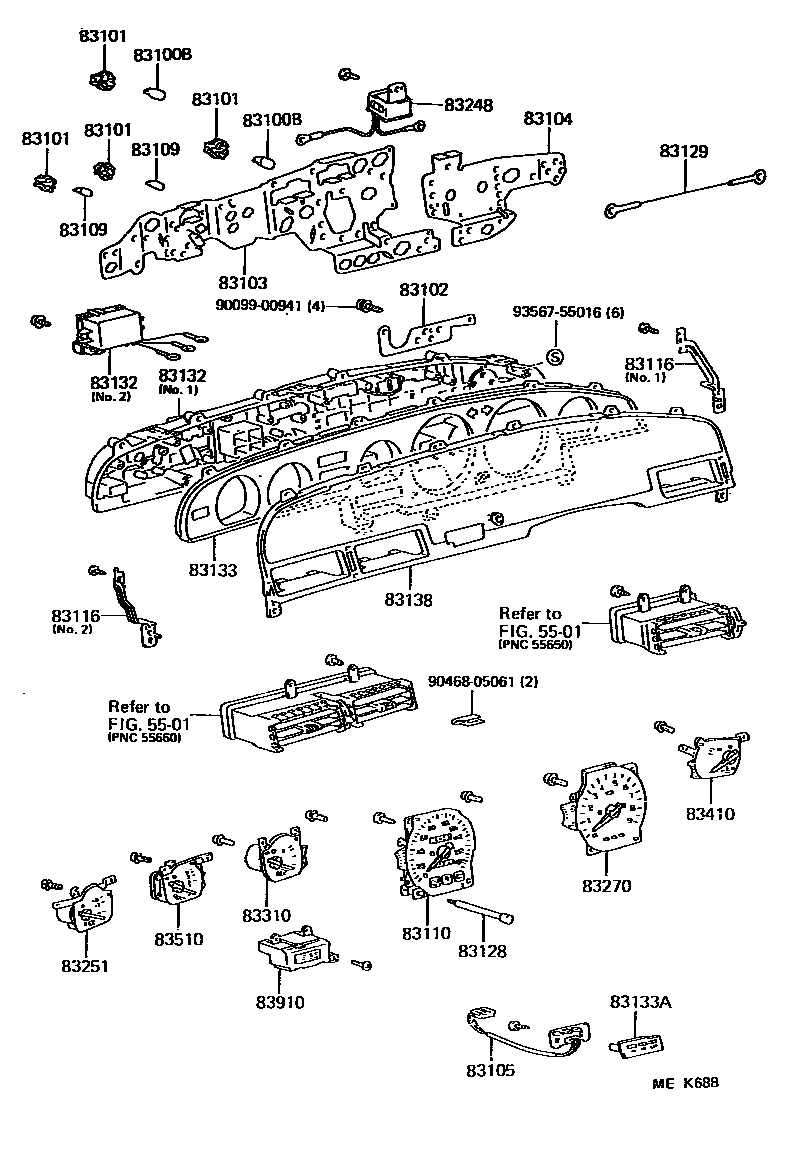

METER

0001 1 0002 1 0003 1 0004 1

5501

83100BBULB, COMBINATION METER, NO.1

main90981-11018×10iMA70198601-198808

12V 1.2W W/O SOCKET

main99132-12034×4iMA70198601-198808

12V 3.4W

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×4iMA70..TWC198601-198808

12V 3.4W

main83101-14040×8iMA70..TWC198601-198808

12V 1.4W

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-1J510iMA70..RHD198601-198808

main83247-1J530iMA70..LHD198601-198808

83103PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2

main83247-1D500iMA70..TWT198708-198808

W/RR FOG LAMP

main83247-1D520iMA70..TWT198708-198712

main83247-1J220iMA70..TWC..SDZ198601-198712

main83247-1J690iMA70..ARL198601-198808

main83247-1J710iMA70..ARL198601-198808

W/TEMS

main83247-1J730iMA70..RHD..(GEN,SA)198601-198808

main83247-1J750iMA70..RHD..EUG198601-198808

main83247-1J850iMA70..LHD..TWC..EUR198601-198808

W/RR FOG LAMP

main83247-1J870iMA70..LHD..GEN198601-198808

main83247-1J890iMA70..GCC198601-198808

83104PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.3

main83247-1B540iMA70..LHD..4FC198708-198808

main83247-1B560iMA70..LHD..5F198708-198808

main83247-1J060iMA70..LHD..5F..TWC..EUR198601-198808

main83247-1J080iMA70..LHD..4FC..TWC..EUR198601-198808

main83247-1J100iMA70..LHD..5F..(GCC,GEN)198601-198808

main83247-1J120iMA70..LHD..4FC..(GCC,GEN)198601-198808

main83247-1J630iMA70..RHD..5F198601-198808

main83247-1J650iMA70..RHD..4FC198601-198808

83105PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.4

main83247-1J140iMA70198601-198808

83109BULB, COMBINATION METER, NO.2

main83109-24010iMA70198601-198808

12V 1.4W,GREEN CAP

main83109-24020×4iMA70198601-198808

12V3.4W W(GREEN CAP)

83110SPEEDOMETER ASSY

main83110-14300iMA70..TWT198708-198808

main83110-14640iMA70..TWT198708-198808

W/RR FOG LAMP

main83110-1B120iMA70..ARL198601-198808

main83110-1B130iMA70..RHD..(GEN,SA)198601-198708

KM

main83110-1B131iMA70..RHD..(GEN,SA)198708-198808

KM

main83110-1B140iMA70..RHD..EUG198601-198808

KM

sub83110-1B141

main83110-1B170iMA70..LHD..EUR198601-198708

W/RR FOG LAMP

main83110-1B171iMA70..LHD..TWC..EUR198708-198808

W/RR FOG LAMP

main83110-1B180iMA70..LHD..GEN198601-198708

MILE & KM

main83110-1B181iMA70..LHD..GEN198708-198808

MILE & KM

main83110-1B190iMA70..GCC198601-198708

main83110-1B191iMA70..GCC198708-198808

main83110-1B220iMA70..SDZ198601-198708

main83110-1B221iMA70..TWC..SDZ198708-198808

main83110-1B230iMA70..LHD..GEN198601-198708

KM

main83110-1B231iMA70..LHD..GEN198708-198808

KM

main83110-1B240iMA70..RHD..GEN198601-198708

MILE & KM

main83110-1B241iMA70..RHD..GEN198708-198808

MILE & KM

83116BRACKET, SPEEDOMETER

main83116-14110iMA70..RHD198601-198808

NO.1

main83116-14130iMA70..RHD198601-198808

NO.2

main83116-14150iMA70..LHD198601-198808

NO.1

main83116-14170iMA70..LHD198601-198808

NO.2

83128KNOB, TRIP COUNTER

main83128-10260iMA70198601-198808

83129WIRE, METER

main83129-14250iMA70..TWT198708-198808

L=90

main83129-14270iMA70..TWT198708-198808

L=240

83132CASE, COMBINATION METER

main83132-1D740iMA70..5F..TWT198708-198808

NO.1

main83132-1D760iMA70..4FC..TWT198708-198808

NO.1

main83132-1D780iMA70..5F..TWT198708-198808

NO.1,W/RR FOG LAMP

main83132-1D800iMA70..4FC..TWT198708-198808

NO.1,W/RR FOG LAMP

main83132-1J590iMA70..5F..ARL198601-198808

NO.1

sub83132-1J550

main83132-1J610iMA70..4FC..ARL198601-198808

NO.1

sub83132-1J550

main83132-1J630iMA70..RHD..5F..(GEN,SA)198601-198808

NO.1

sub83132-1J550

main83132-1J650iMA70..RHD..4FC..GEN198601-198808

NO.1

sub83132-1J550

main83132-1J670iMA70..RHD..5F..(EUR,GEN)198601-198808

NO.1

sub83132-1J550

main83132-1J690iMA70..RHD..4FC..(EUR,GEN)198601-198808

NO.1

sub83132-1J550

main83132-1J710iMA70..5F..GCC198601-198808

NO.1

main83132-1J730iMA70..4FC..GCC198601-198808

NO.1

main83132-1J750iMA70..LHD..5F..TWC..EUR198601-198808

NO.1

main83132-1J770iMA70..LHD..4FC..TWC..EUR198601-198808

NO.1

main83132-1J790iMA70..LHD..5F..GEN198601-198808

NO.1

main83132-1J810iMA70..LHD..4FC..GEN198601-198808

NO.1

main83132-1J870iMA70..TWT198708-198808

NO.2

83133PLATE, COMBINATION METER, NO.1

main83133-14500iMA70..TWT198708-198808

main83133-1B530iMA70..ARL198601-198808

main83133-1B550iMA70..RHD..(EUR,GEN,SA)198601-198808

main83133-1B570iMA70..ARL198601-198808

W/TEMS

main83133-1B670iMA70..LHD..TWC198601-198808

83133APLATE, COMBINATION METER, NO.2

main83133-1B690iMA70198601-198808

83138GLASS, SPEEDOMETER

main83138-1B170iMA70..RHD198601-198808

main83138-1B190iMA70..LHD198601-198808

83248CHIME, SPEED WARNING

main83132-1D820iMA70..TWT198708-198808

main86640-14090iMA70..GCC198601-198808

83251METER, VOLTAGE

main83251-14650iMA70..RHD198601-198808

main83251-14670iMA70..LHD..TWC198601-198808

main83251-14690iMA70..TWT198708-198808

83270TACHOMETER ASSY, ENGINE

main83242-1B550iMA70..RHD..4FC198601-198808

main83242-1B570iMA70..RHD..5F198601-198808

main83242-1B590iMA70..LHD..5F..TWC..EUR198601-198808

main83242-1B650iMA70..LHD..4FC..(GCC,GEN)198601-198808

main83242-1B670iMA70..LHD..4FC..TWC..EUR198601-198808

main83242-1B690iMA70..LHD..5F..(GCC,GEN)198601-198808

main83242-1D150iMA70..4FC..TWT198708-198808

main83242-1D170iMA70..5F..TWT198708-198808

83310GAGE ASSY, FUEL RECEIVER

main83243-14750iMA70..RHD198601-198808

main83243-14770iMA70..SDZ198608-198808

main83243-14790iMA70..LHD198601-198608

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-1B170iMA70..RHD198601-198808

main83244-1B190iMA70..LHD..(EUR,GEN)198601-198808

main83244-1B210iMA70..GCC198601-198808

83510GAGE ASSY, OIL PRESSURE RECEIVER

main83246-14670iMA70..RHD198601-198808

main83246-14690iMA70..LHD198601-198808

83910CLOCK ASSY

main83910-14350iMA70..LHD198601-198808

main83910-14360iMA70..RHD198601-198808

9009900941

main90099-00941

9046805061

main90468-05061

9356755016

main93567-55016

26 parts on this diagram · 4 diagrams in section
