WIRING & CLAMP

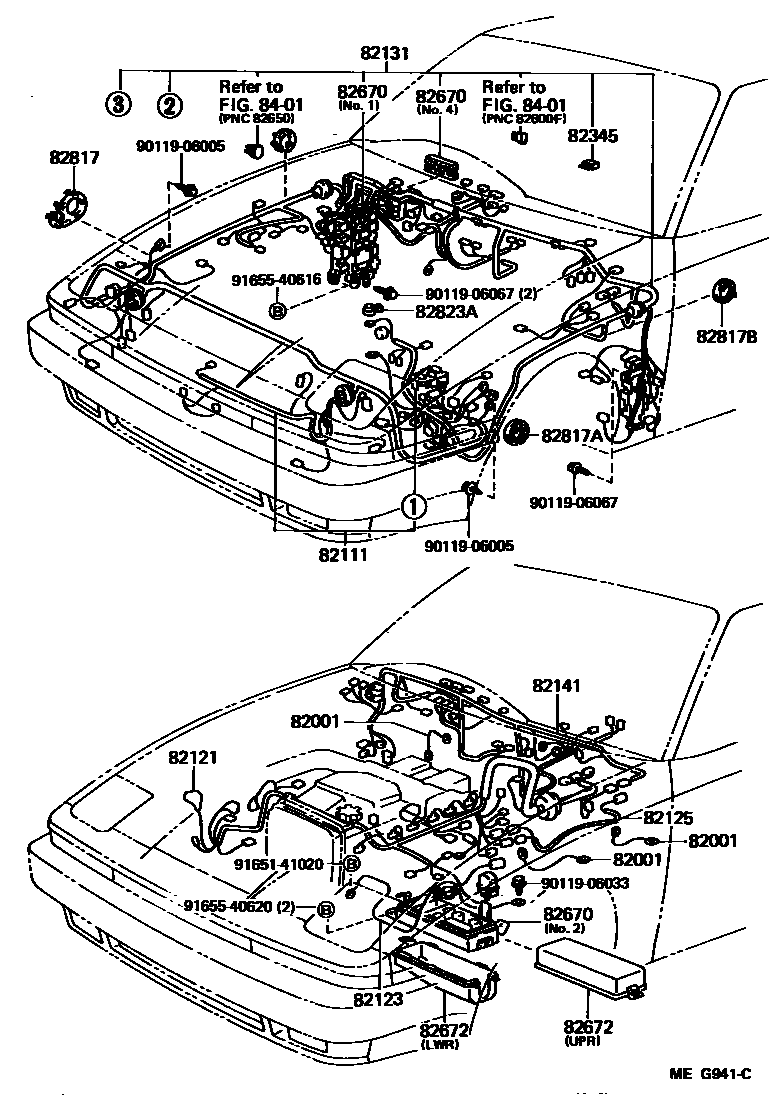

Parts diagram
82001CABLE, BOND, NO.1
main90980-07148i198601-198808
L=260,EXTENSION HOUSING--FLOOR
main90980-07176i198601-198808
L=300,CLUTCH HOUSING--FLOOR
main90980-07200i198601-198804
L=350,ENGINE--COWL PANEL
main90980-07268i198601-198808
L=290,EXTENSION HOUSING--FLOOR
main90980-07308i198804-198808
L=350,ENGINE--COWL PANEL
82111WIRE, ENGINE ROOM MAIN
main82111-14550i198601-198609
main82111-14551i198609-198701
main82111-14552i198701-198708
main82111-14553i198708-198808
main82111-14580i198601-198609
main82111-14581i198609-198708
main82111-14582i198708-198808
main82111-14590i198601-198609
main82111-14591i198609-198708
main82111-14592i198708-198808
main82111-14610i198601-198603
main82111-14611i198603-198609
main82111-14612i198609-198708
main82111-14613i198708-198808
main82111-14620i198601-198603
main82111-14621i198603-198609
main82111-14622i198609-198708
main82111-14623i198708-198808
main82111-1B060i198611-198708
ENGLAND SPEC
main82111-1B061i198708-198808
ENGLAND SPEC
main82111-1B090i198708-198808
82121WIRE, ENGINE
main82121-14290i198601-198702
main82121-14291i198702-198808
main82121-14300i198601-198604
main82121-14301i198604-198702
main82121-14302i198702-198808
main82121-14310i198601-198604
main82121-14311i198604-198702
main82121-14312i198702-198808
main82121-14460i198708-198808
82123WIRE, ENGINE, NO.3
main82123-24030i198601-198808
82125WIRE, TRANSMISSION
main82125-14160i198708-198808
main82125-24030i198601-198808
82131WIRE, COWL
main82131-14330i198601-198609
main82131-14331i198609-198708
main82131-14332i198708-198808
main82131-14350i198601-198708
main82131-14351i198708-198808
main82131-14380i198601-198603
main82131-14381i198605-198609
main82131-14382i198609-198708
main82131-14383i198708-198808
main82131-14390i198601-198603
main82131-14391i198605-198701
main82131-14392i198701-198708
main82131-14393i198708-198808
main82131-1B050i198601-198608
main82131-1B051i198608-198708
main82131-1B052i198708-198808
main82131-1B060i198601-198708
main82131-1B061i198708-198808
main82131-1B750i198603-198605
main82131-1B760i198603-198605
main82131-1B780i198611-198708
ENGLAND SPEC
main82131-1B781i198708-198808
ENGLAND SPEC
82141WIRE, INSTRUMENT PANEL
main82141-14170i198601-198808
main82141-14460i198601-198808
main82141-14840i198601-198808
main82141-14850i198601-198701
main82141-14851i198701-198708
main82141-14852i198708-198808
82345DIODE
main82345-12050i198601-198808
NO.1
main82345-20040i198708-198808
NO.2
main82345-20050i198701-198808
NO.3
main82345-32010×2i198601-198808
NO.4
main82345-32020i198601-198808
NO.5
82670BLOCK ASSY, JUNCTION, NO.1
main82670-14080i198601-198708
NO.1
main82670-14081i198708-198808
NO.1
main82670-14100i198601-198808
NO.1
main82670-14110i198708-198808
NO.1
main82670-24010i198601-198708
NO.1
main82671-14020i198601-198808
NO.4
main82671-24010i198601-198808
NO.2
82672COVER, JUNKTION BLOCK
main82672-14010i198601-198608
UPR
main82672-14020i198601-198708
UPR
main82672-14021i198708-198808
UPR
main82672-14030i198608-198808
UPR
main82672-14060i198708-198808
UPR
main82672-24010i198601-198808
LWR
82817PROTECTOR, WIRING HARNESS, NO.1
main82817-24140i198601-198808
main82817-24150i198708-198808
82817APROTECTOR, WIRING HARNESS, NO.2
main82817-24100i198601-198808
82817BPROTECTOR, WIRING HARNESS, NO.3
main82817-24110i198601-198808
82823ACAP, TERMINAL, NO.2
main82823-20040i198601-198608
main82823-22050i198608-198808
main82823-24020i198708-198808
8401
9011906005
main90119-06005
9011906033
main90119-06033
9011906067
main90119-06067
9165141020
main91651-41020
9165540616
main91655-40616
9165540620
main91655-40620

21 parts on this diagram · 7 diagrams in section
