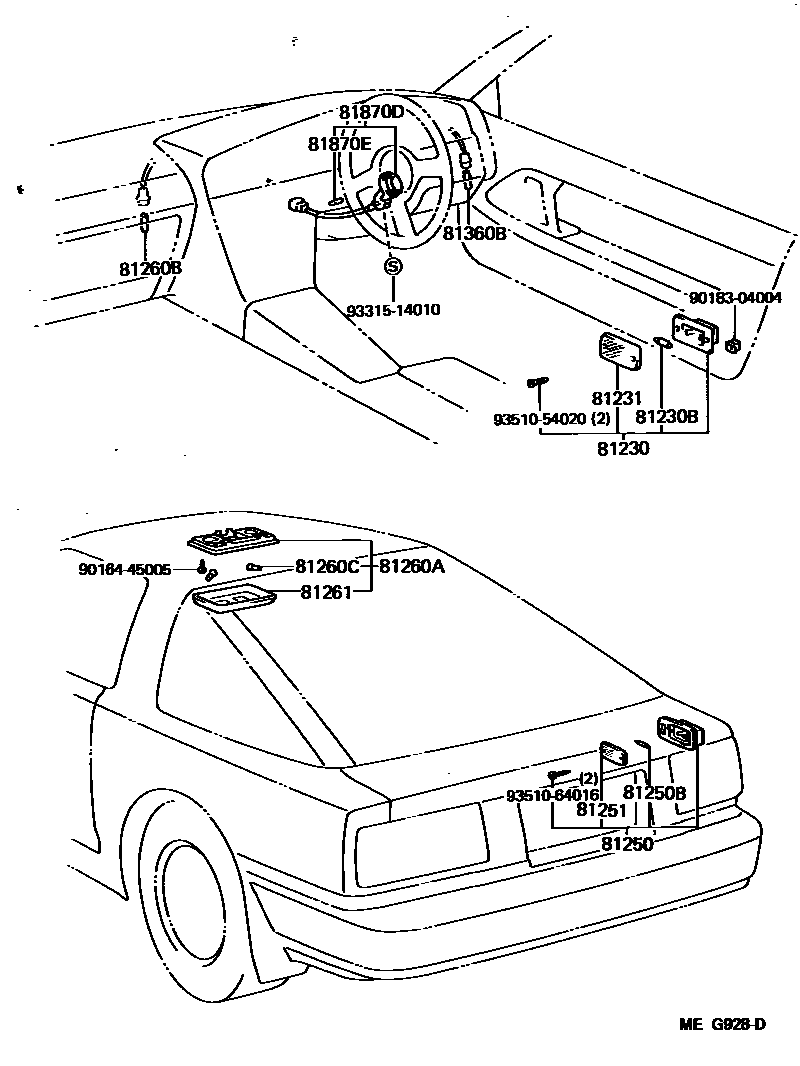

INTERIOR LAMP

81230LAMP ASSY, COURTESY

main81230-14040×2iMA70198601-198808

81230BBULB(FOR COURTESY LAMP)

main99132-13050×2iMA70198601-198808

12V 5W,12V 5W

81231LENS, COURTESY LAMP

main81231-30100×2iMA70198601-198808

81250LAMP ASSY, ROOM, NO.2

main81250-14030-14iMA70198601-198808

BLUE,BLUE,TRIM8#

main81250-14030-15iMA70198601-198808

BEIGE,DARK BEIGE,TRIM4#

main81250-14030-32iMA70198601-198808

MAROON,MAROON,TRIM3#

main81250-14030-33iMA70198601-198808

GRAY,MEDIUM GRAY,TRIM1#

81250BBULB, ROOM LAMP, NO.2

main99132-13050iMA70198601-198808

12V 5W,12V 5W

81251LENS, ROOM LAMP, NO.2

main81251-14030iMA70198601-198808

81260ALAMP ASSY, MAP

main81260-14070-02iMA70..ARL,GCC,GEN,SA198601-198808

MAROON,MAROON,TRIM3#

main81260-14070-03iMA70198601-198808

GRAY,MEDIUM GRAY,TRIM1#

main81260-14070-04iMA70198601-198808

BLUE,DEEP BLUE,TRIM8#

main81260-14070-05iMA70198601-198808

BEIGE,DARK BEIGE,TRIM4#

81260BBULB(FOR GLOVE BOX)

main90981-11014iMA70198601-198808

14V 1.4W,12V 1.4W

81260CBULB(FOR MAP LAMP)

main90981-12005×2iMA70198601-198808

12V 8W,12V 8W

81261LENS AND COVER, MAP LAMP

main81261-14070-02×2iMA70..ARL,GCC,GEN,SA198601-198808

MAROON,MAROON,TRIM3#

main81261-14070-03×2iMA70198601-198808

GRAY,MEDIUM GRAY,TRIM1#

main81261-14070-04×2iMA70198601-198808

BLUE,DEEP BLUE,TRIM8#

main81261-14070-05×2iMA70198601-198808

BEIGE,DARK BEIGE,TRIM4#

81360BBULB, STEP OR SPOT LAMP

main90981-11014iMA70198601-198808

14V 1.4W,12V 1.4W

81870DLAMP ASSY, KEY CYLINDER

main81870-14010iMA70198601-198808

81870EBULB, KEY CYLINDER LAMP

main90981-11018iMA70198601-198808

12V 1.2W W/O SOCKET

9016445005

main90164-45005

9018304004

main90183-04004

9331514010

main93315-14010

9351054020

main93510-54020

9351064016

main93510-64016

18 parts on this diagram · 1 diagram in section
