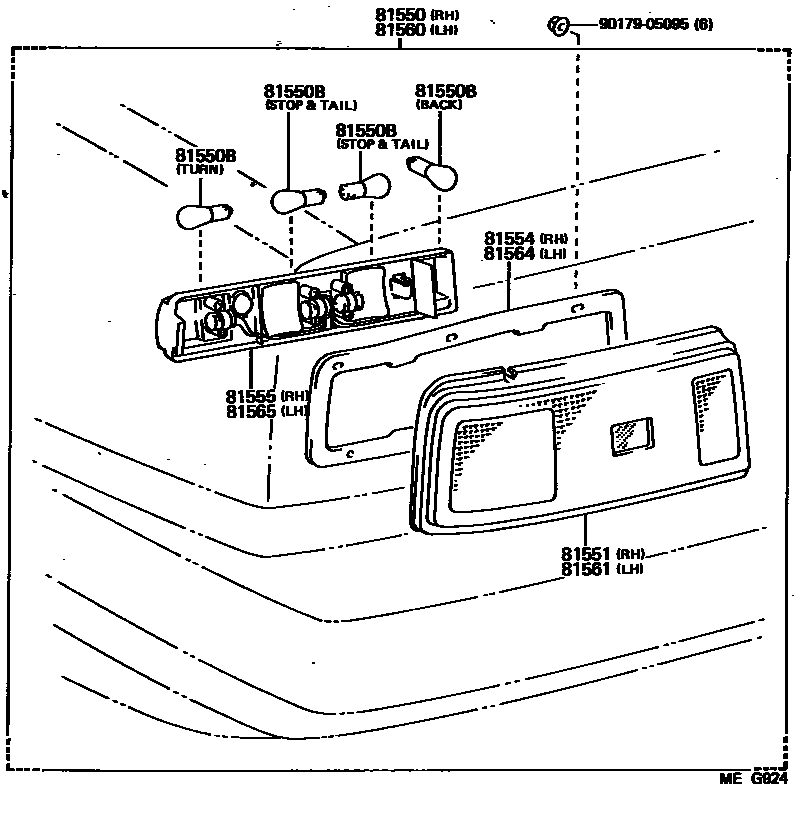

REAR COMBINATION LAMP

81550LAMP ASSY, REAR COMBINATION, RH

main81550-14580iMA70..ARL,GCC,GEN,SA198601-198808

main81550-14640iMA70..EUR198601-198808

sub81550-14641

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210iMA70..EUR,SA198601-198808

12V 21W,12V 21W(TURN OR BACK)

main99132-11230iMA70..ARL,GCC,GEN,SA198601-198808

12V 23W,12V 23W(TURN OR BACK)

main99132-21210iMA70198601-198808

12V 21/5W,12V 21/5W(STOP/TAIL)

81551LENS, REAR COMBINATION LAMP, RH

main81551-14580iMA70198601-198808

sub81551-14641

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81554-14580iMA70198601-198808

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-14580iMA70..ARL,GCC,GEN,SA198601-198808

main81555-14640iMA70..EUR198601-198808

sub81555-14641

81560LAMP ASSY, REAR COMBINATION, LH

main81560-14610iMA70..ARL,GCC,GEN,SA198601-198808

main81560-14640iMA70..EUR198601-198808

sub81560-14641

81561LENS, REAR COMBINATION LAMP, LH

main81561-14610iMA70198601-198808

sub81561-14641

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81554-14580iMA70198601-198808

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81565-14610iMA70..ARL,GCC,GEN,SA198601-198808

main81565-14640iMA70..EUR198601-198808

sub81565-14641

9017905095

main90179-05095

10 parts on this diagram · 1 diagram in section
