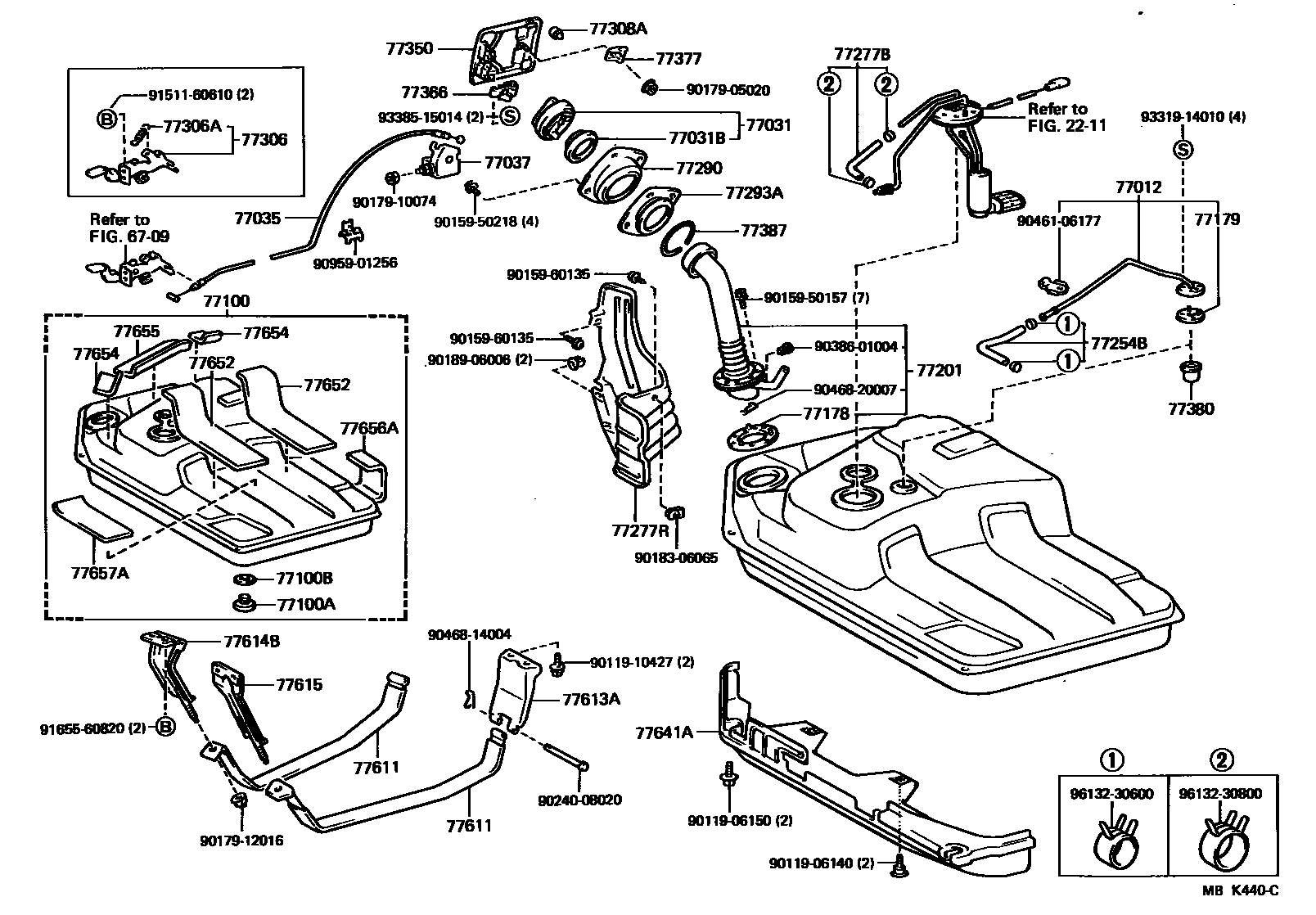

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

2211

6709

77012TUBE SUB-ASSY, FUEL TANK BREATHER

main77012-14050iMA70198601-198608

main77012-14051iMA70¥3,140198608-198612

sub77012-14060¥4,370

main77012-14060iMA70..EUR¥4,370198608-198808

77031CAP ASSY, FUEL TANK

main77310-12100iMA70..LHD..EUG;MA70..RHD..(EUR,GEN);MA70..LHD..(GCC,GEN)¥2,320198601-198808

main77310-16010iMA70..ARL;MA70..SDZ¥2,820198601-198706

sub77310-16011¥2,790

main77310-16011iMA70..ARL;MA70..SDZ¥2,790198706-198808

sub77310-12140¥2,790

77031BGASKET (FOR FUEL TANK CAP)

main77316-12050iMA70..LHD..EUG;MA70..RHD..(EUR,GEN);MA70..LHD..(GCC,GEN)¥310198601-198808

main77316-16010iMA70..ARL;MA70..SDZ¥660198601-198808

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-14200iMA70..LHD¥2,600198601-198808

main77035-14220iMA70..RHD¥1,690198601-198808

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-90K00iMA70¥1,610198601-198808

77100TANK ASSY, FUEL

main77001-19425iMA70¥59,400198601-198608

sub77001-19426¥59,400

sub77012-14051¥3,140

sub77380-14020¥1,240

main77001-19426iMA70¥59,400198608-198808

77100APLUG(FOR FUEL TANK)

main90341-20004iMA70¥360198601-198808

77100BGASKET(FOR FUEL TANK)

main90430-20007iMA70¥220198601-198808

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77169-14010iMA70¥230198601-198808

77179RETAINER, FUEL TANK MOUNTING, FRONT

main77179-14040iMA70¥860198601-198608

main77179-16010iMA70¥480198608-198808

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-14280iMA70..LHD..EUG;MA70..LHD..(GCC,GEN);MA70..RHD..(EUR,GEN,SA)¥18,000198601-198808

main77201-14290iMA70..ARL;MA70..SDZ¥19,600198601-198808

77254TUBE, FUEL EMISSION, NO.1

main77019-14110iMA70..SDZ198601-198608

main77019-14120iMA70..GCC198601-198608

main77019-14121iMA70..GCC¥7,400198608-198808

main77019-14130iMA70..ARL198601-198808

main77019-14140iMA70..SDZ¥7,400198608-198808

main77027-14020iMA70..LHD..EUG;MA70..LHD..GEN;MA70..RHD..(EUR,GEN,SA)198601-198702

main77027-14030iMA70..LHD..EUG;MA70..LHD..GEN;MA70..RHD..(EUR,GEN,SA)¥1,440198702-198808

77254BHOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)

main77209-14080iMA70¥820198601-198808

L=200

77277TUBE, FUEL RETURN, NO.1

main77255-14390iMA70¥4,370198601-198808

77277BHOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)

main77049-14040iMA70¥860198601-198808

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-14120iMA70¥1,610198601-198808

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77291-14050iMA70..LHD..EUG;MA70..LHD..(GCC,GEN);MA70..RHD..(EUR,GEN,SA)¥1,480198601-198808

main77291-14060iMA70..ARL;MA70..SDZ¥1,480198601-198808

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-20010iMA70¥1,200198601-198808

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-14030iMA70..RHD..(EUR,SA)¥3,130198601-198808

main77306-14040iMA70..LHD..EUR¥3,130198601-198808

77306ASPRING, FUEL LID OPEN LEVER

main90506-09004iMA70..EUR,SA¥200198601-198808

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-08013iMA70¥190198601-198808

sub90541-08009¥190

77350LID ASSY, FUEL FILLER OPENING

main77350-14050iMA70¥3,580198601-198808

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-24010iMA70¥260198601-198808

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-20030iMA70¥700198601-198808

77380VALVE ASSY, FUEL CUT OFF

main77380-14010iMA70198601-198608

main77380-14020iMA70¥1,240198608-198808

77387RING, FUEL INLET BOX

main77391-16011iMA70¥310198601-198808

77611BAND, FUEL TANK

main77601-14070iMA70¥2,490198601-198808

RH

main77602-14050iMA70¥2,490198601-198808

LH

77613ABRACKET, FUEL TANK BAND, NO.1

main77613-14050iMA70¥3,130198601-198808

77614BBRACKET, FUEL TANK BAND, NO.2

main77614-14030iMA70¥2,230198601-198808

77615BRACKET, FUEL TANK BAND, NO.3

main77615-14010iMA70¥2,230198601-198808

77641APROTECTOR, FUEL TANK, NO.1

main77641-14090iMA70..GCC¥3,410198601-198808

main77641-24010iMA70..ARL,EUR,GEN,SA¥2,690198601-198808

77652CUSHION, FUEL TANK, NO.1

main77651-14080iMA70¥1,290198601-198808

sub77651-14090¥1,390

77654CUSHION, FUEL TANK, NO.2

main77652-14100iMA70¥480198601-198808

sub77652-14110¥510

77655CUSHION, FUEL TANK, NO.3

main77653-14060iMA70¥600198601-198808

sub77653-14070¥620

77656ACUSHION, FUEL TANK, NO.4

main77654-14030iMA70¥670198601-198808

sub77654-14040¥510

77657ACUSHION, FUEL TANK, NO.5

main77655-14010iMA70¥940198601-198808

sub77655-14020¥850

9011906140

main90119-06140¥140

9011906150

main90119-06150¥250

9011910427

main90119-10427¥230

9015950157

main90159-50157¥120

9015950218

main90159-50218¥120

9015960135

main90159-60135¥330

9017905020

main90179-05020¥140

9017910074

main90179-10074¥110

9017912016

main90179-12016¥140

9018306065

main90183-06065¥110

9018906006

main90189-06006¥100

9024008020

main90240-08020¥250

9038601004

main90386-01004¥140

9046106177

main90461-06177¥590

9046814004

main90468-14004¥80

9046820007

main90468-20007¥190

9095901256

main90959-01256¥270

9151160610

main91511-60610¥120

9165560820

main91655-60820¥170

9331914010

main93319-14010¥70

9338515014

main93385-15014¥110

9613230600

main96132-30600¥200

9613230800

main96132-30800¥200

61 parts on this diagram · 5 diagrams in section
