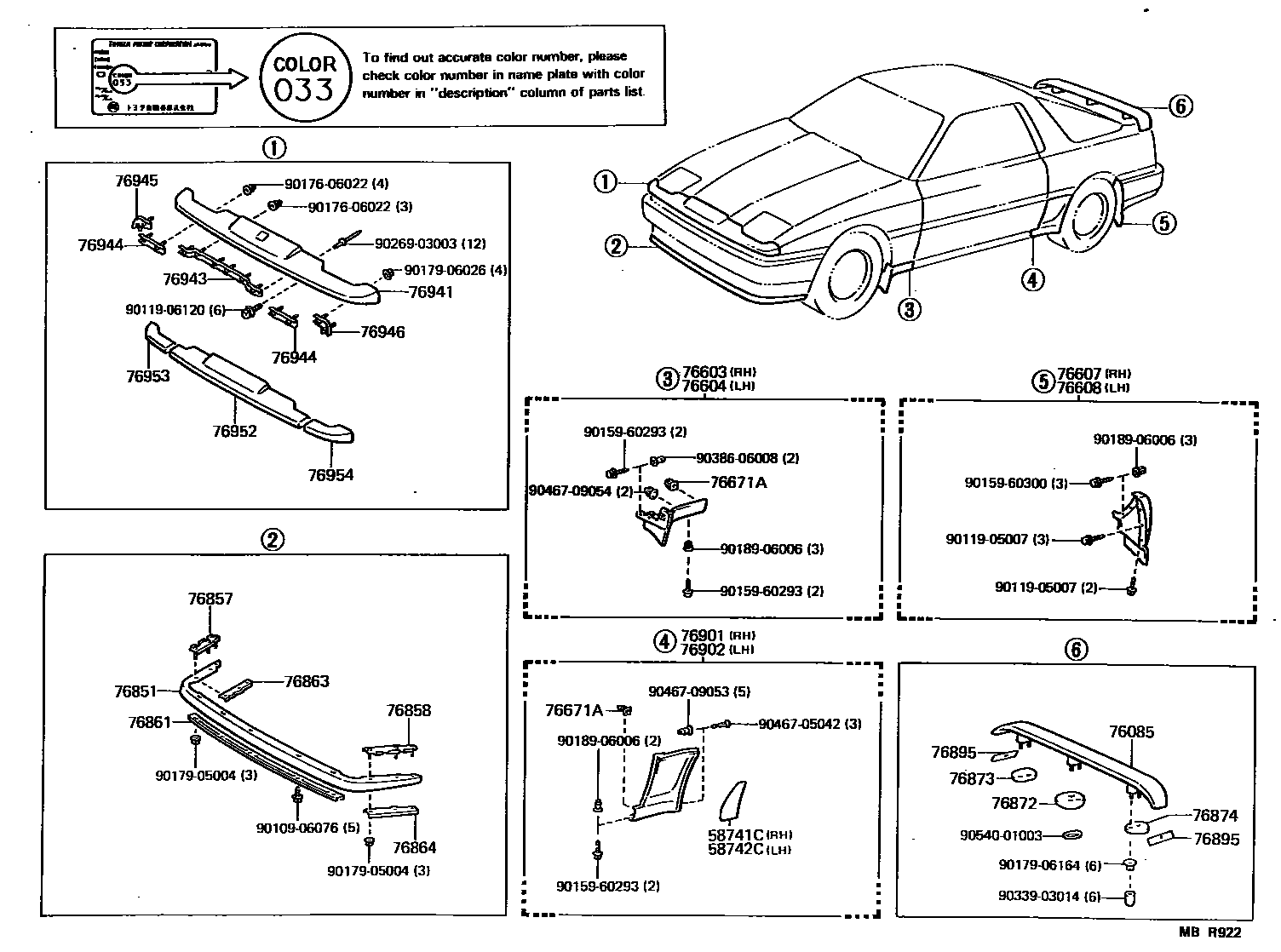

MUDGUARD & SPOILER

0001 1 0002 1

58741CPROTECTOR, QUARTER PANEL, RH

main58741-14040iMA70198601-198808

58742CPROTECTOR, QUARTER PANEL, LH

main58742-14040iMA70198601-198808

76085SPOILER SUB-ASSY, REAR

main76085-14900iMA70198601-198708

(040)

sub76085-14906

main76085-14901iMA70198601-198708

(24D,167,21C,4H,3E5)

sub76085-14906

main76085-14901iMA70198601-198708

(204,3H1,8D4,8D8,920,27A,8E3

sub76085-14906

main76085-14906iMA70198708-198808

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76603-19155-01iMA70198601-198808

BLACK-M,BLACK METALLIC,204

sub76603-19155

main76603-19155-02iMA70198601-198808

RED-M,RED MICA,3H1

sub76603-19155

main76603-19155-03iMA70198601-198808

SILVER-M,AMETHYST SILVER M,920

sub76603-19155

main76603-19155-06iMA70..EUR,GCC,GEN,SA198601-198708

BROWN-M,MEDIUM BROWN M,27A

sub76603-19155

main76603-19155-08iMA70198601-198808

WHITE,SUPER WHITE 2,040

sub76603-19155

main76603-19155-13iMA70..EUR,GCC,GEN,SA198708-198808

GRAY-M,GRAY M,167

sub76603-19155

main76603-19155-14iMA70198601-198608

BLUE-M,MEDIUM BLUE METALLIC,8D4

sub76603-19155

main76603-19155-22iMA70..EUR,GCC,GEN,SA198708-198808

SUPER RED 2,SUPER RED 2,3E5

sub76603-19155

main76603-19155-34iMA70198605-198808

LIGHT BLUE-M,LIGHT BLUE METALLIC,8D8 ,21C

sub76603-19155

main76603-19155-44iMA70198608-198808

BLUE MICA,BLUE MICA,8E3

sub76603-19155

main76603-19155-54iMA70..EUR,GCC,GEN,SA198608-198708

MEIDIUM BLUE-M,MEDIUM BLUE METALLIC,24D

sub76603-19155

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76604-19155-01iMA70198601-198808

BLACK-M,BLACK METALLIC,204

sub76604-19155

main76604-19155-02iMA70198601-198808

RED-M,RED MICA,3H1

sub76604-19155

main76604-19155-03iMA70198601-198808

SILVER-M,AMETHYST SILVER M,920

sub76604-19155

main76604-19155-06iMA70..EUR,GCC,GEN,SA198601-198708

BROWN-M,MEDIUM BROWN M,27A

sub76604-19155

main76604-19155-08iMA70198601-198808

WHITE,SUPER WHITE 2,040

sub76604-19155

main76604-19155-13iMA70..EUR,GCC,GEN,SA198708-198808

GRAY-M,GRAY M,167

sub76604-19155

main76604-19155-14iMA70198601-198608

BLUE-M,MEDIUM BLUE METALLIC,8D4

sub76604-19155

main76604-19155-22iMA70..EUR,GCC,GEN,SA198708-198808

SUPER RED 2,SUPER RED 2,3E5

sub76604-19155

main76604-19155-34iMA70198605-198808

LIGHT BLUE-M,LIGHT BLUE METALLIC,8D4 ,21C

sub76604-19155

main76604-19155-44iMA70198608-198808

BLUE MICA,BLUE MICA,8E3

sub76604-19155

main76604-19155-54iMA70..EUR,GCC,GEN,SA198608-198708

MEIDIUM BLUE-M,MEDIUM BLUE METALLIC,24D

sub76604-19155

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76607-19375iMA70198601-198808

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76608-19375iMA70198601-198808

76671ACLIP, FRONT FENDER MUDGUARD

main76671-14010iMA70198601-198808

sub76671-14020

76851COVER, FRONT SPOILER

main76851-14040iMA70..ARL,EUR198601-198808

76857RETAINER, FRONT SPOILER SIDE, RH

main76857-14020iMA70..ARL,EUR198601-198808

76858RETAINER, FRONT SPOILER SIDE, LH

main76858-14020iMA70..ARL,EUR198601-198808

76861RETAINER, FRONT SPOILER, LOWER NO.1

main76861-14020iMA70198601-198808

76863RETAINER, FRONT SPOILER, LOWER NO.2 RH

main76863-14020iMA70..ARL,EUR198601-198808

76864RETAINER, FRONT SPOILER, LOWER NO.2 LH

main76864-14020iMA70..ARL,EUR198601-198808

76872PROTECTOR, REAR SPOILER, NO.1

main76872-14030iMA70198601-198808

76873PROTECTOR, REAR SPOILER, NO.2

main76873-14030iMA70198601-198808

76874PROTECTOR, REAR SPOILER, NO.3

main76874-14030iMA70198601-198808

76895PROTECTOR, REAR SPOILER, NO.5

main76895-14020iMA70198601-198808

76901MUDGUARD SUB-ASSY, SIDE, RH

main76901-14010-01iMA70198601-198606

BLACK-M,BLACK METALLIC,204

sub76901-19016

main76901-14010-02iMA70198601-198610

RED-M,RED MICA,3H1

sub76901-19016

main76901-14010-03iMA70198601-198606

SILVER-M,AMETHYST SILVER M,920

sub76901-19016

main76901-14010-06iMA70..EUR,GCC,GEN,SA198601-198606

BROWN-M,MEDIUM BROWN M,27A

sub76901-19016

main76901-14010-08iMA70198601-198606

WHITE,SUPER WHITE 2,040

sub76901-19016

main76901-14010-14iMA70198601-198606

BLUE-M,MEDIUM BLUE METALLIC,8D4

sub76901-19016

main76901-14010-34iMA70198605-198606

LIGHT BLUE-M,LIGHT BLUE METALLIC,8D8

sub76901-19016

main76901-14011-01iMA70198606-198704

BLACK-M,BLACK METALLIC,204

sub76901-19015

sub76901-19016

main76901-14011-02iMA70198610-198704

RED-M,RED MICA,3H1

sub76901-19015

sub76901-19016

main76901-14011-03iMA70198606-198704

SILVER-M,AMETHYST SILVER M,920

sub76901-19015

sub76901-19016

main76901-14011-04iMA70198606-198704

LIGHT BLUE-M,LIGHT BLUE METALLIC,8D8

sub76901-19015

sub76901-19016

main76901-14011-06iMA70..EUR,GCC,GEN,SA198606-198704

BROWN-M,MEDIUM BROWN M,27A

sub76901-19015

sub76901-19016

main76901-14011-08iMA70198606-198704

WHITE,SUPER WHITE 2,040

sub76901-19015

sub76901-19016

main76901-14011-14iMA70198608-198704

BLUE MICA,BLUE MICA,8E3

sub76901-19015

sub76901-19016

main76901-14011-24iMA70..EUR,GCC,GEN,SA198608-198704

MEIDIUM BLUE-M,MEDIUM BLUE METALLIC,24D

sub76901-19015

sub76901-19016

main76901-14011-34iMA70198606-198608

BLUE-M,MEDIUM BLUE METALLIC,8D4

sub76901-19015

sub76901-19016

main76901-19015-01iMA70198704-198808

BLACK-M,BLACK M,204

sub76901-19016

main76901-19015-02iMA70198704-198808

RED-M,RED MICA,3H1

sub76901-19016

main76901-19015-03iMA70198704-198808

SILVER-M,AMETHYST SILVER M,920

sub76901-19016

main76901-19015-04iMA70198704-198808

LIGHT BLUE-M,LIGHT BLUE M,8D8

sub76901-19016

main76901-19015-06iMA70..EUR,GCC,GEN,SA198704-198708

BROWN-M,MEDIUM BROWN M,27A

sub76901-19016

main76901-19015-08iMA70198704-198808

WHITE,SUPER WHITE 2,040

sub76901-19016

main76901-19015-12iMA70..EUR,GCC,GEN,SA198708-198808

SUPER RED 2,SUPER RED 2,3E5

sub76901-19016

main76901-19015-13iMA70..EUR,GCC,GEN,SA198708-198808

GRAY-M,GRAY M,167

sub76901-19016

main76901-19015-14iMA70198704-198808

BLUE MICA,BLUE MICA,8E3

sub76901-19016

main76901-19015-24iMA70..EUR,GCC,GEN,SA198704-198708

MEIDIUM BLUE-M,MEDIUM BLUE M,24D

sub76901-19016

76902MUDGUARD SUB-ASSY, SIDE, LH

main76902-14010-01iMA70198601-198606

BLACK-M,BLACK METALLIC,204

sub76902-19016

main76902-14010-02iMA70198601-198606

RED-M,RED MICA,3H1

sub76902-19016

main76902-14010-03iMA70198601-198606

SILVER-M,AMETHYST SILVER M,920

sub76902-19016

main76902-14010-06iMA70..EUR,GCC,GEN,SA198601-198606

BROWN-M,MEDIUM BROWN M,27A

sub76902-19016

main76902-14010-08iMA70198601-198606

WHITE,SUPER WHITE 2,040

sub76902-19016

main76902-14010-14iMA70198601-198606

BLUE-M,MEDIUM BLUE METALLIC,8D4

sub76902-19016

main76902-14010-34iMA70198605-198606

LIGHT BLUE-M,LIGHT BLUE METALLIC,8D8

sub76902-19016

main76902-14011-01iMA70198606-198704

BLACK-M,BLACK METALLIC,204

sub76902-19015

sub76902-19016

main76902-14011-02iMA70198606-198704

RED-M,RED MICA,3H1

sub76902-19015

sub76902-19016

main76902-14011-03iMA70198606-198704

SILVER-M,AMETHYST SILVER M,920

sub76902-19015

sub76902-19016

main76902-14011-04iMA70198606-198704

LIGHT BLUE-M,LIGHT BLUE METALLIC,8D8

sub76902-19015

sub76902-19016

main76902-14011-06iMA70..EUR,GCC,GEN,SA198606-198704

BROWN-M,MEDIUM BROWN M,27A

sub76902-19015

sub76902-19016

main76902-14011-08iMA70198606-198704

WHITE,SUPER WHITE 2,040

sub76902-19015

sub76902-19016

main76902-14011-14iMA70198608-198704

BLUE MICA,BLUE MICA,8E3

sub76902-19015

sub76902-19016

main76902-14011-24iMA70..EUR,GCC,GEN,SA198608-198704

MEIDIUM BLUE-M,MEDIUM BLUE METALLIC,24D

sub76902-19015

sub76902-19016

main76902-14011-34iMA70198606-198608

BLUE-M,MEDIUM BLUE METALLIC,8D4

sub76902-19015

sub76902-19016

main76902-19015-01iMA70198704-198808

BLACK-M,BLACK M,204

sub76902-19016

main76902-19015-02iMA70198704-198808

RED-M,RED MICA,3H1

sub76902-19016

main76902-19015-03iMA70198704-198808

SILVER-M,AMETHYST SILVER M,920

sub76902-19016

main76902-19015-04iMA70198704-198808

LIGHT BLUE-M,LIGHT BLUE M,8D8

sub76902-19016

main76902-19015-06iMA70..EUR,GCC,GEN,SA198704-198708

BROWN-M,MEDIUM BROWN M,27A

sub76902-19016

main76902-19015-08iMA70198704-198808

WHITE,SUPER WHITE 2,040

sub76902-19016

main76902-19015-12iMA70..EUR,GCC,GEN,SA198708-198808

SUPER RED 2,SUPER RED 2,3E5

sub76902-19016

main76902-19015-13iMA70..EUR,GCC,GEN,SA198708-198808

GRAY-M,GRAY M,167

sub76902-19016

main76902-19015-14iMA70198704-198808

BLUE MICA,BLUE MICA,8E3

sub76902-19016

main76902-19015-24iMA70..EUR,GCC,GEN,SA198704-198708

MEIDIUM BLUE-M,MEDIUM BLUE M,24D

sub76902-19016

76941COVER, FRONT FACIA

main76941-14900iMA70198601-198808

W/O *HC

main76941-14901iMA70..EUR198601-198808

W/*HC

76943RETAINER, FRONT FACIA, NO.1

main76943-14010iMA70198601-198808

76944RETAINER, FRONT FACIA, NO.2

main76944-14010iMA70198601-198808

76945RETAINER, FRONT FACIA, NO.3 RH

main76945-14010iMA70198601-198808

76946RETAINER, FRONT FACIA, NO.3 LH

main76946-14010iMA70198601-198808

76952ABSORBER, FRONT FACIA, NO.1

main76952-14010iMA70198601-198808

76953ABSORBER, FRONT FACIA, NO.2 RH

main76953-14010iMA70198601-198808

76954ABSORBER, FRONT FACIA, NO.2 LH

main76954-14010iMA70198601-198808

9010906076

main90109-06076

9011905007

main90119-05007

9011906120

main90119-06120

9015960293

main90159-60293

9015960300

main90159-60300

9017606022

main90176-06022

9017905004

main90179-05004

9017906026

main90179-06026

9017906164

main90179-06164

9018906006

main90189-06006

9026903003

main90269-03003

9033903014

main90339-03014

9038606008

main90386-06008

9046705042

main90467-05042

9046709053

main90467-09053

9046709054

main90467-09054

9054001003

main90540-01003

45 parts on this diagram · 2 diagrams in section
