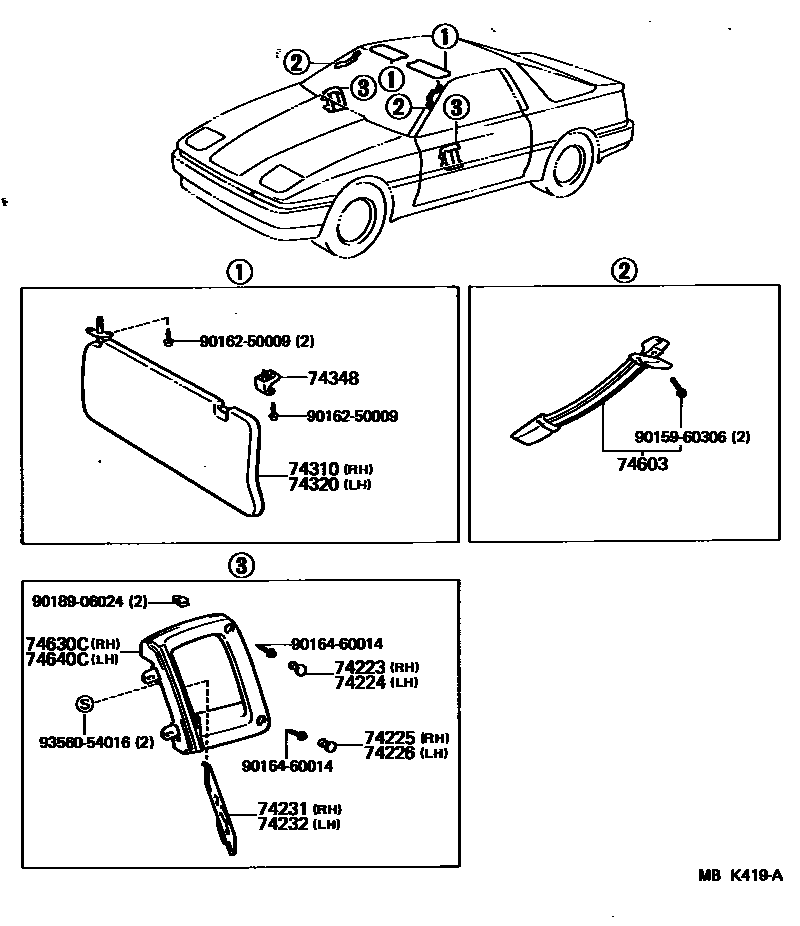

ARMREST & VISOR

74223CAP, DOOR ARMREST, RH

main74266-14040-02iMA70..ARL,GCC,GEN198601-198808

MAROON,MAROON,TRIM3#

main74266-14040-03iMA70198601-198808

GRAY,MEDIUM GRAY,TRIM1#

main74266-14040-04iMA70198601-198808

BLUE,DEEP BLUE,TRIM8#

main74266-14040-05iMA70198601-198808

BEIGE,DARK BEIGE,TRIM4#

74224CAP, DOOR ARMREST, LH

main74266-14040-02iMA70..ARL,GCC,GEN198601-198808

MAROON,MAROON,TRIM3#

main74266-14040-03iMA70198601-198808

GRAY,MEDIUM GRAY,TRIM1#

main74266-14040-04iMA70198601-198808

BLUE,DEEP BLUE,TRIM8#

main74266-14040-05iMA70198601-198808

BEIGE,DARK BEIGE,TRIM4#

74225CAP, DOOR ARMREST, REAR RH

main74267-14020-02iMA70..ARL,GCC,GEN198601-198808

MAROON,MAROON,TRIM3#

main74267-14020-03iMA70198601-198808

GRAY,MEDIUM GRAY,TRIM1#

main74267-14020-04iMA70198601-198808

BLUE,DEEP BLUE,TRIM8#

main74267-14020-05iMA70198601-198808

BEIGE,DARK BEIGE,TRIM4#

74226CAP, DOOR ARMREST, REAR LH

main74267-14020-02iMA70..ARL,GCC,GEN198601-198808

MAROON,MAROON,TRIM3#

main74267-14020-03iMA70198601-198808

GRAY,MEDIUM GRAY,TRIM1#

main74267-14020-04iMA70198601-198808

BLUE,DEEP BLUE,TRIM8#

main74267-14020-05iMA70198601-198808

BEIGE,DARK BEIGE,TRIM4#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-14100-02iMA70..LHD..(GCC,GEN)198601-198808

MAROON,MAROON,TRIM3#

main74231-14100-03iMA70..LHD198601-198808

GRAY,MEDIUM GRAY,TRIM1#

main74231-14100-04iMA70..LHD198601-198808

BLUE,DEEP BLUE,TRIM8#

main74231-14100-05iMA70..LHD..(EUR,GEN)198601-198808

BEIGE,DARK BEIGE,TRIM4#

main74231-14110-02iMA70..RHD..(ARL,GEN)198601-198808

MAROON,MAROON,TRIM3#

main74231-14110-03iMA70..RHD198601-198808

GRAY,MEDIUM GRAY,TRIM1#

main74231-14110-04iMA70..RHD198601-198808

BLUE,DEEP BLUE,TRIM8#

main74231-14110-05iMA70..RHD198601-198808

BEIGE,DARK BEIGE,TRIM4#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-14090-02iMA70..LHD..(GCC,GEN)198601-198808

MAROON,MAROON,TRIM3#

main74232-14090-03iMA70..LHD198601-198808

GRAY,MEDIUM GRAY,TRIM1#

main74232-14090-04iMA70..LHD198601-198808

BLUE,DEEP BLUE,TRIM8#

main74232-14090-05iMA70..LHD198601-198808

BEIGE,DARK BEIGE,TRIM4#

main74232-14100-02iMA70..RHD..(ARL,GEN)198601-198808

MAROON,MAROON,TRIM3#

main74232-14100-03iMA70..RHD198601-198808

GRAY,MEDIUM GRAY,TRIM1#

main74232-14100-04iMA70..RHD198601-198808

BLUE,DEEP BLUE,TRIM8#

main74232-14100-05iMA70..RHD198601-198808

BEIGE,DARK BEIGE,TRIM4#

74310VISOR ASSY, RH

main74310-14410-02iMA70..LHD..(GCC,GEN)198601-198808

W/MIRROR,MAROON,MAROON,TRIM3#

main74310-14410-03iMA70..LHD198601-198808

W/MIRROR,GRAY,MEDIUM GRAY,TRIM1#

main74310-14410-04iMA70..LHD198601-198808

W/MIRROR,BLUE,DEEP BLUE,TRIM8#

main74310-14410-05iMA70..LHD198601-198808

W/MIRROR,BEIGE,DARK BEIGE,TRIM4#

main74310-14450-02iMA70..ARL198601-198708

MAROON,MAROON,TRIM3#

main74310-14450-03iMA70..ARL198601-198708

GRAY,MEDIUM GRAY,TRIM1#

main74310-14450-04iMA70..ARL198601-198708

BLUE,DEEP BLUE,TRIM8#

main74310-14450-05iMA70..ARL198601-198708

BEIGE,DARK BEIGE,TRIM4#

main74310-14460-02iMA70..RHD..GEN198601-198808

MAROON,MAROON,TRIM3#

main74310-14460-03iMA70..SDZ198601-198808

GRAY,MEDIUM GRAY,TRIM1#

main74310-14460-04iMA70..RHD198601-198808

BLUE,DEEP BLUE,TRIM8#

main74310-14460-05iMA70..RHD..(EUR,GEN,SA)198601-198808

BEIGE,DARK BEIGE,TRIM4#

74320VISOR ASSY, LH

main74320-14490-02iMA70..LHD..(GCC,GEN)198601-198808

MAROON,MAROON,TRIM3#

main74320-14490-03iMA70..LHD198601-198808

GRAY,MEDIUM GRAY,TRIM1#

main74320-14490-04iMA70..LHD198601-198808

BLUE,DEEP BLUE,TRIM8#

main74320-14490-05iMA70..LHD198601-198808

BEIGE,DARK BEIGE,TRIM4#

main74320-14530-02iMA70..ARL198601-198708

MAROON,MAROON,TRIM3#

main74320-14530-03iMA70..ARL198601-198708

GRAY,MEDIUM GRAY,TRIM1#

main74320-14530-04iMA70..ARL198601-198708

BLUE,DEEP BLUE,TRIM8#

main74320-14530-05iMA70..ARL198601-198708

BEIGE,DARK BEIGE,TRIM4#

main74320-14540-02iMA70..RHD..GEN198601-198808

MAROON,MAROON,TRIM3#

main74320-14540-03iMA70..RHD..(EUR,GEN,SA)198601-198808

GRAY,MEDIUM GRAY,TRIM1#

main74320-14540-04iMA70..RHD..(EUR,GEN,SA)198601-198808

BLUE,DEEP BLUE,TRIM8#

main74320-14540-05iMA70..RHD..(EUR,GEN,SA)198601-198808

BEIGE,DARK BEIGE,TRIM4#

74348HOLDER, VISOR

main74348-20020-05iMA70198601-198808

BEIGE,DARK BEIGE,TRIM4#

sub74348-12020¥400

sub74348-20020¥400

main74348-20020-12iMA70..ARL,GCC,GEN198601-198808

MAROON,MAROON,TRIM3#

sub74348-12020¥400

sub74348-20020¥400

main74348-20020-13iMA70198601-198808

GRAY,MEDIUM GRAY,TRIM1#

sub74348-12020¥400

sub74348-20020¥400

main74348-20020-14iMA70198601-198808

BLUE,DEEP BLUE,TRIM8#

sub74348-12020¥400

sub74348-20020¥400

74603GRIP SUB-ASSY, ASSIST, FRONT

main74610-24020-02iMA70..ARL,GCC,GEN198601-198808

MAROON,MAROON,TRIM3#

main74610-24020-03iMA70198601-198808

GRAY,MEDIUM GRAY,TRIM1#

main74610-24020-04iMA70198601-198808

BLUE,DEEP BLUE,TRIM8#

main74610-24020-05iMA70198601-198808

BEIGE,DARK BEIGE,TRIM4#

74630CGRIP ASSY, DOOR ASSIST, RH

main74630-14020-02iMA70..ARL,GCC,GEN198601-198808

MAROON,MAROON,TRIM3#

main74630-14020-03iMA70198601-198808

GRAY,MEDIUM GRAY,TRIM1#

main74630-14020-04iMA70198601-198808

BLUE,DEEP BLUE,TRIM8#

main74630-14020-05iMA70..ARL,EUR,GEN,SA198601-198808

BEIGE,DARK BEIGE,TRIM4#

74640CGRIP ASSY, DOOR ASSIST, LH

main74640-14010-02iMA70..ARL,GCC,GEN198601-198808

MAROON,MAROON,TRIM3#

main74640-14010-03iMA70198601-198808

GRAY,MEDIUM GRAY,TRIM1#

main74640-14010-04iMA70198601-198808

BLUE,DEEP BLUE,TRIM8#

main74640-14010-05iMA70..ARL,EUR,GEN,SA198601-198808

BEIGE,DARK BEIGE,TRIM4#

9015960306

main90159-60306¥120

9016250009

main90162-50009¥120

9016460014

main90164-60014¥100

9018906024

main90189-06024¥110

9356054016

main93560-54016¥60

17 parts on this diagram · 1 diagram in section
