EPC Data

SEAT BELT & CHILD RESTRAINT SEAT

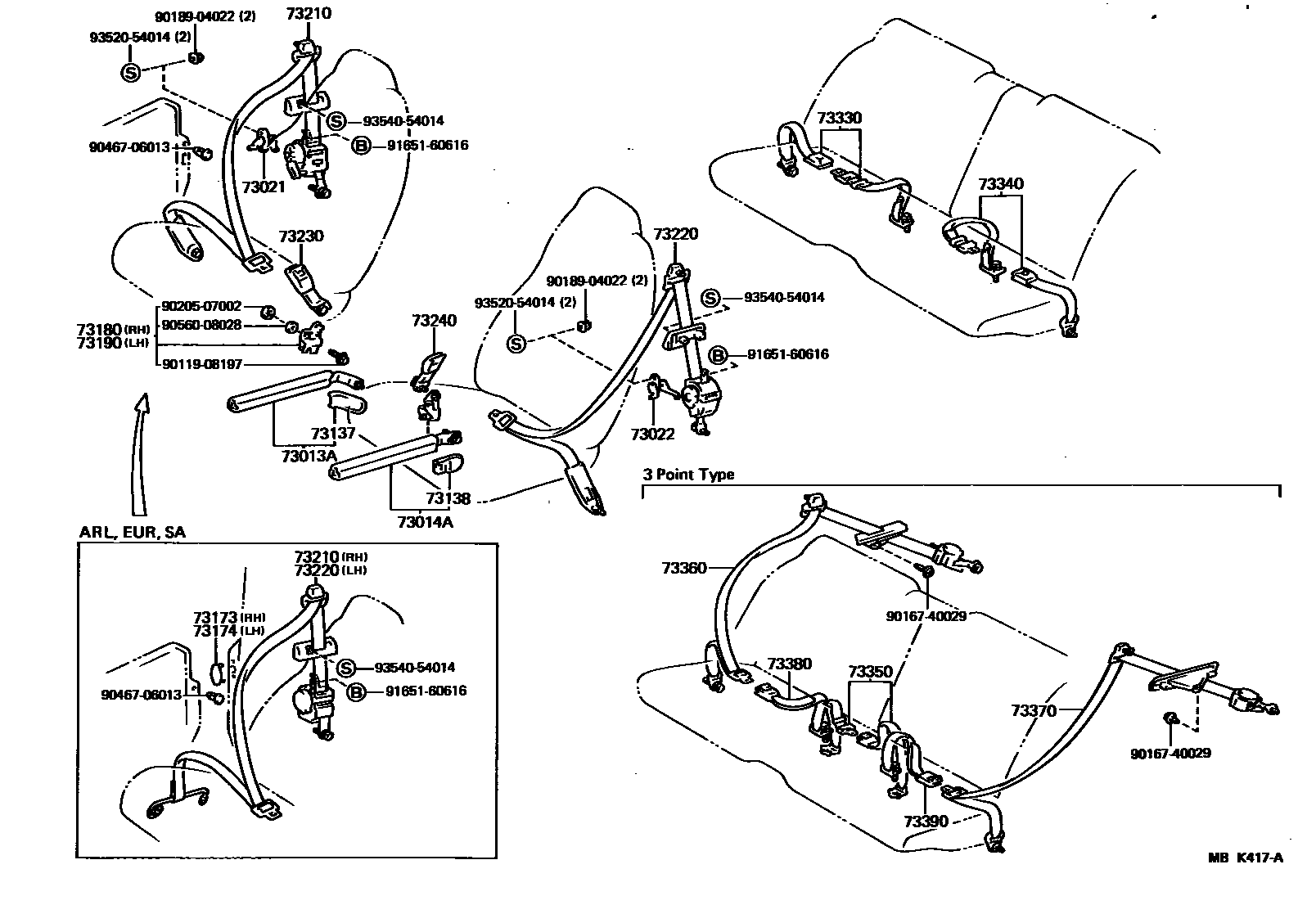

Parts diagram
73013APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, RH
main73013-14030-02i198601-198808
MAROON,MAROON,TRIM3#
sub73013-14030
main73013-14030-03i198601-198808
GRAY,MEDIUM GRAY,TRIM1#
sub73013-14030
main73013-14030-04i198601-198808
BLUE,DEEP BLUE,TRIM8#
sub73013-14030
main73013-14030-05i198601-198808
BEIGE,DARK BEIGE,TRIM4#
sub73013-14030
73014APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, LH
main73014-14030-02i198601-198808
MAROON,MAROON,TRIM3#
sub73014-14030
main73014-14030-03i198601-198808
GRAY,MEDIUM GRAY,TRIM1#
sub73014-14030
main73014-14030-04i198601-198808
BLUE,DEEP BLUE,TRIM8#
sub73014-14030
main73014-14030-05i198601-198808
BEIGE,DARK BEIGE,TRIM4#
sub73014-14030
73021LEVER SUB-ASSY, SEAT BELT COMFORT, RH
main73021-14030i198601-198804
sub73021-14031
main73021-14031i198804-198808
73022LEVER SUB-ASSY, SEAT BELT COMFORT, LH
main73022-14030i198601-198804
sub73022-14031
main73022-14031i198804-198808
73137CAP, FRONT SEAT BELT INNER ANCHOR, RH
main73137-14030-02i198601-198808
MAROON,MAROON,TRIM3#
main73137-14030-03i198601-198808
GRAY,MEDIUM GRAY,TRIM1#
main73137-14030-04i198601-198808
BLUE,DEEP BLUE,TRIM8#
main73137-14030-05i198601-198808
BEIGE,DARK BEIGE,TRIM4#
73138CAP, FRONT SEAT BELT INNER ANCHOR, LH
main73138-14030-02i198601-198808
MAROON,MAROON,TRIM3#
main73138-14030-03i198601-198808
GRAY,MEDIUM GRAY,TRIM1#
main73138-14030-04i198601-198808
BLUE,DEEP BLUE,TRIM8#
main73138-14030-05i198601-198808
BEIGE,DARK BEIGE,TRIM4#
73173COVER, FRONT SEAT BELT HOLE, RH
main73173-14010i198601-198808
main73173-14010i198702-198808
NEW ZEALAND SPEC
73174COVER, FRONT SEAT BELT HOLE, LH
main73173-14010i198601-198808
main73173-14010i198702-198808
NEW ZEALAND SPEC
73180BRACKET ASSY, SEAT BELT INNER ANCHOR, RH
main73011-14020i198601-198808
73190BRACKET ASSY, SEAT BELT INNER ANCHOR, LH
main73012-14020i198601-198808
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-14400-02i198601-198808
MAROON,MAROON,TRIM3#
main73210-14400-03i198601-198808
GRAY,MEDIUM GRAY,TRIM1#
main73210-14400-04i198601-198808
BLUE,DEEP BLUE,TRIM8#
main73210-14400-05i198601-198808
BEIGE,DARK BEIGE,TRIM4#
main73210-14440-02i198601-198708
MAROON,MAROON,TRIM3#
sub73210-14441
main73210-14440-03i198601-198708
GRAY,MEDIUM GRAY,TRIM1#
sub73210-14441
main73210-14440-04i198601-198708
BLUE,DEEP BLUE,TRIM8#
sub73210-14441
main73210-14441-02i198708-198808
MAROON,MAROON,TRIM3#
sub73210-14441
main73210-14441-03i198708-198808
GRAY,MIDIUM GRAY,TRIM1#
sub73210-14441
main73210-14441-04i198708-198808
BLUE,DEEP BLUE,TRIM8#
sub73210-14441
main73210-14450-03i198601-198610
GRAY,MEDIUM GRAY,TRIM1#
main73210-14450-04i198601-198610
BLUE,DEEP BLUE,TRIM8#
main73210-14450-05i198601-198610
BEIGE,DARK BEIGE,TRIM4#
main73210-14451-02i198702-198808
NEW ZEALAND SPEC,W/*SPS,MAROON,MAROON,TRIM3#
main73210-14451-03i198610-198808
GRAY,GRAY,TRIM1#
main73210-14451-03i198702-198808
NEW ZEALAND SPEC,W/*SPS,GRAY,GRAY,TRIM1#
main73210-14451-03i198610-198708
NORWAY SPEC,GRAY,GRAY,TRIM1#
main73210-14451-04i198610-198708
NORWAY SPEC,BLUE,DEEP BLUE,TRIM8#
main73210-14451-04i198610-198808
BLUE,DEEP BLUE,TRIM8#
main73210-14451-04i198702-198808
NEW ZEALAND SPEC,W/*SPS,BLUE,DEEP BLUE,TRIM8#
main73210-14451-05i198702-198808
NEW ZEALAND SPEC,W/*SPS,BEIGE,BEIGE,TRIM4#
main73210-14451-05i198610-198808
BEIGE,BEIGE,TRIM4#
main73210-14451-05i198610-198708
NORWAY SPEC,BEIGE,BEIGE,TRIM4#
main73210-14460-02i198601-198610
MAROON,MAROON,TRIM3#
main73210-14460-03i198601-198610
GRAY,MEDIUM GRAY,TRIM1#
main73210-14460-04i198601-198610
BLUE,DEEP BLUE,TRIM8#
main73210-14460-05i198601-198610
BEIGE,DARK BEIGE,TRIM4#
main73210-14461-02i198610-198808
MAROON,MAROON,TRIM3#
main73210-14461-03i198610-198808
GRAY,GRAY,TRIM1#
main73210-14461-04i198610-198808
BLUE,DEEP BLUE,TRIM8#
main73210-14461-05i198610-198808
BEIGE,BEIGE,TRIM4#
main73210-14470-02i198702-198808
NEW ZEALAND SPEC,MAROON,MAROON,TRIM3#
main73210-14470-03i198702-198808
NEW ZEALAND SPEC,GRAY,GRAY,TRIM1#
main73210-14470-03i198610-198808
GRAY,GRAY,TRIM1#
main73210-14470-04i198610-198808
BLUE,DEEP BLUE,TRIM8#
main73210-14470-04i198702-198808
NEW ZEALAND SPEC,BLUE,DEEP BLUE,TRIM8#
main73210-14470-05i198610-198808
BEIGE,BEIGE,TRIM4#
main73210-14470-05i198702-198808
NEW ZEALAND SPEC,BEIGE,BEIGE,TRIM4#
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-14340-02i198601-198808
MAROON,MAROON,TRIM3#
main73220-14340-03i198601-198808
GRAY,MEDIUM GRAY,TRIM1#
main73220-14340-04i198601-198808
BLUE,DEEP BLUE,TRIM8#
main73220-14340-05i198601-198808
BEIGE,DARK BEIGE,TRIM4#
main73220-14380-02i198601-198708
MAROON,MAROON,TRIM3#
sub73220-14381
main73220-14380-03i198601-198708
GRAY,MEDIUM GRAY,TRIM1#
sub73220-14381
main73220-14380-04i198601-198708
BLUE,DEEP BLUE,TRIM8#
sub73220-14381
main73220-14381-02i198708-198808
MAROON,MAROON,TRIM3#
sub73220-14381
main73220-14381-03i198708-198808
GRAY,MIDIUM GRAY,TRIM1#
sub73220-14381
main73220-14381-04i198708-198808
BLUE,DEEP BLUE,TRIM8#
sub73220-14381
main73220-14390-03i198601-198610
GRAY,MEDIUM GRAY,TRIM1#
main73220-14390-04i198601-198610
BLUE,DEEP BLUE,TRIM8#
main73220-14390-05i198601-198610
BEIGE,DARK BEIGE,TRIM4#
main73220-14391-02i198702-198808
NEW ZEALAND SPEC,W/*SPS,MAROON,MAROON,TRIM3#
main73220-14391-03i198610-198708
NORWAY SPEC,GRAY,GRAY,TRIM1#
main73220-14391-03i198610-198808
GRAY,GRAY,TRIM1#
main73220-14391-03i198702-198808
NEW ZEALAND SPEC,W/*SPS,GRAY,GRAY,TRIM1#
main73220-14391-04i198702-198808
NEW ZEALAND SPEC,W/*SPS,BLUE,DEEP BLUE,TRIM8#
main73220-14391-04i198610-198808
BLUE,DEEP BLUE,TRIM8#
main73220-14391-04i198610-198708
NORWAY SPEC,BLUE,DEEP BLUE,TRIM8#
main73220-14391-05i198610-198808
BEIGE,BEIGE,TRIM4#
main73220-14391-05i198610-198708
NORWAY SPEC,BEIGE,BEIGE,TRIM4#
main73220-14391-05i198702-198808
NEW ZEALAND SPEC,W/*SPS,BEIGE,BEIGE,TRIM4#
main73220-14400-02i198601-198610
MAROON,MAROON,TRIM3#
main73220-14400-03i198601-198610
GRAY,MEDIUM GRAY,TRIM1#
main73220-14400-04i198601-198610
BLUE,DEEP BLUE,TRIM8#
main73220-14400-05i198601-198610
BEIGE,DARK BEIGE,TRIM4#
main73220-14401-02i198610-198808
MAROON,MAROON,TRIM3#
main73220-14401-03i198610-198808
GRAY,GRAY,TRIM1#
main73220-14401-04i198610-198808
BLUE,DEEP BLUE,TRIM8#
main73220-14401-05i198610-198808
BEIGE,BEIGE,TRIM4#
main73220-14410-02i198702-198808
NEW ZEALAND SPEC,MAROON,MAROON,TRIM3#
sub73220-14410
main73220-14410-03i198610-198808
GRAY,GRAY,TRIM1#
sub73220-14410
main73220-14410-03i198702-198808
NEW ZEALAND SPEC,GRAY,GRAY,TRIM1#
sub73220-14410
main73220-14410-04i198610-198808
BLUE,DEEP BLUE,TRIM8#
sub73220-14410
main73220-14410-04i198702-198808
NEW ZEALAND SPEC,BLUE,DEEP BLUE,TRIM8#
sub73220-14410
main73220-14410-05i198610-198808
BEIGE,BEIGE,TRIM4#
sub73220-14410
main73220-14410-05i198702-198808
NEW ZEALAND SPEC,BEIGE,BEIGE,TRIM4#
sub73220-14410
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-14400-02i198601-198808
MAROON,MAROON,TRIM3#
sub73230-14400
main73230-14400-03i198601-198808
GRAY,MEDIUM GRAY,TRIM1#
sub73230-14400
main73230-14400-04i198601-198808
BLUE,DEEP BLUE,TRIM8#
sub73230-14400
main73230-14400-05i198601-198808
BEIGE,DARK BEIGE,TRIM4#
sub73230-14400
main73230-14410-02i198601-198808
MAROON,MAROON,TRIM3#
sub73230-14410
main73230-14410-03i198601-198808
GRAY,MEDIUM GRAY,TRIM1#
sub73230-14410
main73230-14410-04i198601-198808
BLUE,DEEP BLUE,TRIM8#
sub73230-14410
main73230-14420-02i198702-198808
NEW ZEALAND SPEC,MAROON,MAROON,TRIM3#
main73230-14420-03i198601-198808
GRAY,MEDIUM GRAY,TRIM1#
main73230-14420-03i198702-198808
NEW ZEALAND SPEC,GRAY,MEDIUM GRAY,TRIM1#
main73230-14420-04i198702-198808
NEW ZEALAND SPEC,BLUE,DEEP BLUE,TRIM8#
main73230-14420-04i198601-198808
BLUE,DEEP BLUE,TRIM8#
main73230-14420-05i198702-198808
NEW ZEALAND SPEC,BEIGE,DARK BEIGE,TRIM4#
main73230-14420-05i198601-198808
BEIGE,DARK BEIGE,TRIM4#
main73230-14430-02i198601-198610
MAROON,MAROON,TRIM3#
main73230-14430-03i198601-198610
GRAY,MEDIUM GRAY,TRIM1#
main73230-14430-04i198601-198610
BLUE,DEEP BLUE,TRIM8#
main73230-14430-05i198601-198610
BEIGE,DARK BEIGE,TRIM4#
main73230-14431-02i198610-198808
MAROON,MAROON,TRIM3#
main73230-14431-03i198610-198808
GRAY,MEDIUM GRAY,TRIM1#
main73230-14431-04i198610-198808
BLUE,DEEP BLUE,TRIM8#
main73230-14431-05i198610-198808
BEIGE,BEIGE,TRIM4#
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-14431-02i198610-198808
MAROON,MAROON,TRIM3#
main73230-14431-03i198610-198808
GRAY,MEDIUM GRAY,TRIM1#
main73230-14431-04i198610-198808
BLUE,DEEP BLUE,TRIM8#
main73230-14431-05i198610-198808
BEIGE,BEIGE,TRIM4#
main73240-14110-02i198601-198808
MAROON,MAROON,TRIM3#
main73240-14110-03i198601-198808
GRAY,MEDIUM GRAY,TRIM1#
main73240-14110-04i198601-198808
BLUE,DEEP BLUE,TRIM8#
main73240-14110-05i198601-198808
BEIGE,DARK BEIGE,TRIM4#
main73240-14121-02i198601-198808
MAROON,MAROON,TRIM3#
sub73240-14121
main73240-14121-03i198601-198808
GRAY,MEDIUM GRAY,TRIM1#
sub73240-14121
main73240-14121-04i198601-198808
BLUE,DEEP BLUE,TRIM8#
sub73240-14121
main73240-14130-02i198702-198808
NEW ZEALAND SPEC,MAROON,MAROON,TRIM3#
main73240-14130-03i198702-198808
NEW ZEALAND SPEC,GRAY,MEDIUM GRAY,TRIM1#
main73240-14130-03i198601-198808
GRAY,MEDIUM GRAY,TRIM1#
main73240-14130-04i198702-198808
NEW ZEALAND SPEC,BLUE,DEEP BLUE,TRIM8#
main73240-14130-04i198601-198808
BLUE,DEEP BLUE,TRIM8#
main73240-14130-05i198601-198808
BEIGE,DARK BEIGE,TRIM4#
main73240-14130-05i198702-198808
NEW ZEALAND SPEC,BEIGE,DARK BEIGE,TRIM4#
main73240-14140-02i198601-198610
MAROON,MAROON,TRIM3#
main73240-14140-03i198601-198610
GRAY,MEDIUM GRAY,TRIM1#
main73240-14140-04i198601-198610
BLUE,DEEP BLUE,TRIM8#
main73240-14140-05i198601-198610
BEIGE,DARK BEIGE,TRIM4#
73330BELT ASSY, REAR SEAT LAP TYPE, RH
main73330-14190-02i198601-198701
MAROON,MAROON,TRIM3#
main73330-14190-03i198601-198701
GRAY,MEDIUM GRAY,TRIM1#
main73330-14190-04i198601-198701
BLUE,DEEP BLUE,TRIM8#
main73330-14190-05i198601-198701
BEIGE,DARK BEIGE,TRIM4#
main73330-14191-02i198701-198808
MAROON,MAROON,TRIM3#
sub73330-14191
main73330-14191-03i198701-198808
GRAY,MEDIUM GRAY,TRIM1#
sub73330-14191
main73330-14191-04i198701-198808
BLUE,DEEP BLUE,TRIM8#
sub73330-14191
main73330-14191-05i198701-198808
BEIGE,DARK BEIGE,TRIM4#
sub73330-14191
73340BELT ASSY, REAR SEAT LAP TYPE, LH
main73330-14190-02i198601-198701
MAROON,MAROON,TRIM3#
main73330-14190-03i198601-198701
GRAY,MEDIUM GRAY,TRIM1#
main73330-14190-04i198601-198701
BLUE,DEEP BLUE,TRIM8#
main73330-14190-05i198601-198701
BEIGE,DARK BEIGE,TRIM4#
main73330-14191-02i198701-198808
MAROON,MAROON,TRIM3#
sub73330-14191
main73330-14191-03i198701-198808
GRAY,MEDIUM GRAY,TRIM1#
sub73330-14191
main73330-14191-04i198701-198808
BLUE,DEEP BLUE,TRIM8#
sub73330-14191
main73330-14191-05i198701-198808
BEIGE,DARK BEIGE,TRIM4#
sub73330-14191
73350BELT ASSY, REAR SEAT LAP TYPE, CENTER
main73350-14040-03i198601-198808
GRAY,MEDIUM GRAY,TRIM1#
main73350-14040-04i198601-198808
BLUE,DEEP BLUE,TRIM8#
main73350-14040-05i198601-198808
BEIGE,DARK BEIGE,TRIM4#
73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
main73360-14200-02i198601-198808
MAROON,MAROON,TRIM3#
main73360-14200-03i198601-198808
GRAY,MEDIUM GRAY,TRIM1#
main73360-14200-04i198601-198808
BLUE,DEEP BLUE,TRIM8#
main73360-14200-05i198601-198808
BEIGE,DARK BEIGE,TRIM4#
main73360-14210-02i198601-198808
MAROON,MAROON,TRIM3#
main73360-14210-03i198601-198808
GRAY,MEDIUM GRAY,TRIM1#
main73360-14210-04i198601-198808
BLUE,DEEP BLUE,TRIM8#
main73360-14210-05i198601-198808
BEIGE,DARK BEIGE,TRIM4#
73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
main73370-14110-02i198601-198808
MAROON,MAROON,TRIM3#
main73370-14110-03i198601-198808
GRAY,MEDIUM GRAY,TRIM1#
main73370-14110-04i198601-198808
BLUE,DEEP BLUE,TRIM8#
main73370-14110-05i198601-198808
BEIGE,DARK BEIGE,TRIM4#
main73370-14120-02i198601-198808
MAROON,MAROON,TRIM3#
main73370-14120-03i198601-198808
GRAY,MEDIUM GRAY,TRIM1#
main73370-14120-04i198601-198808
BLUE,DEEP BLUE,TRIM8#
main73370-14120-05i198601-198808
BEIGE,DARK BEIGE,TRIM4#
73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
main73380-14120-02i198601-198808
MAROON,MAROON,TRIM3#
main73380-14120-03i198601-198808
GRAY,MEDIUM GRAY,TRIM1#
main73380-14120-04i198601-198808
BLUE,DEEP BLUE,TRIM8#
main73380-14120-05i198601-198808
BEIGE,DARK BEIGE,TRIM4#
main73380-14130-02i198601-198808
MAROON,MAROON,TRIM3#
main73380-14130-03i198601-198808
GRAY,MEDIUM GRAY,TRIM1#
main73380-14130-04i198601-198808
BLUE,DEEP BLUE,TRIM8#
main73380-14130-05i198601-198808
BEIGE,DARK BEIGE,TRIM4#
73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
main73380-14120-02i198601-198808
MAROON,MAROON,TRIM3#
main73380-14120-03i198601-198808
GRAY,MEDIUM GRAY,TRIM1#
main73380-14120-04i198601-198808
BLUE,DEEP BLUE,TRIM8#
main73380-14120-05i198601-198808
BEIGE,DARK BEIGE,TRIM4#
main73380-14130-02i198601-198808
MAROON,MAROON,TRIM3#
main73380-14130-03i198601-198808
GRAY,MEDIUM GRAY,TRIM1#
main73380-14130-04i198601-198808
BLUE,DEEP BLUE,TRIM8#
main73380-14130-05i198601-198808
BEIGE,DARK BEIGE,TRIM4#
9011908197
main90119-08197
9016740029
main90167-40029
9018904022
main90189-04022
9020507002
main90205-07002
9046706013
main90467-06013
9056008028
main90560-08028
9165160616
main91651-60616
9352054014
main93520-54014
9354054014
main93540-54014

30 parts on this diagram · 1 diagram in section

SEAT BELT & CHILD RESTRAINT SEAT — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
