DECK BOARD & DECK TRIM COVER

64033AGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-14070-02iMA70..ARL,GCC,GEN198601-198808

MAROON,MAROON,TRIM3#

main64033-14070-03iMA70198601-198808

GRAY,MEDIUM GRAY,TRIM1#

main64033-14070-04iMA70198601-198808

BLUE,DEEP BLUE,TRIM8#

main64033-14070-05iMA70..ARL,EUR,GEN,SA198601-198808

BEIGE,DARK BEIGE,TRIM4#

64034AGRILLE SUB-ASSY, REAR SPEAKER, LH

main64034-14060-02iMA70..ARL,GCC,GEN198601-198808

MAROON,MAROON,TRIM3#

main64034-14060-03iMA70198601-198808

GRAY,MEDIUM GRAY,TRIM1#

main64034-14060-04iMA70198601-198808

BLUE,DEEP BLUE,TRIM8#

main64034-14060-05iMA70198601-198808

BEIGE,DARK BEIGE,TRIM4#

64076COVER, DECK TRIM SIDE JACK

main64076-14060-02iMA70..ARL,GCC,GEN198601-198808

MAROON,MAROON,TRIM3#

sub64076-14060

main64076-14060-03iMA70198601-198808

GRAY,MEDIUM GRAY,TRIM1#

sub64076-14060

main64076-14060-04iMA70198601-198808

BLUE,DEEP BLUE,TRIM8#

sub64076-14060

main64076-14060-05iMA70198601-198808

BEIGE,DARK BEIGE,TRIM4#

sub64076-14060

64323CLAMP, PACKAGE TRAY TRIM, NO.1

main64323-14030-02iMA70..ARL,GCC,GEN198601-198808

MAROON,MAROON,TRIM3#

sub64323-14030

main64323-14030-03iMA70198601-198808

GRAY,MEDIAM GRAY,TRIM1#

sub64323-14030

main64323-14030-04iMA70198601-198808

BLUE,DEEP BLUE,TRIM8#

sub64323-14030

main64323-14030-05iMA70198601-198808

BEIGE,DARK BEIGE,TRIM4#

sub64323-14030

64716DCOVER, DECK TRIM, REAR

main64716-14140-02iMA70..ARL,GCC,GEN198601-198808

MAROON,MAROON,TRIM3#

main64716-14140-03iMA70198601-198808

GRAY,MEDIUM GRAY,TRIM1#

main64716-14140-04iMA70198601-198808

BLUE,DEEP BLUE,TRIM8#

main64716-14140-05iMA70198601-198808

BEIGE,DARK BEIGE,TRIM4#

64716FPLUG, HOLE(FOR DECK TRIM REAR COVER)

main90950-01503-04iMA70198601-198808

BLUE,BLUE,TRIM8#

sub90950-01503

main90950-01503-05iMA70..ARL,EUR,GEN,SA198601-198808

BEIGE,DARK BEIGE,TRIM4#

sub90950-01503

main90950-01503-12iMA70..ARL,GCC,GEN198601-198808

MAROON,MAROON,TRIM3#

sub90950-01503

main90950-01503-13iMA70198601-198808

GRAY,MEDIUM GRAY,TRIM1#

sub90950-01503

64735COVER, DECK TRIM SIDE SERVICE HOLE

main64735-14020-02iMA70..ARL,GCC,GEN198601-198808

MAROON,MAROON,TRIM3#

sub64735-14020

main64735-14020-03iMA70198601-198808

GRAY,MEDIUM GRAY,TRIM1#

sub64735-14020

main64735-14020-04iMA70198601-198808

BLUE,DEEP BLUE,TRIM8#

sub64735-14020

main64735-14020-05iMA70..ARL,EUR,GEN,SA198601-198808

BEIGE,DARK BEIGE,TRIM4#

sub64735-14020

64735BSTOPPER, DECK TRIM SIDE SERVICE HOLE COVER

main64981-16021iMA70198601-198808

64735CKNOB, DECK TRIM SIDE SERVICE HOLE COVER

main64982-16020-10iMA70..ARL,GCC,GEN198601-198808

MAROON,MAROON,TRIM3#

sub64982-16020

main64982-16020-25iMA70..ARL,EUR,GEN,SA198601-198808

BEIGE,DARK BEIGE,TRIM4#

sub64982-16020

main64982-16020-44iMA70198601-198808

BLUE,DEEP BLUE,TRIM8#

sub64982-16020

main64982-16020-53iMA70198601-198808

GRAY,MEDIUM GRAY,TRIM1#

sub64982-16020

64745COVER, REAR COMBINATION LAMP SERVICE, RH

main64745-14060-02iMA70..ARL,GCC,GEN198601-198808

MAROON,MAROON,TRIM3#

sub64745-14060

main64745-14060-03iMA70198601-198808

GRAY,MEDIUM GRAY,TRIM1#

sub64745-14060

main64745-14060-04iMA70198601-198808

BLUE,DEEP BLUE,TRIM8#

sub64745-14060

main64745-14060-05iMA70198601-198808

BEIGE,DARK BEIGE,TRIM4#

sub64745-14060

64746COVER, REAR COMBINATION LAMP SERVICE, LH

main64746-14060-02iMA70..ARL,GCC,GEN198601-198808

MAROON,MAROON,TRIM3#

sub64746-14060

main64746-14060-03iMA70198601-198808

GRAY,MEDIUM GRAY,TRIM1#

sub64746-14060

main64746-14060-04iMA70198601-198808

BLUE,DEEP BLUE,TRIM8#

sub64746-14060

main64746-14060-05iMA70198601-198808

BEIGE,DARK BEIGE,TRIM4#

sub64746-14060

64750PANEL ASSY, DECK SIDE TRIM, RH

main64731-14110-02iMA70..LB..(ARL,GCC,GEN)198601-198808

MAROON,MAROON,TRIM3#

main64731-14110-03iMA70..LB198601-198808

GRAY,MEDIUM GRAY,TRIM1#

main64731-14110-04iMA70..LB198601-198808

BLUE,DEEP BLUE,TRIM8#

main64731-14110-05iMA70..LB..(ARL,EUR,GEN,SA)198601-198808

BEIGE,DARK BEIGE,TRIM4#

main64731-14120-02iMA70..SPR..(ARL,GCC,GEN)198604-198808

MAROON,MAROON,TRIM3#

main64731-14120-03iMA70..SPR198604-198808

GRAY,MEDIUM GRAY,TRIM1#

main64731-14120-04iMA70..SPR198604-198808

BLUE,DEEP BLUE,TRIM8#

main64731-14120-05iMA70..SPR198604-198808

BEIGE,DARK BEIGE,TRIM4#

64750APLUG, HOLE(FOR DECK SIDE TRIM PANEL)

main90950-01503-04iMA70198601-198808

BLUE,BLUE,TRIM8#

sub90950-01503

main90950-01503-05iMA70..ARL,EUR,GEN,SA198601-198808

BEIGE,DARK BEIGE,TRIM4#

sub90950-01503

main90950-01503-12iMA70..ARL,GCC,GEN198601-198808

MAROON,MAROON,TRIM3#

sub90950-01503

main90950-01503-13iMA70198601-198808

GRAY,MEDIUM GRAY,TRIM1#

sub90950-01503

64750FCLIP(FOR DECK SIDE TRIM PANEL)

main90467-07053-05iMA70..ARL,EUR,GEN,SA198601-198808

BEIGE,BEIGE,TRIM4#

sub90467-07053

main90467-07053-12iMA70..ARL,GCC,GEN198601-198808

MAROON,MAROON,TRIM3#

sub90467-07053

main90467-07053-13iMA70198601-198808

GRAY,MEDIUM GRAY,TRIM1#

sub90467-07053

main90467-07053-14iMA70198601-198808

BLUE,DEEP BLUE,TRIM8#

sub90467-07053

64760PANEL ASSY, DECK SIDE TRIM, LH

main64732-14110-02iMA70..LB..(ARL,GCC,GEN)198601-198808

MAROON,MAROON,TRIM3#

main64732-14110-03iMA70..LB198601-198808

GRAY,MEDIUM GRAY,TRIM1#

main64732-14110-04iMA70..LB198601-198808

BLUE,DEEP BLUE,TRIM8#

main64732-14110-05iMA70..LB..(ARL,EUR,GEN,SA)198601-198808

BEIGE,DARK BEIGE,TRIM4#

main64732-14120-02iMA70..SPR..(ARL,GCC,GEN)198604-198808

MAROON,MAROON,TRIM3#

main64732-14120-03iMA70..SPR198604-198808

GRAY,MEDIUM GRAY,TRIM1#

main64732-14120-04iMA70..SPR198604-198808

BLUE,DEEP BLUE,TRIM8#

main64732-14120-05iMA70..SPR..(ARL,EUR,GEN,SA)198604-198808

BEIGE,DARK BEIGE,TRIM4#

64770DCOVER ASSY, SPARE WHEEL

main64770-14070iMA70198601-198808

SPARE TIRE=225/50R16

main64770-14080iMA70..EUR198601-198808

SPARE TIRE=205/55R16

64778DPROTECTOR, SPARE WHEEL

main64778-14020iMA70198601-198808

64910HRETRACTOR SUB-ASSY, TONNEAU COVER

main64901-14040-02iMA70..ARL,GCC,GEN198601-198808

MAROON,MAROON,TRIM3#

sub64901-14040

main64901-14040-03iMA70198601-198808

GRAY,MEDIUM GRAY,TRIM1#

sub64901-14040

main64901-14040-04iMA70198601-198808

BLUE,DEEP BLUE,TRIM8#

sub64901-14040

main64901-14040-05iMA70..ARL,EUR,GEN,SA198601-198808

BEIGE,DARK BEIGE,TRIM4#

sub64901-14040

64926AHOOK, TONNEAU

main64926-14030-02iMA70..ARL,GCC,GEN198601-198808

MAROON,MAROON,TRIM3#

sub64926-14030

main64926-14030-03iMA70198601-198808

GRAY,MEDIUM GRAY,TRIM1#

sub64926-14030

main64926-14030-04iMA70198601-198808

BLUE,DEEP BLUE,TRIM8#

sub64926-14030

main64926-14030-05iMA70198601-198808

BEIGE,DARK BEIGE,TRIM4#

sub64926-14030

9016840055

main90168-40055

9018304031

main90183-04031

9018305016

main90183-05016

9018904057

main90189-04057

9046710012

main90467-10012

9353054025

main93530-54025

9354044016

main93540-44016

9356055025

main93560-55025

9356614512

main93566-14512

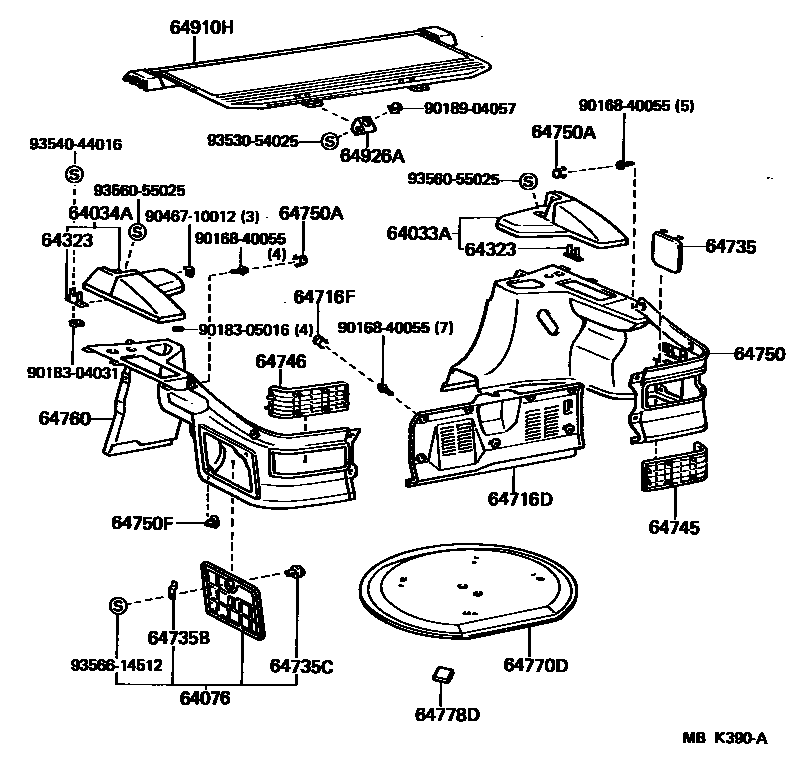

28 parts on this diagram · 1 diagram in section
